Home / Products / ATF45-RB
Roller Blinds
ATF45-RB
High Torque Motor
Black-out Type
Features
Features
- Perfect fit for large and high windows.
- Black-out operation is also available with Side Rails.
ATF45-RB’s Unique Features
high torque motor
With a high torque motor, ATF45-RB performs a quiet operation.
Fit for large window
Fit for a large or high window: up to 2.5 m (98″) in width or 5 m (197″) in height.
black-out type is available
A black-out type is available with Side Rails.

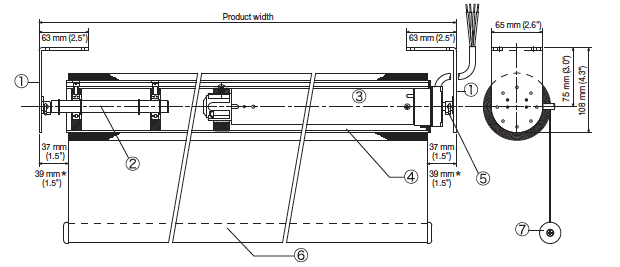

Structure Drawing
Standard type
Dimensions for the ratio of the width and height is 1 : 3 or more

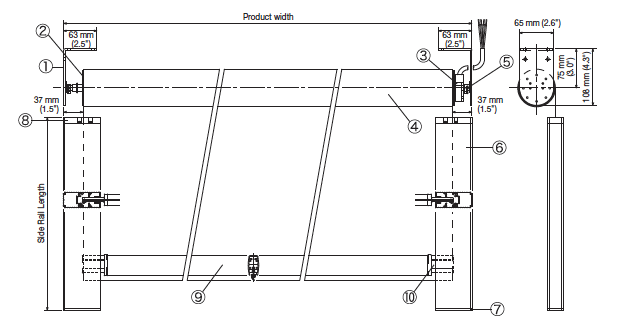

Black-out type
Dimensions for the ratio of the width and height is 1 : 3 or more
Components and Materials
Standard type
| No. | Components | Material | |
| ① | ATF45 Side Bracket | Steel | |
| ② | ATF45-N Pipe End | Steel + Zinc die-cast | |
| ③ | ATF45-N Tubular Motor Set | Motor | — |
| Drive | Polyacetal resin | ||
| Limit Crown | Polyacetal resin | ||
| ④ | ATF45 Roller Pipe Φ 60 | Aluminum | |
| ⑤ | Split Pin | Steel | |
| ⑥ | Weight Bar | Stainless steel | |
| ⑦ | Weight Bar Cap | Stainless+Rubber | |
Black-out type
| ||||||||||||||||||||||||||||||||||||||||||||||||
Motor Specifications
|
|
Allowable Size
| Standard type | Black Out type | |
| Width | 800–2500 mm (31–98″) | 800–2000 mm (31–79″) |
| Height | 800–5000 mm (31–197″) | 800–3000 mm (31–118″) |
| Max Surface area | 10 m2 (12 yd22) * | 6 m2 (7 yd2) |
Product Weight
5.8 kg (13 lb)
(width: 2000 mm/79″ without screen)
- Allowable size is different by the screen fabric. Please refer to “Typical Roll-up Diameter” and Rated Torque.
Typical Roll-up Diameter
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

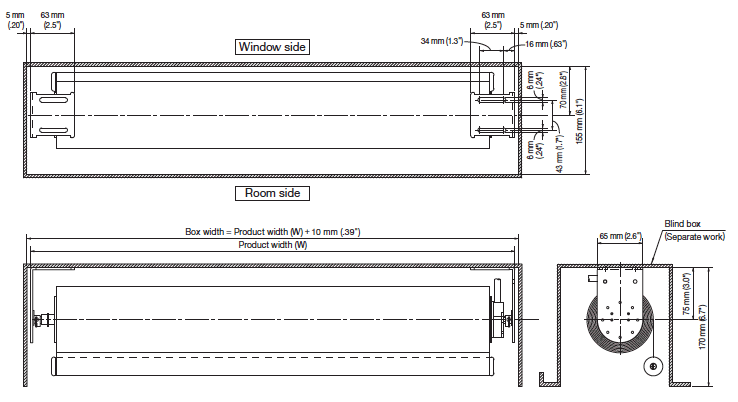

Overall Structure Drawing
Standard Type
Black-out type
Basic Wiring and Connecting Diagram
Single Operation

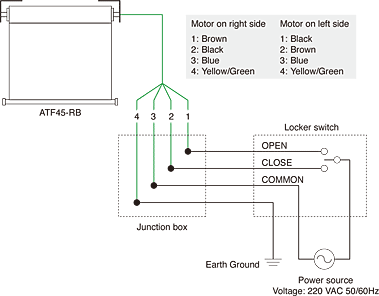

Basic Wiring Diagram

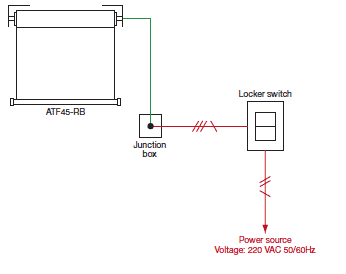

Basic Connecting Diagram

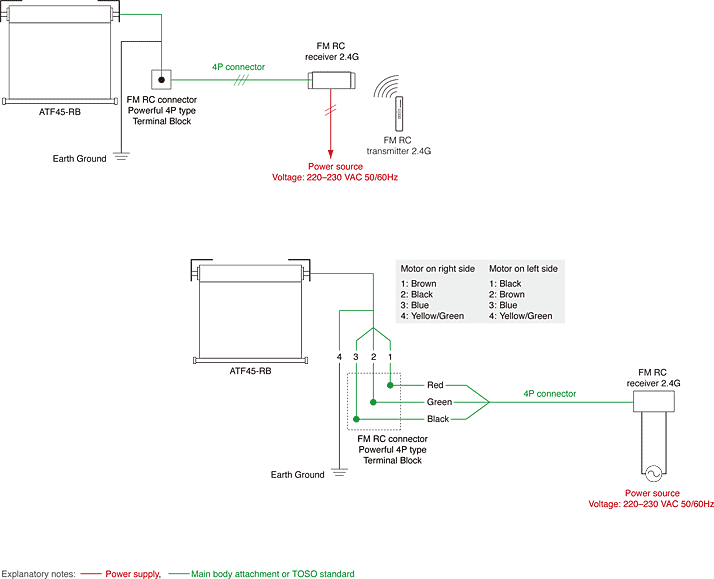

FM Remote Operation
Simultaneous Operation
Basic Wiring Diagram
Basic Connecting Diagram

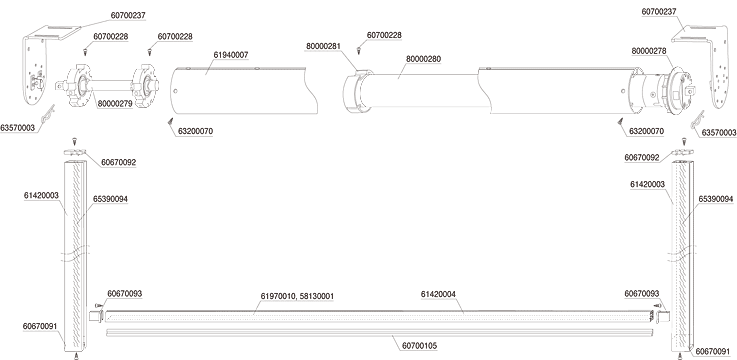

Exploded View
Standard type
Black-out type
ATF45-RB Parts
| Product Name | Product Code | Product Name | Product Code | Product Name | Product Code | ||
| ATF45 Roller Pipe ∅ 60 6,000 mm  | 61940007 | Weight Bar Cap | 60670035 | Side Rail Guide for Black-out  | 60670092 | ||
ATF45 Side Bracket | 60700237 | Pile Tape PB 60140-2PNBR | 65390094 | Weight Bar for Black-out 3,200 mm  | 61420004 | ||
ATF45-N Tubular Motor | 80000280 | Split Pin | 63570003 | Weight Bar Cushion for Black-out 3,200 mm  | 60700105 | ||
ATF45-N Limit Crown | 80000278 | Tapping Screw TS 3 x 10 | 63200070 | Weight Bar Cap for Black-out  | 60670093 | ||
ATF45-N Drive | 80000281 | Tapping Screw for Plastic ∅ 4.0 x 8  | 60700228 | Plastic strip 2,000 mm (Only necessary for Black-out type)  | 61970010 | ||
ATF45-N Pipe End | 80000279 | Side Rail for Black-out 4,000 mm | 61420003 | Adhesive Double Coated Tape (Only necessary for Black-out type)  | 58130001 | ||
| Stainless Steel Weight Bar 4,000 mm  | 65230033 | Side Rail Cap for Black Out  | 60670091 |
ATF35-RB Parts
| Product Name | Product Code | Product Name | Product Code | Product Name | Product Code | ||
| ATF35 Roller Pipe ∅ 50 2000 mm  | 60230575 | ATF35 Pipe End | 60700232 | MT03 Weight Bar Cap White  | 01030265 | ||
| ATF35 Motor Side Bracket N  (*1) | 30007803 | Split Pin | 63570003 | MT03 Weight Bar White 2730 mm  | 61950023 | ||
ATF35 End Side Bracket | 30007804 | Retaining Ring | 65230019 | Side Cover White | 01030234 | ||
ATF35 Tubular Motor | 30007802 | MT01N Set Bar White 2800 mm  | 60230162 | Tapping Screw 3 x 10 | 63200070 | ||
ATF35 Limit Crown | 60700231 | MT01N Bracket (2 pcs) | 01030201 | ||||
ATF35 Drive | 60700230 | MT01N Bracket (3 pcs) | 01030202 |
