Roller Blinds
ATF35-RB
Compact Design
Easy Snap Bracket
Features
Features
- Exceptionally compact motorized roller blind.
- Two installation options are available: a neatly-fixed option, Side Bracket Type or an easy-to-install option, Set Bar Type.
ATF35-RB’s Unique Features
Compact design
This compact design motorized roller blind offers a variety of uses:
from commercial to home.
quiet operation.
ATF 35 tubular motor realizes quiet operation.
Easy Snap Bracket
Easy Snap Bracket is available for easy installation and removal. (Set Bar Type)
Structure Drawing

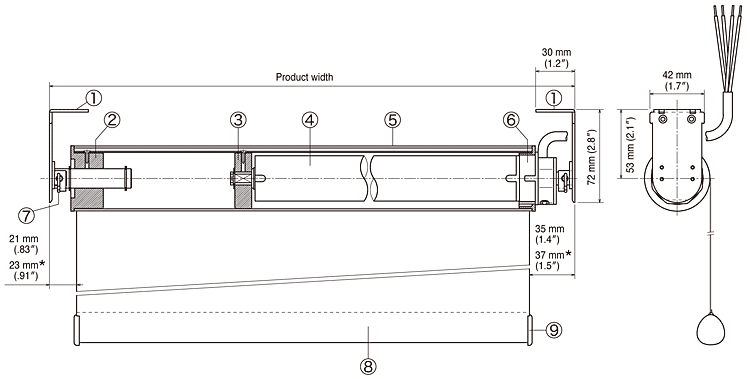

Side Bracket Type
Dimensions for the ratio of the width and height is 1 : 3 or more.

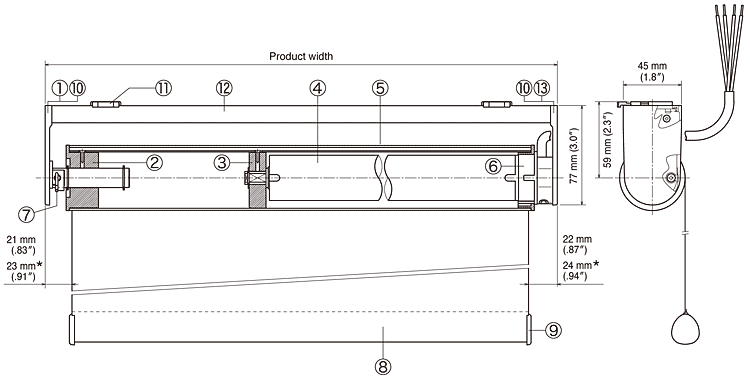

Set Bar Type
Dimensions for the ratio of the width and height is 1 : 3 or more
Components and Materials
Side Bracket Type
|
Set Bar Type
| No. | Components | Material |
| ① | ATF35 End Side Bracket | Stainless steel |
| ② | ATF35 Pipe End | Polyacetal resin |
| ③ | ATF35 Drive | Polyacetal resin |
| ④ | ATF35 Tubular Motor | — |
| ⑤ | ATF35 Roller Pipe ø 50 | Aluminum |
| ⑥ | ATF35 Limit Crown | Polyacetal resin |
| ⑦ | Split Pin | Steel |
| ⑧ | MT03 Weight Bar | Aluminum |
| ⑨ | MT03 Weight Bar Cap | Polyethylene resin |
| ⑩ | Side Cover | AES resin |
| ⑪ | MT01N Bracket | Steel |
| ⑫ | MT01N Set Bar | Aluminum |
| ⑬ | ATF35 Motor Side Bracket N | Stainless steel |
Motor Specifications
|
|
Allowable Size
| Width | 600–2000 mm (24–79″) |
| Height | 500–4500 mm (20–177″) |
| Max Surface area | 9 m2 (11 yd2) |
Product Weight
4.2 kg (9.3 lb)
(width: 2000 mm/79″ without screen)
- On Side Bracket Type.
- Allowable size is different by the screen fabric. Please refer to “Typical Roll-up Diameter” and Rated Torque.
Typical Roll-up Diameter
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Overall Structure Drawing

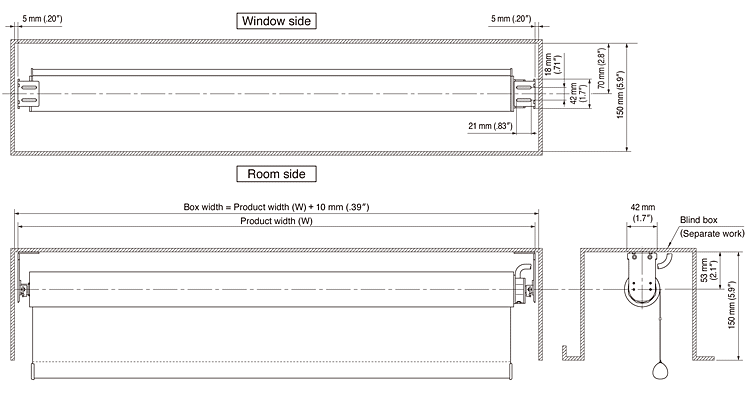

Side Bracket Type

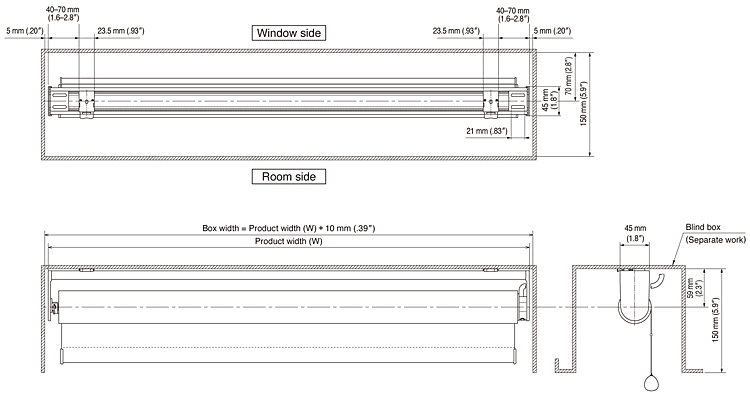

Set Bar Type
Basic Wiring and Connecting Diagram
Single Operation

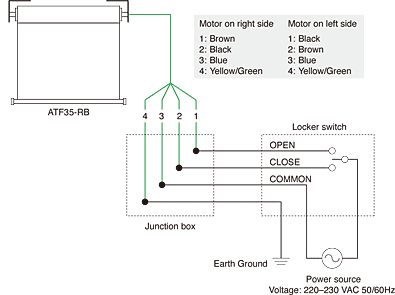

Basic Wiring Diagram

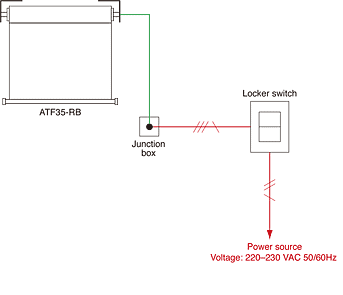

Basic Connecting Diagram

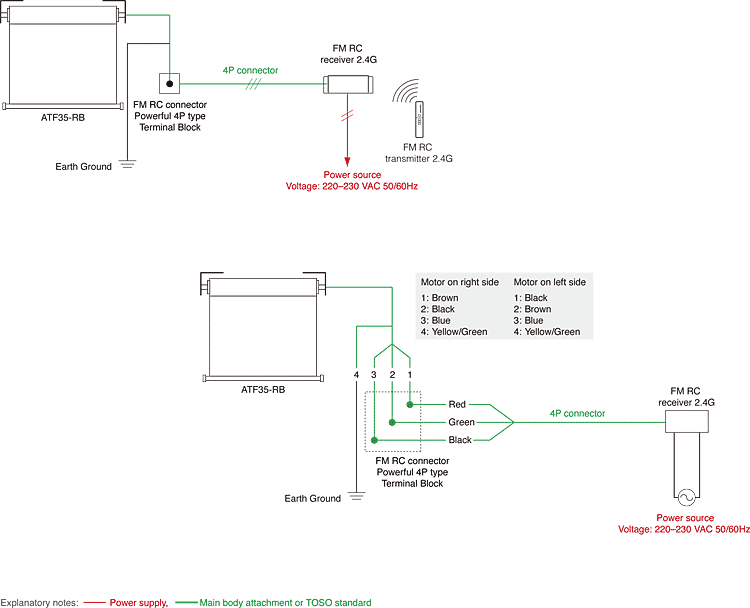

FM Remote Operation
Exploded View

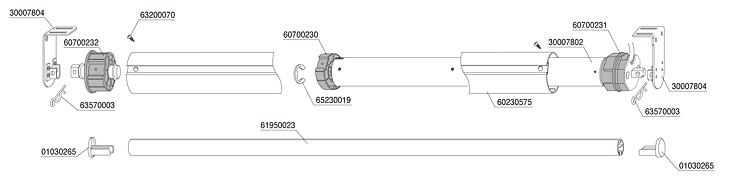

Side Bracket Type

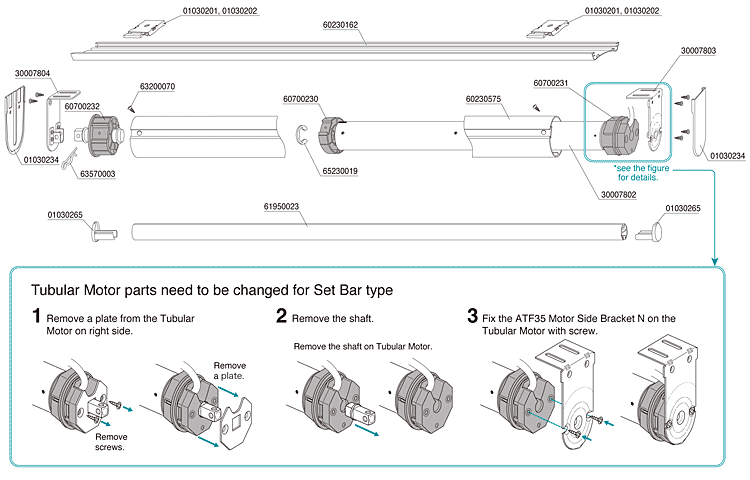

Set Bar Type
Parts and Components
| Item No. | Product Name | Side Bracket Type | Set Bar Type |
| 30007802 | ATF35 Tubular Motor | 1 pc | 1 pc |
| 60700231 | ATF35 Limit Crown | 1 pc | 1 pc |
| 60700230 | ATF35 Drive | 1 pc | 1 pc |
| 60700232 | ATF35 Pipe End | 1 pc | 1 pc |
| 60230575 | ATF35 Roller Pipe ∅ 50 2000 mm (79″) | W-62 mm (2.4″) | W–41 mm (1.6″) |
| 30007803 | ATF35 Motor Side Bracket N | — | 1 pcs |
| 30007804 | ATF35 End Side Bracket | 2 pcs | 1 pcs |
| 60230162 | MT01N Set Bar White 2800 mm (110″) | — | W-7 mm (.28″) |
| 01030201 | MT01N Bracket (2 pcs) | — | Up to W1000 mm (39″): 1 set |
| 01030202 | MT01N Bracket (3 pcs) | — | W1010 mm (40″) or over: 1 set |
| 01030265 | MT03 Weight Bar Cap White | 2 pcs | 2 pcs |
| 61950023 | MT03 Weight Bar White 2730 mm (108″) | [W:H=1:3] or over: W–69 mm (2.7″) Up to [W:H=1:3]: W–65 mm (2.6″) | [W:H=1:3] or over: W–48 mm (1.9″) Up to [W:H=1:3]: W–44 mm (1.7″) |
| 63570003 | Split Pin | 1 pc | 2 pcs |
| 65230019 | Retaining Ring | 1 pc | 1 pc |
| 63200070 | Tapping Screw 3 x 10 | 6 pcs | 6 pcs |
| 01030234 | Side Cover White | — | 2 pcs |
ATF35-RB Parts
| Product Name | Product Code | Product Name | Product Code | Product Name | Product Code | ||
| ATF35 Roller Pipe ∅ 50 2000 mm  | 60230575 | ATF35 Pipe End | 60700232 | MT03 Weight Bar Cap White  | 01030265 | ||
| ATF35 Motor Side Bracket N  (*1) | 30007803 | Split Pin | 63570003 | MT03 Weight Bar White 2730 mm  | 61950023 | ||
ATF35 End Side Bracket | 30007804 | Retaining Ring | 65230019 | Side Cover White | 01030234 | ||
ATF35 Tubular Motor | 30007802 | MT01N Set Bar White 2800 mm  | 60230162 | Tapping Screw 3 x 10 | 63200070 | ||
ATF35 Limit Crown | 60700231 | MT01N Bracket (2 pcs) | 01030201 | ||||
ATF35 Drive | 60700230 | MT01N Bracket (3 pcs) | 01030202 |
