Roman shades
ATF35-RS
Compact design
Tubular motor
Features
Features
Unique Features

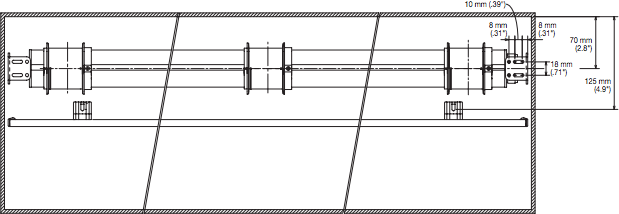

Rail Cross Section
This compact design motorized roman shade offers a variety of uses:
- A good choice for a wide range of home and commercial settings.
- ATF35 tubular motor realizes quiet operation.
Structure Drawing
Components and Materials
| Power Source Voltage | V | AC220–230 |
| Frequency | Hz | 50 /60 |
| Current | A | 0.53 |
| Power Consumption | W | 121 |
| Rated Torque | Nm | 3 |
| Rated RPM | rpm | 23.5/27 |
| Rated Running Time | min | 4 |
| Ambient Temperature | °C | –10–40 |
| Power Source Voltage | V | AC220–230 |
| Frequency | Hz | 50 /60 |
| Current | A | 0.53 |
| Power Consumption | W | 121 |
| Rated Torque | Nm | 3 |
| Rated RPM | rpm | 23.5/27 |
| Rated Running Time | min | 4 |
| Ambient Temperature | °C | –10–40 |
Maximum Screen Weight
6.0 kg (13 lb)
(1.0 kg/2 lb or less per one Pulley)
(1.0 kg/2 lb or less per one Pulley)
Product Weight
5.2 kg (11 lb)
(width: 2000 mm/79″ without screen)
(width: 2000 mm/79″ without screen)
Recommended Number of Lift Cords
| Product Width | 800–900mm (32–35″) | 910–1400mm (36–55″) | 1410–1900mm (56–75″) | 1910–2000mm (75–79″) |
| Number of Lift Cords | 3 | 4 | 5 | 6 |

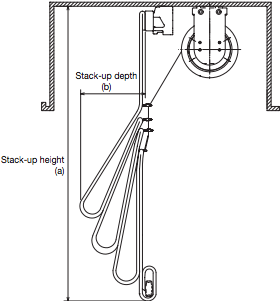

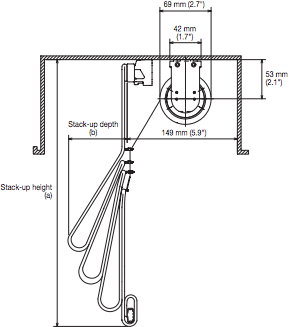

Stack-up Guide
| Style | Product Height | Recommended Ring Interval | Stack-up Height Dimension (a) | Stack-up Depth Dimension (b) |
| Plain | –3000 mm (118″) | 200 mm (7.9″) | 200 mm (7.9″) + H/80 mm (3.2″) | 80 mm (3.2″) |
| Plain with Rods | –1500 mm (59″) | 120 mm (4.7″) | 220 mm (8.7″) + H/24 mm (.94″) | 100 mm (3.9″) |
| –3000 mm (118″) | 150 mm (5.9″) | 250 mm (9.8″) + H/30 mm (1.2″) | ||
| Balloon (Gathers) | –3000 mm (118″) | 150 mm (5.9″) | 600 mm (24″) + H/60 mm (2.4″) | 200 mm (7.9″) |

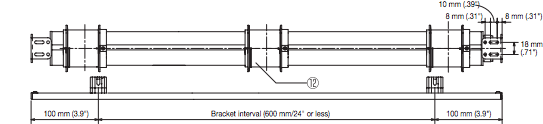

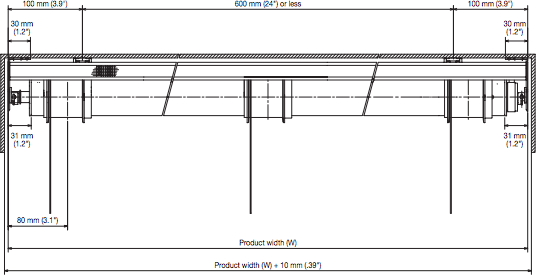

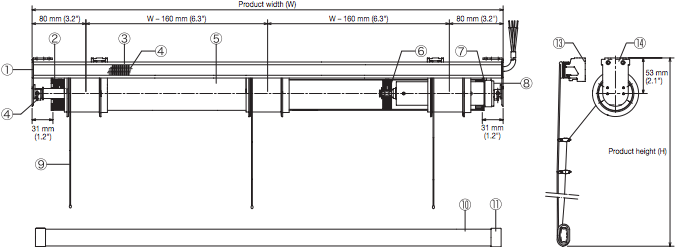

Overall Structure Drawing
Basic Wiring and Connecting Diagram

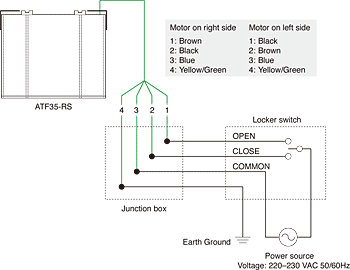

Single Operation

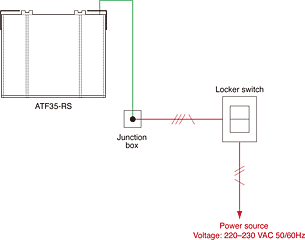

Basic Wiring Diagram
Basic Connecting Diagram

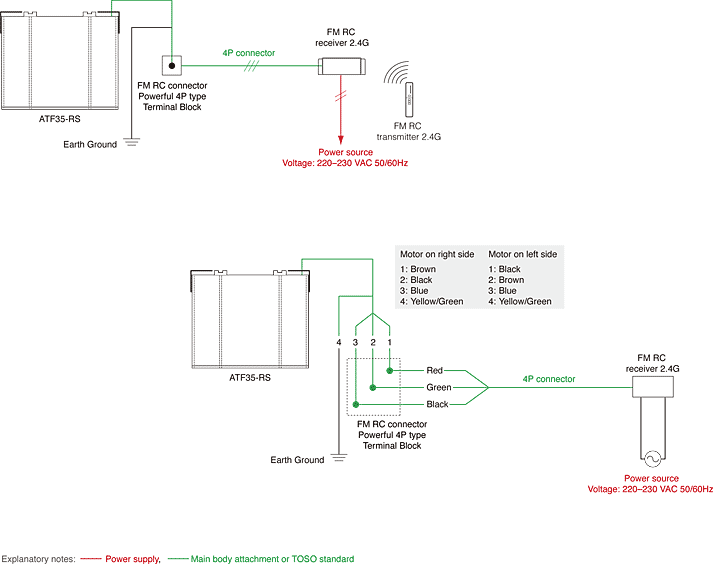

FM Remote Operation

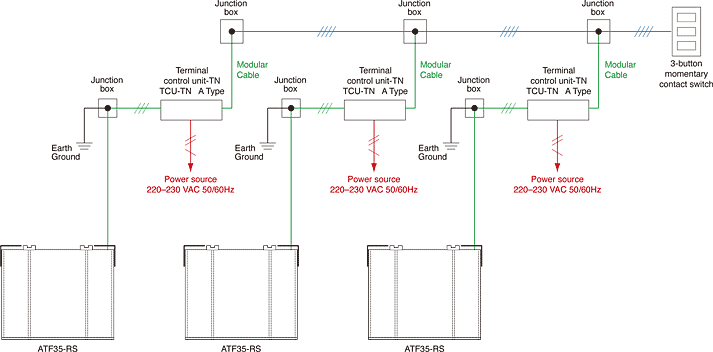

Simultaneous Operation

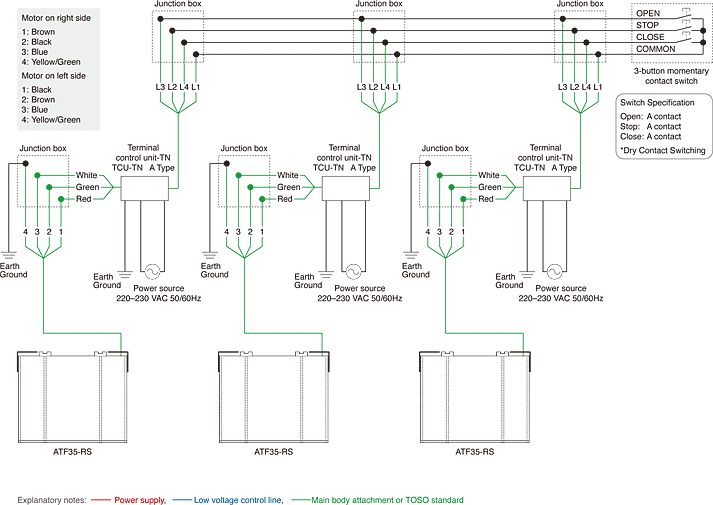

Basic Wiring Diagram
Basic Connecting Diagram

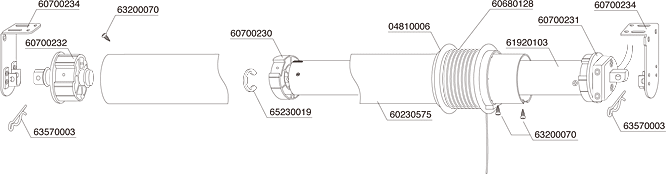

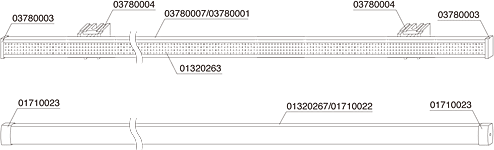

Exploded View
Parts and Components
| Item No. | Product Name | Product Width | |||
| 700–900 mm (28–35″) | 910–1400 mm (36–55″) | 1410–1900 mm (56–75″) | 1910–2000 mm (75–79″) | ||
| 61920103 | ATF35 Tubular Motor | 1 pc | |||
| 60700231 | ATF35 Limit Crown | 1 pc | |||
| 60700230 | ATF35 Drive | 1 pc | |||
| 60700232 | ATF35 Pipe End | 1 pc | |||
| 60230575 | ATF35 Roller Pipe Ø 50 2000 mm (79″) | W – 62 mm (2.4″) x 1 pc | |||
| 60700234 | ATF35 End Side Bracket | 2 pcs | |||
| 63570003 | Split Pin | 2 pcs | |||
| 65230019 | Retaining Ring | 1 pc | |||
| 63200070 | Tapping Screw 3 x 10 | 2 pcs | |||
| 03780004 | Freel Bracket | 2 (W:700–800 mm /28–32″) | 3 (W: 810–1400 mm /32–55″) | 4 (W: 1410–2000 mm/56–79″) | |
| 03780007 /03780001 | Freel Head Rail | W – 4 mm (.16″) x 1 pc | |||
| 03780003 | Freel Head Cap | 2 pcs | |||
| 01320263 | RS Slide-in Velcro | W – 4 mm (.16″) x 1 pc | |||
| 04810006 | ATF35-RS Recoiling Pulley | 3 pcs | 4 pcs | 5 pcs | 6 pcs |
| 60680128 | Lift Cord Ø 1.2 | 3 pcs x 4 m (158″) | 4 pcs x 4 m (158″) | 5 pcs x 4 m (158″) | 6 pcs x 4 m (158″) |
| 01710023 | RS Weight Bar Cap 25 | 2 pcs | |||
| 01320267 /01710022 | RS Weight Bar 25 | W – 50 mm (2.0″) x 1 pc | |||
Parts List
| Product Name | Product Code |
ATF35 Tubular Motor | 61920103 |
ATF35 Limit Crown | 60700231 |
ATF35 Drive | 60700230 |
ATF35 Pipe End | 60700232 |
| ATF35 Roller Pipe Ø 50 2000 mm  | 60230575 |
ATF35 End Side Bracket | 60700234 |
| Product Name | Product Code | |
RS Slide-in Velcro | 01320263 | |
ATF35-RS Recoiling Pulley | 04810006 | |
Lift Cord Ø 1.2 | 60680128 | |
RS Weight Bar Cap 25 | 01710023 | |
RS Weight Bar 25 | 3000 mm | 01320267 |
| 4000 mm | 01710022 | |
| Product Name | Product Code | |
Split Pin | 63570003 | |
Retaining Ring | 65230019 | |
Tapping Screw 3×10 | 63200070 | |
Freel Bracket | 03780004 | |
Freel Head Rail | 4000 mm | 03780001 |
Freel Head Cap | 03780003 | |
