DISPOSABLE CURTAINS
Smooth rollers
Wave Style
Features
Features

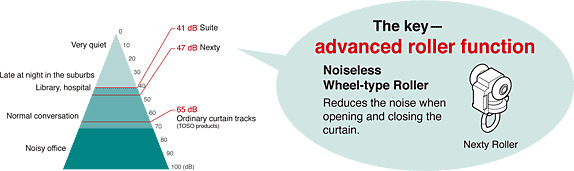

Smooth and quiet rollers
Noiseless Roller
NEXTY is very quiet because the runners are silent.
Nexty Rollers give beautiful
expression to curtain folds
Freely revolving eye bolts allow curtain folds to neatly settle into each other.
Freely revolving eye bolts allow curtain folds to neatly settle into each other.

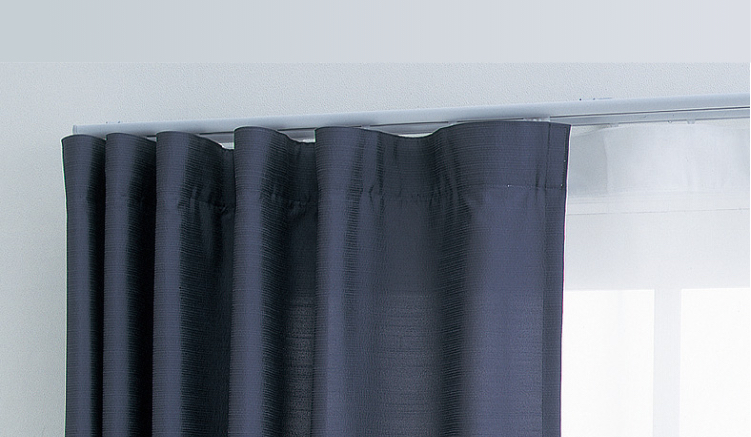

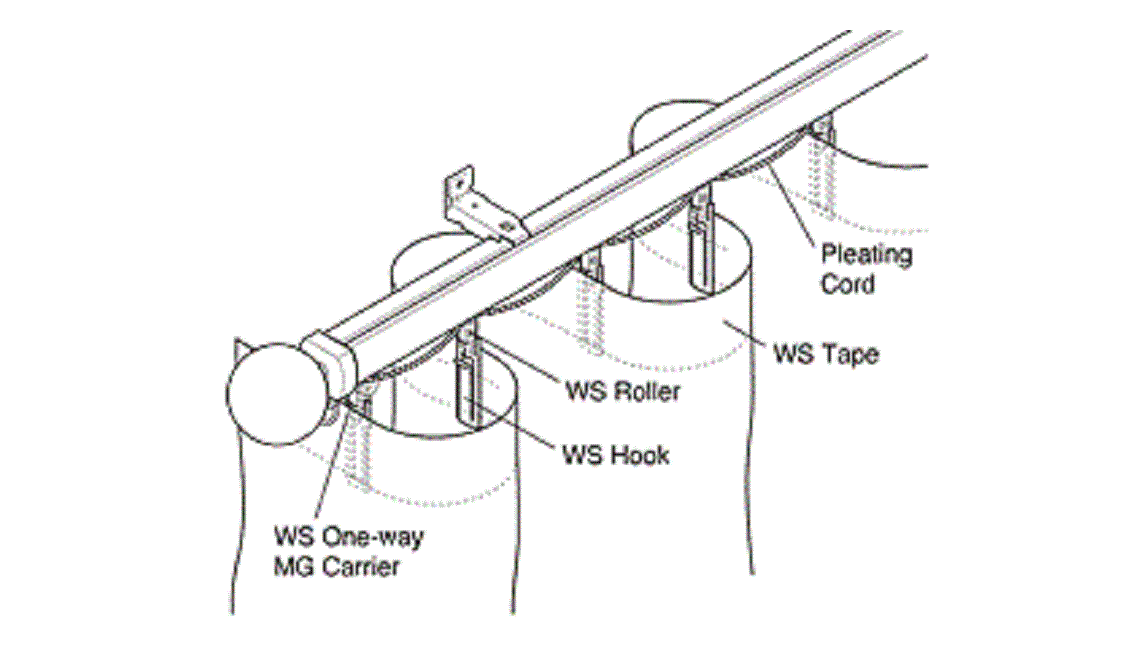

Wave Style
The Wave style brings out the feeling of naturally fabric.
for more details about wave style, please refer to the catalog ” Wave Style Components. “

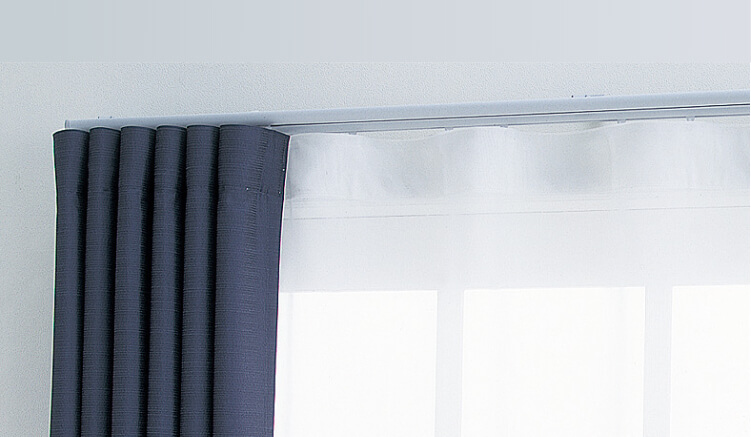

End Cap M
Shut out external light
Curtain returns that excel by design.
With the End Cap M design, the end cap is installed by inserting from the front. That means easy rail installation even right up against a wall or air conditioner.
*Rail must be installed 6 mm from the back wall.
” Return specifications include designs that shut out external light. Cap M come in two colors-silver and pearl beige. “
Option
Option

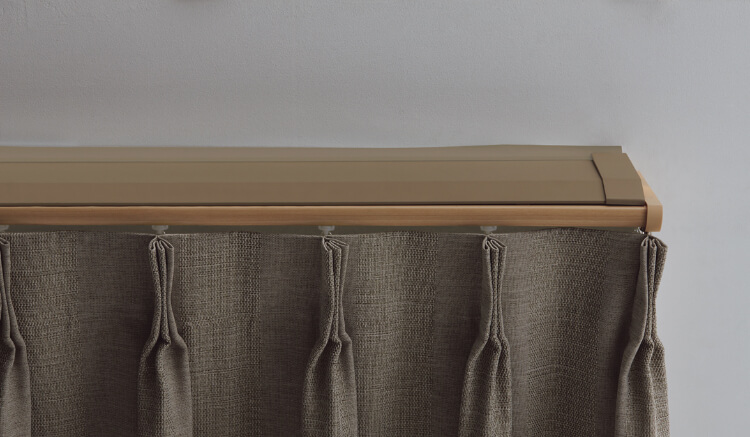

Cover Top Ⅱ ( Cover Top II does not block all external light )
Energy saving
Installing the Cover Top II stops air flow and external light from above curtains and helps to lower heating and cooling bills. Covers come in either light brown, dark brown or white. Installing a Cover Top II greatly reduces the amount of external light leaking in over the top and from around the sides of curtains.

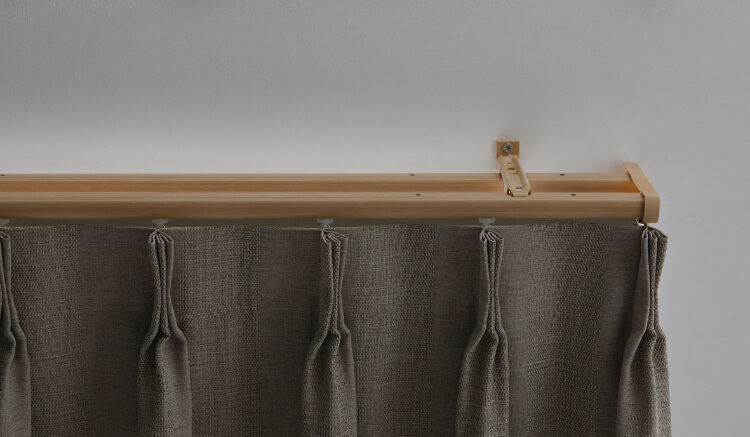

Before
After

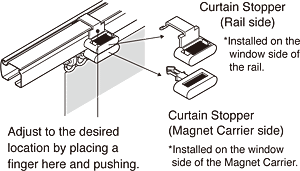

Curtain Stopper ( Ceiling attachment is impossible. )
Convenient
The Curtain Stopper (PAT.P) makes it possible to keep curtains open to their widest extent. Even curtains that tend to close because of the material of the curtain fabric.
Without Stopper
With Stopper

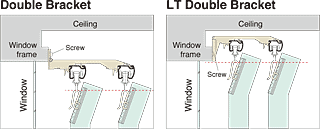

LT Double Bracket / LT Extra Single Bracket
Energy saving
This bracket hangs the curtain higher than regular brackets. Because the top of the curtain is positioned higher than usual, very little light filters into the room. A screw hole is provided on the bottom of the bracket to enable easy installation on a window frame close to the ceiling.

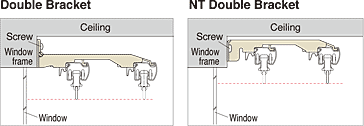

NT Double Bracket
NT Double Bracket is suitable for the narrow space or in the case to be attached to the window frame, because the screw can be fixed just beside the Bracket body. Moreover, the curtain hanging position is up, reduce the light leaking.

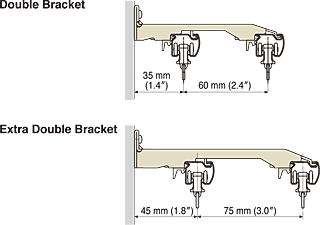

Extra Double Bracket
The Extra Double Bracket features wider spacing between rails. Additional space prevents interfering contact between curtain folds and window frame, and between the two sets of curtains.

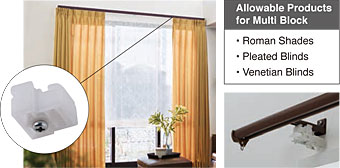

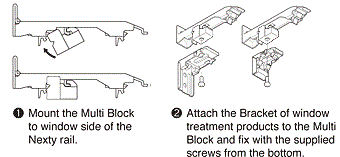

Multi Block
Multi Block is a convenient tool: by mounting the Multi Block to the existing curtain rail bracket, the installation of the blinds, etc. behind the curtain is possible. Also, reduce the hole opening in the wall. Various options around the window is spread.
Multi Block
Lineup
Lineup
End Cap
Plain White
White Grain
Ash Grain
Natural Grain
Light Grain
Mild Grain
Medium Wood
Bitter Grain
Walnut
Dark Mahogany
Black
Mist Silver
End Cap M
Plain White
White Grain
Ash Grain
Natural Grain
Light Grain
Mild Grain
Medium Wood
Medium Grain
Bitter Grain
Walnut
Dark Mahogany
Black
End Cap M / Pearl Beige
Plain White
White Grain
Ash Grain
Natural Grain
Light Grain
Mild Grain
Medium Wood
Medium Grain
Bitter Grain
Walnut
Dark Mahogany
Black
Mist Silver
Pearl Gray
Lineup
Lineup
End Cap
Plain White
White Grain
Ash Grain
Natural Grain
Light Grain
Mild Grain
Medium Wood
Bitter Grain
Walnut
Dark Mahogany
Black
Mist Silver
End Cap M
Plain White
White Grain
Ash Grain
Natural Grain
Light Grain
Mild Grain
Medium Wood
Medium Grain
Bitter Grain
Walnut
Dark Mahogany
Black
End Cap M / Pearl Beige
Plain White
White Grain
Ash Grain
Natural Grain
Light Grain
Mild Grain
Medium Wood
Medium Grain
Bitter Grain
Walnut
Dark Mahogany
Black
Mist Silver
Pearl Gray
Materials and Finishes
| Parts | Material | Finish | |||||
|---|---|---|---|---|---|---|---|
|
Rail |
Olefin resin coating
metal plate |
Plain white, White grain (excluding End Cap), Ash grain, Natural grain, Light grain, Mild grain (excluding End Cap), Medium wood, Medium grain, Bitter grain, Walnut, Dark mahogany, Black, Mist silver, Pearl gray |
|||||
|
End Cap |
Body |
Nylon |
Plain white, White grain (excluding End Cap), Ash grain, Natural grain, Light grain, Mild grain (excluding End Cap), Medium wood, Medium grain, Bitter grain, Walnut, Dark mahogany, Black, Mist silver, Pearl gray |
||||
|
End Cap M |
Body |
ABS resin |
Plain white, Ash grain, Natural grain, Light grain, Medium wood, Medium grain, Bitter grain, Walnut, Dark mahogany, Black, Pearl beige |
||||
|
Bracket |
Body |
Steel |
Plain white, Ash grain, Natural grain, Light grain, Medium wood, Medium grain, Bitter grain, Walnut, Dark mahogany, Black, Mist silver, Pearl gray |
||||
|
Hook |
Acetal resin |
||||||
| Parts | Material | Finish | |||||
|---|---|---|---|---|---|---|---|
|
Roller |
Plate |
Hard polyethylene |
- |
||||
|
Wheel |
Polyester elastomer |
||||||
|
Oval ring |
Stainless steel |
||||||
|
Cover TopⅡ |
Body |
Polystyrene resin |
White, Light brown, Dark brown |
||||
|
Cap |
Polystyrene resin |
White, Light brown, Dark brown |
|||||
|
Fixing clip |
Acetal resin |
- |
|||||

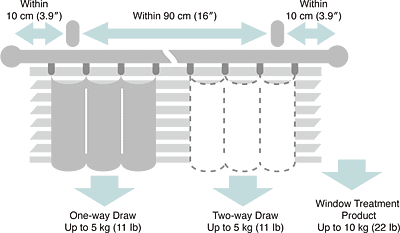

Bracket Installation Interval and Allowable Curtain Load
Installation
Installation and Caps Dimensions

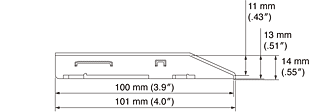

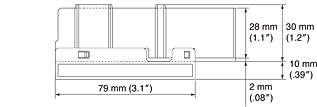

Caps Dimension
Ceiling Attachment
Direct attachment
Ceiling Single Bracket
Bracket width = 27 mm (1.1″)
Ceiling Double Bracket
Bracket width = 19 mm (.75″)
Wall Attachment
Single Bracket
Bracket width = 27 mm (1.1″)
Extra Single Bracket
Bracket width = 18 mm (.71″)
LT Extra Single Bracket
Bracket width = 35 mm (1.4″)
Double Bracket
Bracket width = 18 mm (.71″)
LT Double Bracket
Bracket width = 35 mm (1.4″)

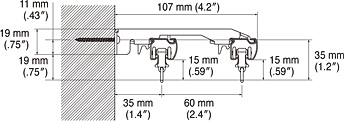

NT Double Bracket
Bracket width = 44 mm (1.7″)

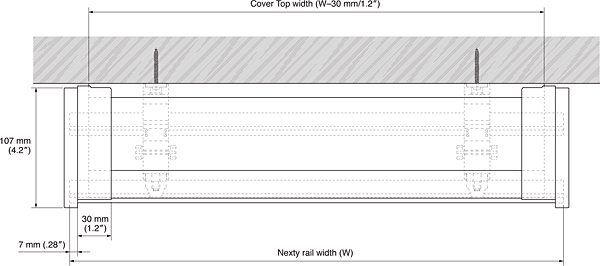

Cover Top Ⅱ
Side view / Cover Top + End Cap M
Top view
Curtain Stopper
Top view (A)
Rails
Nexty Rails
Product Codes
| Size | Plain White | White Grain | Ash Grain | Natural Grain | Light Grain | |||
|---|---|---|---|---|---|---|---|---|
|
1.82m (72") |
03570536 |
03570068 |
30008559 |
03570143 |
03570542 |
|||
|
2.00m (79") |
03570537 |
03570069 |
30008560 |
03570144 |
03570543 |
|||
|
2.73m (107") |
03570538 |
03570138 |
30008561 |
03570145 |
03570544 |
|||
|
3.00m (118") |
03570539 |
03570139 |
30008562 |
03570146 |
03570545 |
|||
|
4.00m (157") |
03570541 |
03570141 |
30008564 |
03570148 |
03570547 |
|||
|
Curved Rail ( 0.40mx0.40m ) (16" x 16") |
180mmR (7.1"R) |
03570554 |
03570072 |
30008565 |
03570161 |
03570556 |
||
|
240mmR (9.5"R) |
03570555 |
03570075 |
30008566 |
03570162 |
03570557 |
|||
| Size | Mild Grain | Medium Wood | Medium Grain | Bitter Grain | Walnut | |||
|---|---|---|---|---|---|---|---|---|
|
1.82m (72") |
30008579 |
03572465 |
03570548 |
30008762 |
03570064 |
|||
|
2.00m (79") |
30008580 |
03572466 |
03570549 |
30008763 |
03570065 |
|||
|
2.73m (107") |
30008581 |
03572467 |
03570550 |
30008764 |
03570149 |
|||
|
3.00m (118") |
30008582 |
03572468 |
03570551 |
30008765 |
03570150 |
|||
|
3.64m (143") |
30008583 |
03572469 |
03570552 |
30008766 |
03570151 |
|||
|
4.00m (157") |
30008584 |
03572470 |
03570553 |
30008767 |
03570152 |
|||
|
Curved Rail ( 0.40mx0.40m ) (16" x 16") |
180mmR (7.1"R) |
30008585 |
03572471 |
03570558 |
30008768 |
03570070 |
||
|
240mmR (9.5"R) |
30008586 |
03572472 |
03570559 |
30008769 |
03570073 |
|||
| Size | Dark Mahogany | Black | Mist Silver | Pearl Gray | |||
|---|---|---|---|---|---|---|---|
|
1.82m (72") |
03570066 |
03500019 |
03500015 |
03500017 |
|||
|
2.00m (79") |
03570067 |
03500020 |
03500016 |
03500018 |
|||
|
2.73m (107") |
03570153 |
03570157 |
03570126 |
03570134 |
|||
|
3.00m (118") |
03570154 |
03570158 |
03570127 |
03570135 |
|||
|
3.64m (143") |
03570155 |
03570159 |
03570128 |
03570136 |
|||
|
4.00m (157") |
03570156 |
03570160 |
03570129 |
03570137 |
|||
|
Curved Rail ( 0.40mx0.40m ) (16" x 16") |
180mmR (7.1"R) |
03570071 |
03570010 |
03570008 |
03570009 |
||
|
240mmR (9.5"R) |
03570074 |
03570014 |
03570012 |
03570013 |
|||
Multi Block (Option)
Nexty Rails
Multi Block for Nexty
Bracket Installation Interval and Allowable Load for Curtain and Window Treatment Products
Number of Bracket with Multi Block
| Window Treatment Products | Width | Height | 2 | 3 | 4 | 5 | ||
|---|---|---|---|---|---|---|---|---|
|
Roman Shade
(Creaty) |
Drum type:
Single, Twin, Twin One Chain |
3,900 (154) |
3,000 (118) |
–1,200 (47) |
1,210–2,000 (48–79) |
2,010–3,000 (79–118) |
3,010–3,900 (119–154) |
|
|
Cord type: Single, Twin |
2,400 (94) |
3,000 (118) |
–1,200 (47) |
1,210–2,000 (48–79) |
2,010–2,400 (79–94) |
- |
||
|
Pleated Blind
(SHIORI 25) |
Twin One Chain |
2,000
(79) |
3,000 (118) |
–1,200 (47) |
1,205–2,000 (47–79) |
- |
- |
|
|
Chain Twin |
2,000
(79) |
3,000 (118) |
–1,200 (47) |
1,205–2,000 (47–79) |
- |
- |
||
|
Chain |
3,000 (118) |
3,000 (118) |
–1,200 (47) |
1,205–2,000 (47–79) |
2,050–3,000 (81–118) |
- |
||
|
Cord Twin |
2,000 (79) |
3,000 (118) |
–1,200 (47) |
1,205–2,000 (47–79) |
- |
- |
||
|
Cord |
2,000
(79) |
3,000 (118) |
–1,200 (47) |
1,205–2,000 (47–79) |
- |
- |
||
|
Venetian Blind |
COLT Blind 25 |
3,000 (118) |
3,000 (118) |
–1,280 (50) |
1,290–2,180 (51–86) |
2,190–3,000 (86–118) |
- |
|
|
New Ceramy 25 |
3,000 (118) |
3,000 (118) |
–1,280 (50) |
1,290–2,180 (51–86) |
2,190–3,000 (86–118) |
- |
||
|
Slat 25 |
3,000 (118) |
3,000 (118) |
–1,280 (50) |
1,290–2,180 (51–86) |
2,190–3,000 (86–118) |
- |
||
Maximum load of Roman Shade is 5 kg (11Ib). When ordering of twin, please specify the Ceiling Bracket.
In the case of Pleated Blind, there is a limit of ratio, H:W, depending on the product type and screen.
Maximum allowable area of the Venetian Blind is 7 m2 (8.4 yd2).
In accordance with the necessary bracket number of window treatment products, please arrange Multi-Blocks and Brackets of the Nexty.
The weight of window treatment products should be manufactured up to 10 kg (22 Ib) within the above-mentioned corresponding type size.
If the curtain volume and style on the room side is thick, the Blind and Roman Shade are interfered sometimes when they are lifting up and down.
Dimensions of Window Treatment Products
Drawing for Window Treatment Products and Nexty

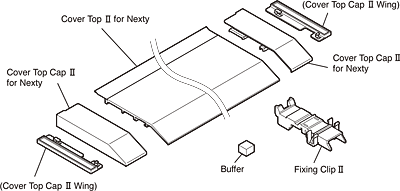

Nexty Cover Top Ⅱ(Option)
Product View
Main Body Side View
Cap Side View
Cap Bottom View
Nexty Cover Top Ⅱ Set ( Product Code )
| Size | White | Light Brown | Dark Brown |
|---|---|---|---|
|
1.82 m (72″) |
30009107 |
30009108 |
30009109 |
|
2.00 m (79″) |
30009110 |
30009111 |
30009112 |
|
2.73 m (108″) |
30009113 |
30009114 |
30009115 |
|
3.00 m (118″) |
30009116 |
30009117 |
30009118 |
Contents of Set: Cover Top Ⅱ(1 pc), Cover Top Cap Ⅱ(1 set), Fixing Clip Ⅱ (1.10 m/43″or less = 2 pcs, 1.11–2.70 m/44–106″= 3 pcs, 2.71–2.90 m/107–114″= 4 pcs, 2.91–3.00 m/115–118″= 5 pcs)
*The maximum length of all separately manufactured rails is 3.00 m (118″).
Color Combination
| Rail | End Cap | Bracket | Cover Top |
|---|---|---|---|
|
Plain White |
Plain White |
Plain White |
White |
|
White Grain |
Plain White |
Plain White |
|
|
Ash Grain |
Ash Grain |
Ash Grain |
Light Brown |
|
Natural Grain |
Natural Grain |
Natural Grain |
|
|
Light Grain |
Light Grain |
Light Grain |
|
|
Mild Grain |
Mild Grain |
Mild Grain |
|
|
Medium Wood |
Medium Wood |
Medium Wood |
|
|
Medium Grain |
Medium Grain |
Medium Grain |
|
|
Bitter Grain |
Bitter Grain |
Bitter Grain |
|
|
Walnut |
Walnut |
Walnut |
Dark Brown |
|
Dark Mahogany |
Dark Mahogany |
Dark Mahogany |
|
|
Black |
Black |
Black |
|
|
Mist Silver |
Mist Silver |
Mist Silver |
Light Brown |
|
Pearl Gray |
Pearl Gray |
Pearl Gray |
Parts List
| Product Name | Product Code | ||
| Rollers | Roller
(8 pieces per strip)
 |
03572457 | |
MG Carrier
 |
03570037 | ||
One-way MG Carrier
 |
03570038 | ||
Side MG Carrier
 |
30000993 | ||
| Brackets | Single Bracket
 |
Plain White | 03570581 |
| Ash Grain | 30008485 | ||
| Natural Grain | 03570163 | ||
| Light Grain | 03570582 | ||
| Medium Wood | 03572473 | ||
| Medium Grain | 03570583 | ||
| Bitter Grain | 30008777 | ||
| Walnut | 03570103 | ||
| Dark Mahogany | 03570105 | ||
| Black | 03500098 | ||
| Mist Silver | 03500096 | ||
| Pearl Gray | 03500097 | ||
Extra Single Bracket
 |
Plain White | 03572476 | |
| Ash Grain | 30008487 | ||
| Natural Grain | 03572477 | ||
| Light Grain | 03572478 | ||
| Medium Wood | 03572479 | ||
| Medium Grain | 03572480 | ||
| Bitter Grain | 30008779 | ||
| Walnut | 03572481 | ||
| Dark Mahogany | 03572482 | ||
| Black | 03572486 | ||
| Mist Silver | 03572483 | ||
| Pearl Gray | 03572484 | ||
LT Extra Single Bracket
 |
Plain White | 30009019 | |
| Ash Grain | 30009020 | ||
| Natural Grain | 30009021 | ||
| Light Grain | 30009022 | ||
| Medium Wood | 30009029 | ||
| Medium Grain | 30009023 | ||
| Bitter Grain | 30008781 | ||
| Walnut | 30009024 | ||
| Dark Mahogany | 30009025 | ||
| Black | 30009026 | ||
| Mist Silver | 30009027 | ||
| Pearl Gray | 30009028 | ||
Double Bracket
 |
Plain White | 03570584 | |
| Ash Grain | 30008486 | ||
| Natural Grain | 03570165 | ||
| Light Grain | 03570585 | ||
| Medium Wood | 03572474 | ||
| Medium Grain | 03570586 | ||
| Bitter Grain | 30008778 | ||
| Walnut | 03570107 | ||
| Dark Mahogany | 03570109 | ||
| Black | 03500106 | ||
| Mist Silver | 03500104 | ||
| Pearl Gray | 03500105 | ||
Extra Double Bracket
 |
Plain White | 30004734 | |
| Ash Grain | 30008488 | ||
| Natural Grain | 30004735 | ||
| Light Grain | 30004736 | ||
| Medium Wood | 30004737 | ||
| Medium Grain | 30004738 | ||
| Bitter Grain | 30008780 | ||
| Walnut | 30004739 | ||
| Dark Mahogany | 30004740 | ||
| Black | 30004741 | ||
| Mist Silver | 30004742 | ||
| Pearl Gray | 30004744 | ||
LT Double Bracket
 |
Plain White | 30004723 | |
| Ash Grain | 30008489 | ||
| Natural Grain | 30004724 | ||
| Light Grain | 30004725 | ||
| Medium Wood | 30004726 | ||
| Medium Grain | 30004727 | ||
| Bitter Grain | 30008782 | ||
| Walnut | 30004728 | ||
| Dark Mahogany | 30004729 | ||
| Black | 30004730 | ||
| Mist Silver | 30004731 | ||
| Pearl Gray | 30004733 | ||
NT Double Bracket
 |
Plain White | 30009030 | |
| Ash Grain | 30009031 | ||
| Natural Grain | 30009032 | ||
| Light Grain | 30009033 | ||
| Medium Wood | 30009034 | ||
| Medium Grain | 30009035 | ||
| Bitter Grain | 30008783 | ||
| Walnut | 30009036 | ||
| Dark Mahogany | 30009037 | ||
| Black | 30009038 | ||
| Mist Silver | 30009039 | ||
| Pearl Gray | 30009040 | ||
Ceiling Single Bracket
 |
Plain White | 03570587 | |
| Ash Grain | 30008490 | ||
| Natural Grain | 03570169 | ||
| Light Grain | 03570588 | ||
| Medium Wood | 03572455 | ||
| Medium Grain | 03570589 | ||
| Bitter Grain | 30008784 | ||
| Walnut | 03570170 | ||
| Dark Mahogany | 03570171 | ||
| Black | 03570172 | ||
| Mist Silver | 03570167 | ||
| Pearl Gray | 03570057 | ||
| Product Name | Product Code | ||
| Brackets | Ceiling Double Bracket
 |
Plain White | 03570590 |
| Ash Grain | 30008491 | ||
| Natural Grain | 03570181 | ||
| Light Grain | 03570591 | ||
| Medium Wood | 03572456 | ||
| Medium Grain | 03570592 | ||
| Bitter Grain | 30008785 | ||
| Walnut | 03570182 | ||
| Dark Mahogany | 03570183 | ||
| Black | 03570184 | ||
| Mist Silver | 03570179 | ||
| Pearl Gray | 03570059 | ||
| End Caps | End Cap
 |
Plain White | 03570593 |
| Ash Grain | 30008492 | ||
| Natural Grain | 03570191 | ||
| Light Grain | 03570594 | ||
| Medium Wood | 03572475 | ||
| Medium Grain | 03570595 | ||
| Bitter Grain | 30008786 | ||
| Walnut | 03570111 | ||
| Dark Mahogany | 03570112 | ||
| Black | 03500090 | ||
| Mist Silver | 03500088 | ||
| Pearl Gray | 03500089 | ||
End Cap M
(Double)
 |
Plain White | 30007298 | |
| Ash Grain | 30008493 | ||
| Natural Grain | 30007299 | ||
| Light Grain | 30007300 | ||
| Medium Wood | 30007301 | ||
| Medium Grain | 30007302 | ||
| Bitter Grain | 30008787 | ||
| Walnut | 30007303 | ||
| Dark Mahogany | 30007304 | ||
| Black | 30007305 | ||
| Pearl Beige | 03570535 | ||
Cover Top Cap Ⅱ
 |
White | 30009128 | |
| Light Brown | 30009129 | ||
| Dark Brown | 30009130 | ||
Return Aids for End Cap
 |
00530063 | ||
Intermediate Stop
 |
30009041 | ||
| Other Parts | Multi Block
 |
30009042 | |
Splice
 |
03500108 | ||
Curtain Stopper
 |
03570006 | ||
| Rail Cutter | 03210024 | ||
