Peripheral Parts for Motorized Products
FM Remote-Control Receiver/Transmitter
Multi-channel
Steady transmission
Features
Features
- Super reliable Remote-control transmitting and receiving device configured for the 2.4 GHz band.
- Compact shape with a built-in antenna.
- Various kind of operation patterns are available for Max. 120 units (6ch × 20 zone)
ATF35-RB’s Unique Features
Smooth operation.
Multi-channel Access
Multi-channel Access System makes
for Reliable Transmissions
Steady transmissions
don’t pick up interference from signals emitted by other devices.
FM Remote-Control Transmitter
FM Remote-Control Transmitter 2.4G communicates on 3 wavelengths, so even in the event that one of them is subject to interference, steady transmissions are still possible.
Using strong radio frequencies
- Operable from a 30 m distance, thus making it possible to install it in a variety of places, such as in a high window.
- Our FM Remote-Control Transmitter 2.4G emits signals that are strong enough to make transmissions possible even if there are obstacles in the way.
Setting multiple channels in one receiver possible
- Multiple channels can be set in one receiver, so it is possible to send signals from even one transmitter to the receiver in which each of the channels has been set.
- So individual, simultaneous, and even various group operations can be performed.
Multi Remote Transmitter
FM Remote-Control Relay Unit 2.4G

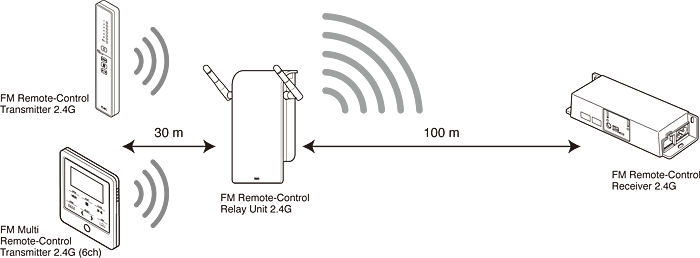

FM Remote-Control Relay Unit can transfer signal from Transmitter to receiver within 100 m per one unit.
(Max. 15 units)
FM Remote-Control Receiver 2.4G
Receiver can be used with any TOSO product
Can be used with all motorized curtain tracks and motorized blinds.
Multiple addresses can be set with one receiver
Individual, simultaneous and group operation are possible when the address is properly set.
FM Remote-Control Receiver 2.4G with IR Terminal
Compact body with a built-in antenna
The antenna is built into the receiver, for a compact, beautiful design.
The built-in antenna fits snugly into the body, for attractive contours. The receiver draws power directly from operated products.
No wiring or dedicated power supply required.
*For the product with IR Terminal only. (Progress 25/50)
Multiple addresses can be set with one receiver
Individual and simultaneous operations are both possible when the address is properly set.
FM Remote-Control Transmitter 2.4G

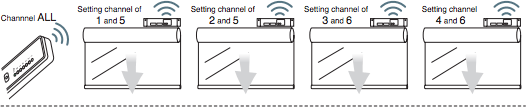

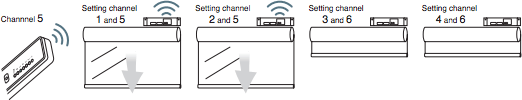

Six individual channel operations and simultaneous operations possible
Individual and simultaneous operations are both possible when the channels are properly set.
Easy-to-read display
You can tell at a glance which channel you are operating because of the easy-to-read LED lamp
FM Multi Remote-Control Transmitter 2.4G
- Super reliable RF remote transmitter same as TOSO 6ch type.
- Various kind of operation patterns are available for 120 units.

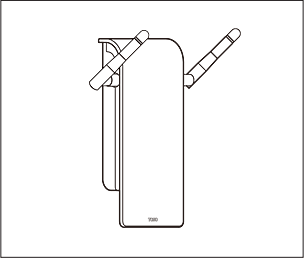

FM Remote-Control Relay Unit 2.4G
- It receives radio wave from TOSO FM Transmitter, to operate products with TOSO FM Remote Receivers.
- Two antennas are able to transmit received radio wave to 100 m.
- Radio wave are able to be transmitted forever if you put appropriate number of this relay unit without any registration works.
Product View
Product View
FM Remote-Control Receiver 2.4G

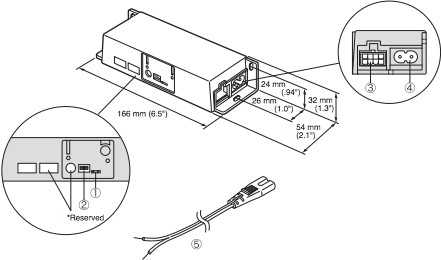

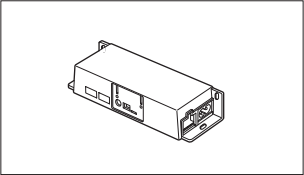

Parts Name
| ① | LED Indicator Lamp (red, green) |
| ② | Selection Switches |
| ③ | FM RC Connection Terminal |
| ④ | Power Supply Terminal |
| ⑤ | AC Cord |
Specification
| Source Voltage | AC 100 V, AC 220–240 V |
| Power Frequency | 50/60 Hz |
| Source Current | 300 mA |
| Reception Frequency | 2.4 GHz |
| Modulation | FSK |
| Output | Relay output |
| Protection | 5A internal fuse |
| Ambient Temperature | 0–50 ºC (Non-condensing) |
| Product Size | W 166 mm x H 54 mm x D 32 mm |
| Product Weight | Approx. 145 g |
| Antenna | Internal |
| Contact Rating | AC 100V 2.5A, AC220–240V 1A |
FM Remote-Control Receiver 2.4G with IR Terminal
FM Remote-Control Receiver 2.4G

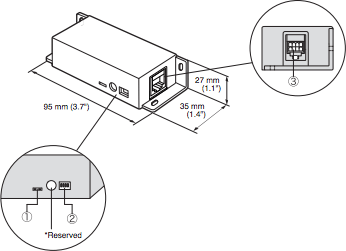

Parts Name
| ① | LED Indicator Lamp (red, green) |
| ② | Selection Switches |
| ③ | FM RC Connection Terminal |
| ④ | Power Supply Terminal |
| ⑤ | AC Cord |
Specification
| Source Voltage | DC5V |
| Power Frequency | 50/60 Hz |
| Source Current | 40mA or lower |
| Reception Frequency | 2.4 GHz |
| Modulation | FSK |
| Output | Relay output |
| Ambient Temperature | 0–50 ºC (Non-condensing) |
| Product Size | W 95 mm x H 35 mm x D 27 mm |
| Product Weight | Approx. 40 g |
| Antenna | Internal |

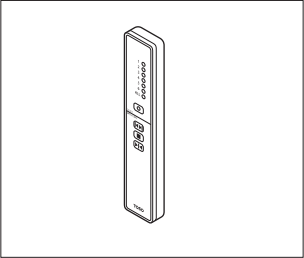

FM Remote-Control Transmitter 2.4G
Parts Name
| ① | Address No. LED Indicator Lamp |
| ② | Address No. Setting Button |
| ③ | Open Button |
| ④ | Stop Button |
| ⑤ | Close Button |
| ⑥ | Holder |
| ⑦ | Battery (4A dry cell batteries: 2 pcs.) |
Specification
| Source Voltage | DC3V (4A dry cell batteries x 2) |
| Source Current | 30 mA or lower |
| Wave Frequency | 2.4 GHz |
| Modulation | FSK |
| Number of Channel | 1–6, (ALL for 6 CH) |
| Ambient Temperature | -10–50 ºC (Non-condensing) |
| Reaching Distance | 30 m (varies depending on the condition) |
| Product Size | W 30 mm x H 163 mm x D 15 mm |
| Product Weight | Approx. 36 g |
FM Remote-Control Transmitter 2.4G

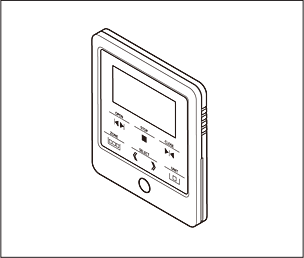

Parts Name
| ① | Open Button |
| ② | Stop Button |
| ③ | Close Button |
| ④ | Zone Selection Button |
| ⑤ | Unit Selection Button |
| ⑥ | “Right” Scroll Button |
| ⑦ | “Left” Scroll Button |
| ⑧ | Holder |
| ⑨ | Battery (4A dry cell batteries: 3 pcs.) |
Specification
| Source Voltage | DC 4.5V (3A dry cell batteries × 3) |
| Source Current | 90 mA or lower |
| Wave Frequency | 2.4 GHz |
| Modulation | One-way/Broadcast |

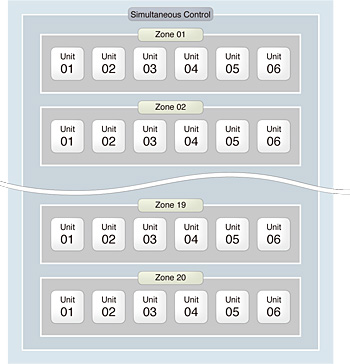

| Number of Channel | 20 Zones x 6 Units (Max. 120 Units) |
| Ambient Temperature | -10–50℃ (Non condensing) |
| Reaching Distance | 30 m (varies depending on the condition) |
| Product Size | W100 mm × H115 mm × D29 mm (main body only) |
| Product Weight | 290 g (Batteries included) |

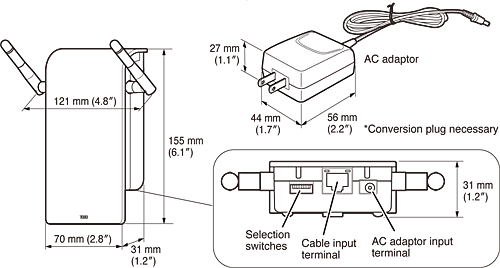

FM Remote-Control Transmitter 2.4G
Specification
| Source Voltage | AV 100V–240V (AC adaptor) |
| Source Current | 40 mA |
| Power Frequency | 50/60 Hz |
| Reception Frequency | 2.4 GHz |
| Ambient Temperature | -10–50℃ (Non condensing) |
| Reaching Distance | 100 m (varies depending on the condition) |
| Antenna | External |
| Product Weight | Approx. 140 g |
| Product Size | W70 mm × H155 mm × D31 mm (main body only) |
Support for Products
| Product | Transmitter | Receiver | Connector | Terminal Block | Relay | ||||
| Transmitter 2.4G | Multi Transmitter 2.4G | Receiver 2.4G | Receiver 2.4G with IR terminal | Powerful 4P type | Non Voltage type | Modular Cord (6 pores, 4 cores) | Relay Unit 2.4G | ||
| 02390040 | 30006411 | 02390043 | 02390042 | 02390035 | 02390036 | 02380002 | 30006412 | ||
| Motorized Curtain Tracks | Powerful 3L Powerful 3L-HM Powerful Little N3L Powerful 4P Powerful 4P-HL Powerful 4P-HM Powerful G4P | ○ | ○ | ○ | – | ○ | – | – | ○ |
| Progress 25/50 | ○ | ○ | – | ○* | – | – | ○ | ○ | |
| ○* | – | – | ○ | – | |||||
| Ti-8040 | ○ | ○ | ○ | – | – | ○ | – | ○ | |
| Motorized Venetian Blinds | Venewood AT | ○ | ○ | ○ | – | – | ○ | – | ○ |
| Motorized Roller Blinds | ATF35-RB ATF45-RB | ○ | ○ | ○ | – | ○ | – | – | ○ |
| Motorized Roman Shade | ATF35-RS ATF45-RS | ○ | ○ | ○ | – | ○ | – | – | ○ |
| Super Liberta | ○ | ○ | ○ | – | – | ○ | – | ○ | |
Basic Wiring and Connecting Diagram

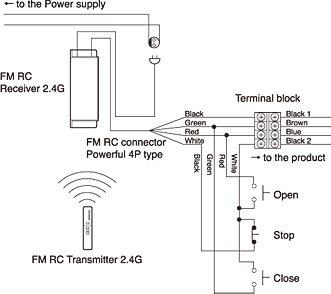

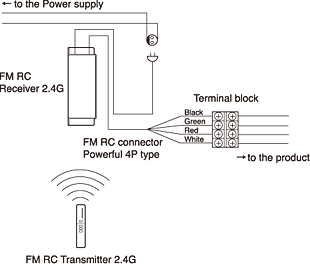

Motorized Curtain Tracks—Powerful 4P, 4P-HL, 4P-HM, G4P

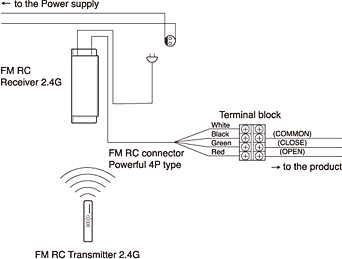

Motorized Venetian Blinds—Venewood AT

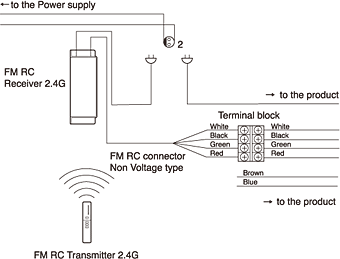

Motorized Roller Blinds/Roman Shades —ATF35-RB, ATF45-RB, ATF35-RS, ATF45-RS
FM Remote-Control Receiver 2.4G with IR Terminal

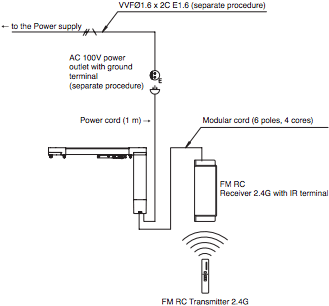

Motorized Curtain Tracks—Progress 25/50
Parts List
| Product Name | Product Code |
| FM Remote-Control Transmitter 2.4G  | 02390040 |
| FM Remote-Control Receiver 2.4G  | 02390043 |
| FM Remote-Control Receiver 2.4G with IR Terminal  | 02390042 |
| Product Name | Product Code |
| FM Remote-Control Connector (Powerful 4P type)  | 02390035 |
| FM Remote-Control Connector (Non Voltage type)  | 02390036 |
| Modular Cord 1 m (six-poles, four-cores)  | 02380002 |
FM Multi Remote-Control Transmitter 2.4G | 30006411 |
FM Remote-Control Relay Unit 2.4G | 30006412 |
