Home / Products / IV Rail
Functional Curtain Tracks
IV Roller Dimensions
Rail Cross Section
Features
Features
New Delac
New Delac Rails
| Size | Product Code | ||
| Silver | White | ||
| 1.82 m (72″) | 00210120 | 00210346 | |
| 2.00 m (79″) | 00210121 | 00210347 | |
| 2.73 m (107″) | 00210122 | 00210348 | |
| 3.00 m (118″) | 00210123 | 00210349 | |
| 3.64 m (143″) | 00210124 | 00210350 | |
| 4.00 m (157″) | 00210125 | 00210351 | |
| Curved Rail (180 mmR/ 7.1″R) | 0.40 m x 0.40 m (16″ x 16″) | 00210126 | – |
| 1.00 m x 1.00 m (39″ x 39″) | 00210035 | – | |
Silver
White
Rails Cross Section
IV ROLLER DIMENSIONS
RAIL CROSS SECTION
Supertrac (for ICU and CCU and operating room applications)
Supertrac Rails
| Size | Product Code | |
| Silver | White | |
| 3.00 m (118″) | 00240023 | 00240087 |
| 4.00 m (157″) | 00240026 | 00240088 |
| Curved Rail (500 mmR/20″R) 1.00 m x 1.00 m (39″ x 39″) (Ordered separately)*1 | 00240058 | – |
Supertrac Rails Cross Section
IV ROLLER DIMENSIONS
RAIL CROSS SECTION
Silver
White
Common Parts
Common Parts
IV Wall Hooks
Slow Return function slowly retracts the hook.
For easier removal of
intravenous bottles or bags,
the hook retracts slowly so
that it does not impede the
hand.
Allowable load: 10 kg (22 lb)
IV Bottles Hooks
IV Bottles Hooks

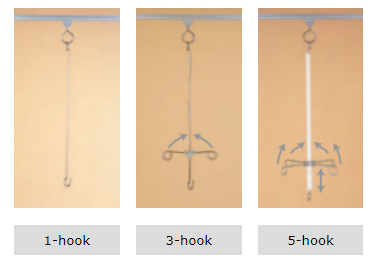

1-hook, 3-hook and 5-hook hangers are available, each in two lengths, for a total of six types. The hanger length of the 5-hook type can be adjusted. And the hooks on the 3- and 5-hook types are foldable for convenience when carrying
and storing.
Specifications
| Products | Hooks | Extension Range | Length | Allowable Load | Materials and Finishes |
| B1000-P5 | 5-hook | 638 mm (25″) ⇔ 1000 mm (39″) | 1000 mm (39″) | Lower hook: 5 kg (11 lb) Intermediate hooks: 1kg (2.2 lb) | Aluminum, Acetal, Zinc die casting |
| B1200-P5 | 738 mm (29″) ⇔ 1200 mm (47″) | 1200 mm (47″) | |||
| A600-P3 | 3-hook | – | 600 mm (24″) | Lower hook: 5 kg (11 lb) Intermediate hooks: 1kg (2.2 lb) | SUS 304 Ø6 |
| A800-P3 | – | 800 mm (31″) | |||
| A600-P1 | 1-hook | – | 600 mm (24″) | Lower hook: 5 kg (11 lb) | |
| A800-P1 | – | 800 mm (31″) |
Precautions Concerning IV Hooks
Securely attach each hook with three of the supplied 4.0 mm (.16″) x 40 mm (16″) pan-head screws.
The weight of an IV bottle causes the runner to lock, but it unlocks if the IV hanger is gently lifted, allowing the runner to move smoothly. Special plastic used for the runner wheels assures the runners are extremely quiet.
Rails
Straight
U-shaped curve
O-shaped curve
Materials and Finishes
| Parts | Material | Finish | |||||
|---|---|---|---|---|---|---|---|
|
Roller |
Plate |
Hard polyethylene |
- |
||||
|
Wheel |
Polyester elastomer |
||||||
|
Oval ring |
Stainless steel |
||||||
|
Cover TopⅡ |
Body |
Polystyrene resin |
White, Light brown, Dark brown |
||||
|
Cap |
Polystyrene resin |
White, Light brown, Dark brown |
|||||
|
Fixing clip |
Acetal resin |
- |
|||||
New Delac (for hospital ward applications)
| Parts | Material | Finish | |
| Rail | Aluminum alloy extrusion material | Alumite | |
| IV Roller | Wheel | Acetal resin | – |
| Hook | SUS 304 Ø5 | ||
Supertrac (for ICU and CCU and operating room applications)
| Parts | Material | Finish | |
| Rail | Aluminum alloy extrusion material | Alumite | |
| IV Roller | Wheel | Special resin | – |
| Hook | SUS 304 Ø6 | ||
Parts List
New Delac Parts for IV
| Product Name | Product Code | ||
| New Delac IV Roller Allowable load:10 kg (22 lb) |  | 00210052 | |
| New Delac End Stop B |  | Silver | 00210135 |
| White | 00210332 | ||
| New Delac Splice (for Aluminum Rail) |  | 00210128 | |
Supertrac Parts for IV
| Product Name | Product Code | |
| Supertrac IV Roller For a curve rail, use it together with a rail of 300 mmR (12″R) or longer. |  | 00240001 |
Supertrac End Cap | Silver | 00240019 |
| White | 00240073 | |
| Product Name | Product Code | |
Supertrac End Stop | Silver | 00240020 |
| Supertrac Splice (for Aluminum Rail) |  | 00240004 |
IV Hooks
| Product Name | Product Code | |
| IV Bottles Hook Allowable load:10 kg (22 lb) |  | 01080010 |
| IV Bottles Hook 30GN Allowable load:30 kg (66 lb) |  | 01080012 |
| IV Wall Hook Allowable load:10 kg (22 lb) |  | 01080013 |
| Product Name | Product Code | |
IV Bottles Hook | A600-P1 | 00450005 |
| A800-P1 | 00450004 | |
IV Bottles Hook | A600-P3 | 00450013 |
| A800-P3 | 00450015 | |
IV Bottles Hook | B1000-P5 | 00450019 |
| B1200-P5 | 00450020 | |
