Decorative Curtain Tracks
Legato Primo
Smooth rollers
Wave Style
Features
Features
- Basic design with linear beauty and wooden taste.
- Versatile, elegantly designed rail.
- The ability to select from a wide variety of End Caps and combine them with optional parts significantly
enhances design flexibility and functionality.

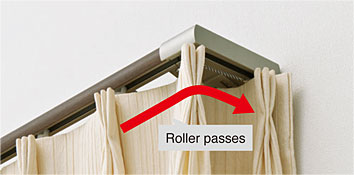

End Cap R
Efficiency

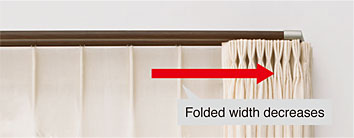

Folded curtains settle into the End Cap R, making for a wider space when curtains are opened.
End Cap R offers better light-blocking and energy
efficiency. It also eliminates the need for Return Aids.
*Pitch Keep Chains are included to ensure curtains fold neatly on both sides. Use of Pitch Keep Chains (75 mm/3.0″) is optional.
*Magnet Carriers cannot be pass the rail in End Cap R.
The curtain width = Rail length + the rail in End Cap R
End Cap M
Swiftly
Attach a Return Aids for End Stop on the cap to close the curtains more swiftly and easily, and avoid entering in the outside light from the side.
End Cap C
Stop Light
Stops light from leaking in from the side of the wall.

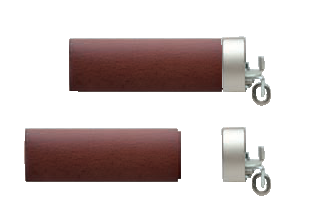

End Cap B
Detachable
The metal part of the End Cap B is detachable, as needed for the installation location.
*Detach with a screwdriver.
Ceiling Attachment
Attachment
Use the Ceiling Bracket for ceiling installations. *Not attachable for End Cap A.
Curtain Stopper (Option)
Stopper
Keeps the curtain in place when drawn open.
Side MG Carrier (Option)
Side MG Carrier
The Side MG Carrier lets you draw in the curtains from either end of the rail. Bundled curtains on the sides stay clear of windows when they open and close.

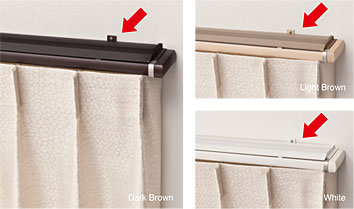

Cover Top (Option)
Cover Top
Installing the Cover Top stops air flow and external light from above curtains and helps to lower heating and cooling bills. Cover Tops are installed by simply securing Fixing Clips to brackets.
Cover Top can be used on existing Legato Primo, so that can be a part of remodeling plans.
Covers come in either light brown, dark brown or white.
Installing a Cover Top greatly reduces the amount of external light leaking in over the top and from around the sides of curtains.
*Cover Top lengths must be measured to leave 5 mm (.20″) of space on the left and right sides to accommodate the left and right caps.
*Cover Top does not block all external light.

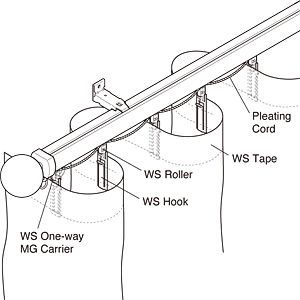

Wave Style
Wave
- The Wave Style brings out the feeling of naturally fabric.
- With its tape and accessories, natural and elegant symmetrical waves are created. The Pleating Cord keeps the waves evenly shaped, making the curtain rich and stylish. Features unique WS Roller and WS Hooks that allow the curtain fabric to from natural waves.
Lineup
Lineup

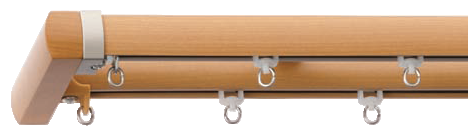

End Cap A
White Grain
Natural Grain
Light Grain

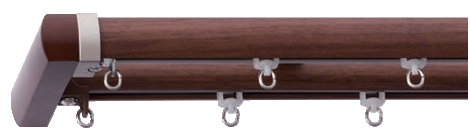

Walnut
Dark Mahogany
End Cap B
White Grain
Natural Grain
Light Grain
Walnut
Dark Mahogany

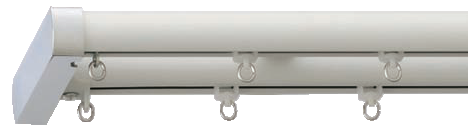

End Cap C
White Grain (Cap: Pearl Beige)
Natural Grain (Cap: Pearl Beige)
Light Grain (Cap: Pearl Beige)
Walnut (Cap: Silver)
Dark Mahogany (Cap: Pearl Beige)

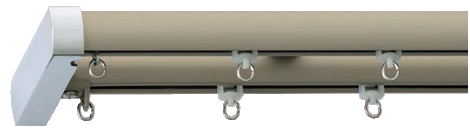

Mist Silver (Cap: Silver)
Pearl Gray (Cap: Silver)

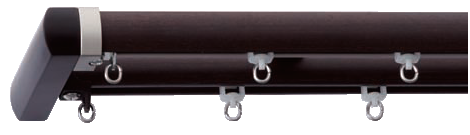

End Cap M (Single/Double)
White Grain(Single)
Natural Grain(Single)
Light Grain(Double)
Walnut(Double)
Dark Mahogany(Double)
Mist Silver (Cap: Silver)*
Pearl Gray (Cap: Silver)*
*Mist Silver and Pearl Gray are double type only.
End Cap R
White Grain
Natural Grain
Light Grain
Walnut
Dark Mahogany
*End Cap R is double type only
For details of price list, lineup, installation dimensions, etc.,
go to the WEB catalog
Materials and Finishes
| Parts | Material | Finish |
| Rail | Aluminum alloy extrusion material | Olefin resin coating film wrapping: White grain, Natural grain, Light grain, Walnut, Dark mahogany |
| Etching almite:Mist silver, Pearl gray | ||
| End Cap A | ABS resin, Wood | White grain, Natural grain, Light grain, Walnut, Dark mahogany |
| End Cap B | ABS resin, Wood | White grain, Natural grain, Light grain, Walnut, Dark mahogany |
| End Cap C | ABS resin | Pearl beige, Nickel chromium plating |
| End Cap M | ABS resin, Wood | White grain, Natural grain, Light grain, Walnut, Dark mahogany |
| ABS resin | Nickel chromium plating | |
| End Cap R | Steel, ABS resin | Pearl beige |
| Parts | Material | Finish | |
| Bracket | Body | Steel | – |
| Hook | Polyacetal | ||
| Roller | Plate | Hard polyethylene | – |
| Wheel | Polyester elastomer | ||
| Oval ring | Stainless steel | ||
| Cover Top | Body | Polystyrene resin | White, Light brown, Dark brown |
| Cap | Polystyrene resin | White, Light brown, Dark brown | |
| Fixing clip | Acetal resin | – | |

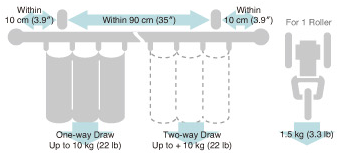

Allowable Curtain Load
Installation
Installation and Caps Dimensions
Caps Dimension
Ceiling Attachment
Ceiling Double Bracket Bracket width = 19 mm (.75″)
Wall Attachment
Extra Single Bracket
Bracket width = 18 mm (.71″)
Double Bracket
Bracket width = 18 mm (.71″)
End Caps
End CapA
End CapB
End Cap C
Front view
Side view
End Cap M (Single)
Front view
Side view
End Cap M (Double)
End Cap M (Double) Front view (Silver)
Side view
Front view
Installation dimension

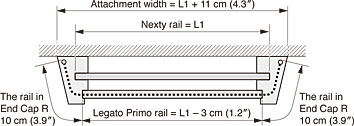

End Cap R Front view
Side view
Bottom view
Front view
Installation dimension

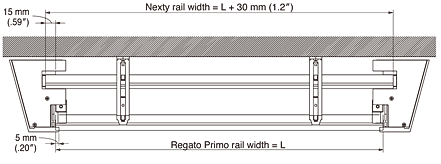

Top view

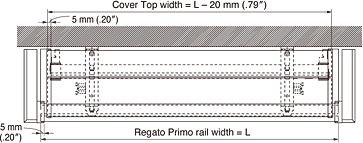

Cover Top Ⅱ
Installation dimension
Top view
Front view
Top view

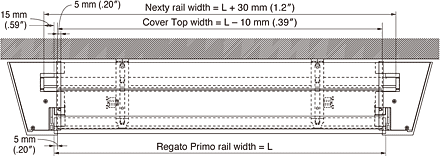

Cover Top R
Top view
Installation dimension
COVER TOP SET
Legato Primo Cover Top Set
| Size | Product Code | ||
| White | Light Brown | Dark Brown | |
| 2.01 m (79″) | 30004143 | 30004139 | 30004141 |
| 3.01 m (119″) | 30004144 | 30004140 | 30004142 |
Contents of Set: Cover Top (1 pc), Cover Top Cap (1 set), Cover Top Fixing Clip (2.01 m/79″ or less=3 pcs, 2.02 m/80″ to 3.01 m/119″=5 pcs)
*The Cover Top length is 20 mm (.79″) less than Legato Primo rail.
Legato Primo Cover Top R Set
| Size | Product Code | ||
| White | Light Brown | Dark Brown | |
| 1.96 m (77″) | 30004149 | 30004145 | 30004147 |
| 2.96 m (117″) | 30004150 | 30004146 | 30004148 |
Contents of Set: Cover Top (1 pc), Cover Top Cap (1 set), Cover Top Fixing Clip (1.96 m/77″=3 pcs, 2.96 m/117″=5 pcs)
*The Cover Top length is 10 mm (.39″) less than Legato Primo rail.
Rails
Legato Rails
Legato Square Rails
| Size | Product Code | ||||
| White Grain | Natural Grain | Light Grain | Walnut | Dark Mahogany | |
| 1.13 m (44″) | 30002616 | 30002618 | 30002620 | 30002622 | 30002624 |
| 2.03 m (80″) | 30000323 | 30000324 | 30000325 | 30000326 | 30000327 |
| 3.03 m (119″) | 30000328 | 30000329 | 30000330 | 30000331 | 30000332 |
| 4.03 m (159″) | 30002617 | 30002619 | 30002621 | 30002623 | 30002625 |
| Size | Product Code | ||||
| White Grain | Natural Grain | Light Grain | Walnut | Dark Mahogany | |
| 2.00 m (79″) | 03570069 | 03570144 | 03570543 | 03570065 | 03570067 |
| 3.00 m (118″) | 03570139 | 03570146 | 03570545 | 03570150 | 03570154 |
| 4.00 (158″) | 033570141 | 03570148 | 03570547 | 03570152 | 03570156 |
*For the rail of the window side, Nexty is used.
Parts List
| Product Name | Product Code | ||
| End Caps | End Cap A | White Grain | 05130001 |
| Natural Grain | 05130002 | ||
| Light Grain | 30000534 | ||
| Walnut | 05130003 | ||
| Dark Mahogany | 05130004 | ||
End Cap B | White Grain | 05130005 | |
| Natural Grain | 05130006 | ||
| Light Grain | 30000535 | ||
| Walnut | 05130007 | ||
| Dark Mahogany | 05130008 | ||
End Cap C  | Pearl Beige | 05130009 | |
| Silver | 05130010 | ||
End Cap M (Single) | White Grain | 30000529 | |
| Natural Grain | 30000530 | ||
| Light Grain | 30000531 | ||
| Walnut | 30000532 | ||
| Dark Mahogany | 30000533 | ||
End Cap M (Double) | White Grain | 05130011 | |
| Natural Grain | 05130012 | ||
| Light Grain | 30000536 | ||
| Walnut | 05130013 | ||
| Dark Mahogany | 05130014 | ||
| Silver | 05130015 | ||
End Cap R | Pearl Beige | 30004083 | |
Cover Top Cap | White | 30004151 | |
| Light Brown | 30004153 | ||
| Dark Brown | 30004152 | ||
Curtain Stopper | 03570006 | ||
Nexty End Stop | Plain White | 03570593 | |
| Natural Grain | 03570191 | ||
| Light Grain | 03570594 | ||
| Walnut | 03570111 | ||
| Dark Mahogany | 03570112 | ||
| Mist Silver | 03500088 | ||
| Pearl Gray | 03500089 | ||
Return Aids for End Stop | 00530063 | ||
| Product Name | Product Code | ||
| Rollers | Nexty Roller | 03572457 | |
Nexty MG Carrier | 03570037 | ||
Nexty One-way MG Carrier | 03570038 | ||
Nexty Side MG Carrier | 30000993 | ||
| Brackets | Nexty Extra Single Bracket | Plain White | 03572476 |
| Natural Grain | 03572477 | ||
| Light Grain | 03572478 | ||
| Walnut | 03572481 | ||
| Dark Mahogany | 03572482 | ||
| Mist Silver | 03572483 | ||
| Pearl Gray | 03572484 | ||
Nexty Double Bracket | Plain White | 03570584 | |
| Natural Grain | 03570165 | ||
| Light Grain | 03570585 | ||
| Walnut | 03570107 | ||
| Dark Mahogany | 03570109 | ||
| Mist Silver | 03500104 | ||
| Pearl Gray | 03500105 | ||
| Nexty Ceiling Double Bracket | Plain White | 03570590 | |
| Natural Grain | 03570181 | ||
| Light Grain | 03570591 | ||
| Walnut | 03570182 | ||
| Dark Mahogany | 03570183 | ||
| Mist Silver | 03570179 | ||
| Pearl Gray | 03570059 | ||
| Other Parts | Splice | 05130016 | |
