Legato Square
Smooth rollers
Features
Features
- Linear beauty with flat design wooden taste.
- Versatile lineup suitable for chic and natural taste.
- The ability to select from a wide variety of End Caps and combine them with optional parts significantly enhances design flexibility and functionality.
End Cap R
Shut out external light
End Cap R offers better light-blocking and energy efficiency. It also eliminates the need for Return Aids.
*Pitch Keep Chains are included to ensure curtains fold neatly on both sides. Use of Pitch Keep Chains (75 mm/3.0″) is optional.
*Magnet Carriers cannot be pass the rail in End Cap R.
End Cap M
Shut out external light
End Cap A and End Cap M
Shut out external light
The metal parts of the End Cap A or M are detachable, as needed for the installation location.
*Detach with a screwdriver.
Curtain Stopper ( Ceiling attachment is impossible. )
Convenient
Curtain Stopper (Option)
Side Magnet Carrier (Option)
Cover Top (Option)
Convenient
Installing the Cover Top stops air flow and external light from above curtains and helps to lower heating and cooling bills.
Cover Tops are installed by simply securing Fixing Clips to brackets.
Cover Top can be used on existing Legato Square, so that can be a part of remodeling plans.
Covers come in either light brown, dark brown or white. Installing a Cover Top greatly reduces the amount of external light leaking in over the top and from around the sides of curtains.
*Cover Top lengths must be measured to leave 5 mm (.20″) of space on the left and right sides to accommodate the left and right caps.
*Cover Top does not block all external light.
Best Design Award
Convenient
Natural Grain
Lineup
Lineup
End Cap A
White Grain
Natural Grain
Light Grain
Walnut Grain
Dark Mahogany
End Cap B
White Grain
Natural Grain
Light Grain
Walnut Grain
Dark Mahogany
End Cap M (Single)
White Grain
Natural Grain
Light Grain
Walnut
Dark Mahogany
End Cap M (Double)
White Grain
Natural Grain
Light Grain
Walnut
Dark Mahogany
End Cap M (Double)
White Grain
Natural Grain
Light Grain
Walnut
Dark Mahogany
*End Cap R is double type only.
Materials and Finishes
| Parts | Material | Finish |
| Rail | Aluminum alloy extrusion materia | Olefin resin coating film wrapping: White grain, Natural grain, Light Grain, Walnut, Dark mahogany |
| End Cap A | ABS resin, Wood | Pearl Beige White grain, Natural grain, Walnut, Dark mahogany |
| End Cap B | ABS resin | Pearl Beige |
| End Cap M | ABS resin, Wood | Pearl Beige White grain, Natural grain, Walnut, Dark mahogany |
| End Cap R | Steel, ABS resin | Pearl Beige |
| Parts | Material | Finish | |
| Bracket | Body | Steel | – |
| Hook | Polyacetal | ||
| Roller | Plate | Hard polyethylene | – |
| Wheel | Polyester elastomer | ||
| Oval ring | Stainless steel | ||
| Cover Top | Body | Polystyrene resin | White, Light brown, Dark brown |
| Cap | Polystyrene resin | White, Light brown, Dark brown | |
| Fixing clip | Acetal resin | – | |

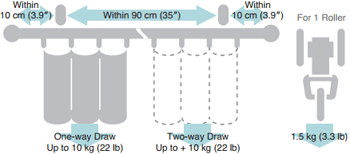

Allowable Curtain Load
Installation
Installation and Caps Dimensions
Caps Dimension
Wall Attachment
Extra Single Bracket
Bracket width=18mm(.71")
Double Bracket
Bracket width=18mm(.71")
End Caps
Single Bracket
End Cap B
End Cap M (Single)
End Cap M (Double)
End Cap R

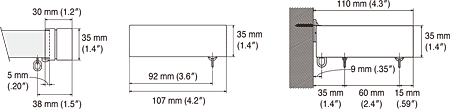

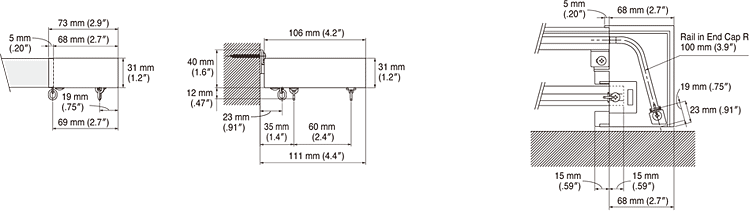

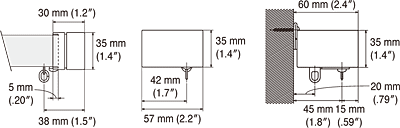

Front / Side / Bottom View
Top view

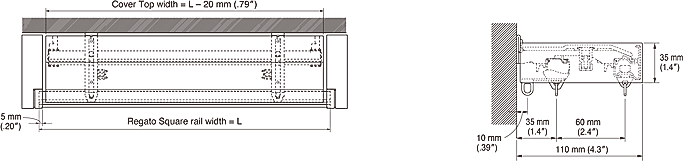

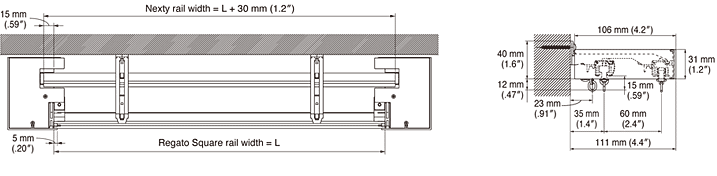

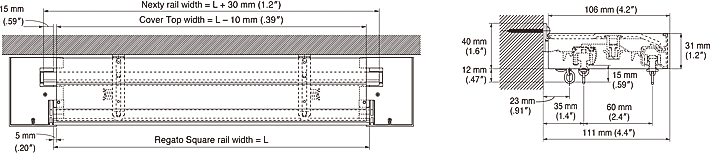

Cover Top
Cover Top R
Cover Top Set
Legato Square Cover Top Set
| Size | Product Code | ||
| White | Light Brown | Dark Brown | |
| 2.01 m (79″) | 30004156 | 30000429 | 30002148 |
| 3.01 m (119″) | 30004157 | 30000430 | 30002149 |
Contents of Set: Cover Top (1 pc), Cover Top Fixing Clip (2.01 m/79″ or less= 3 pcs, 2.02 m/80″ to 3.01 m/119″=5 pcs)
*The Cover Top length is 20 mm (.79″) less than Legato Square rail.
Legato Square Cover Top R Set
| Size | Product Code | ||
| White | Light Brown | Dark Brown | |
| 1.96 m (77″) | 30004158 | 30002659 | 30002661 |
| 2.96 m (117″) | 30004159 | 30002660 | 30002662 |
Rails
Legato Square Rails
| Size | Product Code | ||||
| White Grain | Natural Grain | Light Grain | Walnut | Dark Mahogany | |
| 1.13 m (44″) | 30002616 | 30002618 | 30002620 | 30002622 | 30002624 |
| 2.03 m (80″) | 30000323 | 30000324 | 30000325 | 30000326 | 30000327 |
| 3.03 m (119″) | 30000328 | 30000329 | 30000330 | 30000331 | 30000332 |
| 4.03 m (159″) | 30002617 | 30002619 | 30002621 | 30002623 | 30002625 |
Nexty Rails
| Size | Product Code | ||||
| White Grain | Natural Grain | Light Grain | Walnut | Dark Mahogany | |
| 2.00 m (79″) | 03570069 | 03570144 | 03570543 | 03570065 | 03570067 |
| 3.00 m (118″) | 03570139 | 03570146 | 03570545 | 03570150 | 03570154 |
| 4.00 (158″) | 033570141 | 03570148 | 03570547 | 03570152 | 03570156 |
Parts List
| Product Name | Product Code | ||
End | End Cap A
| White Grain | 30000333 |
| Natural Grain | 30000334 | ||
| Light Grain | 30000335 | ||
| Walnut | 30000336 | ||
| Dark Mahogany | 30000337 | ||
End Cap B
| Pearl Beige | 30000338 | |
End Cap M (Single)
| White Grain | 30000339 | |
| Natural Grain | 30000340 | ||
| Light Grain | 30000341 | ||
| Walnut | 30000342 | ||
| Dark Mahogany | 30000343 | ||
End Cap M (Double)
| White Grain | 30000344 | |
| Natural Grain | 30000345 | ||
| Light Grain | 30000346 | ||
| Walnut | 30000347 | ||
| Dark Mahogany | 30000348 | ||
End Cap R
| Pearl Beige | 30004104 | |
Curtain Stopper
| 03570006 | ||
Nexty End Stop
| Plain White | 03570593 | |
| Natural Grain | 03570191 | ||
| Light Grain | 03570594 | ||
| Walnut | 03570111 | ||
| Dark Mahogany | 03570112 | ||
Return Aids for End Stop
| 00530063 | ||
| Product Name | Product Code | ||
| Rollers | Nexty Roller
| 03572457 | |
Nexty Magnet Carrier
| 03570037 | ||
Nexty One-way Magnet Carrier
| 03570038 | ||
Nexty Side Magnet Carrier
| 30000993 | ||
| Brackets | Nexty Extra
| Plain White | 03572476 |
| Natural Grain | 03572477 | ||
| Light Grain | 03572478 | ||
| Walnut | 03572481 | ||
| Dark Mahogany | 03572482 | ||
Nexty Double
| Plain White | 03570584 | |
| Natural Grain | 03570165 | ||
| Light Grain | 03570585 | ||
| Walnut | 03570107 | ||
| Dark Mahogany | 03570109 | ||
| Other Parts | Splice
| 05130016 | |
