Mytec AT-K220
Motorized Roller
Simplified Design
Features
Features
- Motorized roller blind with ultra-quiet operation. Its synchronous motors allow different sizes
of roller blinds to go up and down at the same speed. - Power consumption is drastically reduced. Ideal for environment-friendly buildings and offices.
- The small gap (14 mm per side) between the screen and main body.
- The snap bracket is available for easy installation and removal.
Mytec AT-K220’s Unique Features 2
Smooth operation.
Motorized Roller Blind
The motorized Roller Blind, Mytec AT-K220 operates noiselessly. (35 dB or less in a no-load state).
Infra-red Remote-control Receiver
The Controller and Infra-red Remote-control Receiver are built into the Set Bar for high visual appeal.
Simplified design.
The small gap (14 mm per side) between the screen and main body simplifies the design.
Operated by the synchronous motor:
Operated by the synchronous motor: Roller Blinds of different sizes and weights rise in unison when several blinds go up and down at the same time.

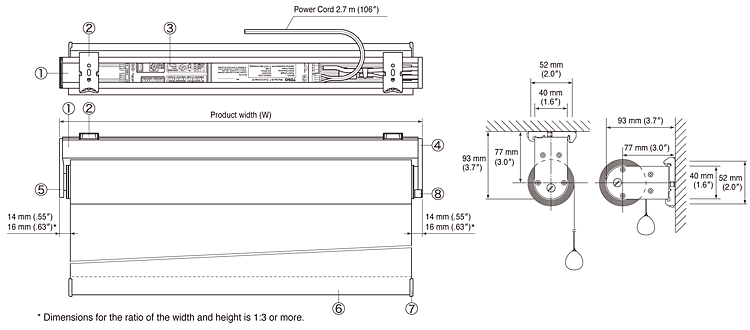

Structure Drawing
Structure Drawing
Product View
| No. | Components | Material |
| ① | MTAT Set Bar | Aluminum |
| ② | MT03 Bracket | Steel, Molded resin |
| ③ | MTAT Main Controller | － |
| ④ | Side Holder Receiver Side | Steel, Molded resin |
| No. | Components | Material |
| ⑤ | Side Holder | Steel, Molded resin |
| ⑥ | MT03 Weight Bar | Molded resin |
| ⑦ | MT03 Weight Bar Cap | Molded resin |
| ⑧ | Infra-red Remote-Control Receiver | Molded resin |

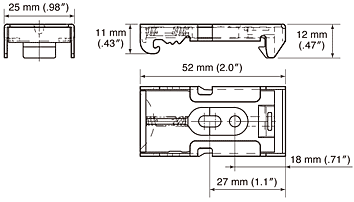

Bracket
Weight Bar
| Product Width | Number of Bracket |
| 1400 mm (55″) or less | 2 |
| 1405 mm (55″) –2000 mm (79″) | 3 |
| 2005 mm (79″) or more | 4 |
Motor Specifications
| Rated voltage | AC220V |
| Rated frequency | 50/60Hz |
| Power consumption | During standby 1W/ During operation 9W |
| Operating voltage | DC5V |
| Operating current | 1mA |
| Rated frequency | 21/25rpm |
| Working temperature range | 0–50°C (No condensation) |
| Rated time | Continuous operation 2 minutes |
Allowable Size
| Width | 600–2400 mm (24–94″) |
| Height | 500–3000 mm (20–118″) |
| Ratio (W:H) | 1:8 (limit) |
Product Weight
4.1 kg (9.0 lb)
(width: 2000 mm/79″ without screen)
*When using Balancer N
*When using Balancer N
Typical Roll-up Diameter
Height Class (Thickness) | 400 mm (16″) | 800 mm (32″) | 1200 mm (47″) | 1600 mm (63″) | 2000 mm (79″) | 2400 mm (94″) | 2800 mm (110″) | 3000 mm (118″) | |
| A | –0.20 mm (–.008″) | 46 mm (1.8″) | 47 mm (1.9″) | 48 mm (1.9″) | 50 mm (2.0″) | 51 mm (2.0″) | 52 mm (2.0″) | 53 mm (2.1″) | 53 mm (2.1″) |
| B | 0.21–0.30 mm (.008–.012″) | 47 mm (1.9″) | 49 mm (1.9″) | 50 mm (2.0″) | 52 mm (2.0″) | 53 mm (2.1″) | 55 mm (2.2″) | 56 mm (2.2″) | 57 mm (2.2″) |
| C | 0.31–0.40 mm (.012–.016″) | 48 mm (1.9″) | 50 mm (2.0″) | 52 mm (2.0″) | 54 mm (2.1″) | 56 mm (2.2″) | 58 mm (2.3″) | 60 mm (2.4″) | 60 mm (2.4″) |
| D | 0.41–0.50 mm (.016–.020″) | 49 mm (1.9″) | 51 mm (2.0″) | 54 mm (2.1″) | 56 mm (2.2″) | 59 mm (2.3″) | 61 mm (2.4″) | 63 mm (2.4″) | 64 mm (2.5″) |
| E | 0.51–0.60 mm (.020–.024″) | 50 mm (2.0″) | 53 mm (2.1″) | 56 mm (2.2″) | 58 mm (2.3″) | 61 mm (2.4″) | 63 mm (2.4″) | 66 mm (2.6″) | 67 mm (2.6″) |
| F | 0.61–0.70 mm (.024–.028″) | 50 mm (2.0″) | 54 mm (2.1″) | 57 mm (2.2″) | 60 mm (2.4″) | 63 mm (2.4″) | 66 mm (2.6″) | 69 mm (2.7″) | 70 mm (2.8″) |
| G | 0.71–0.80 mm (.028–.032″) | 51 mm (2.0″) | 55 mm (2.2″) | 59 mm (2.3″) | 62 mm (2.4″) | 65 mm (2.6″) | 69 mm (2.7″) | 72 mm (2.8″) | 73 mm (2.9″) |
| H | 0.81–0.90 mm (.032–.035″) | 52 mm (2.0″) | 56 mm (2.2″) | 60 mm (2.4″) | 64 mm (2.5″) | 68 mm (2.7″) | 71 mm (2.8″) | 74 mm (2.9″) | – |
| I | 0.91–1.00 mm (.036–.039″) | 53 mm (2.1″) | 57 mm (2.2″) | 62 mm (2.4″) | 66 mm (2.6″) | 70 mm (2.8″) | 73 mm (2.9″) | – | – |
- The roll-up diameter might be actually different.
- Please contact our local agent for another size.

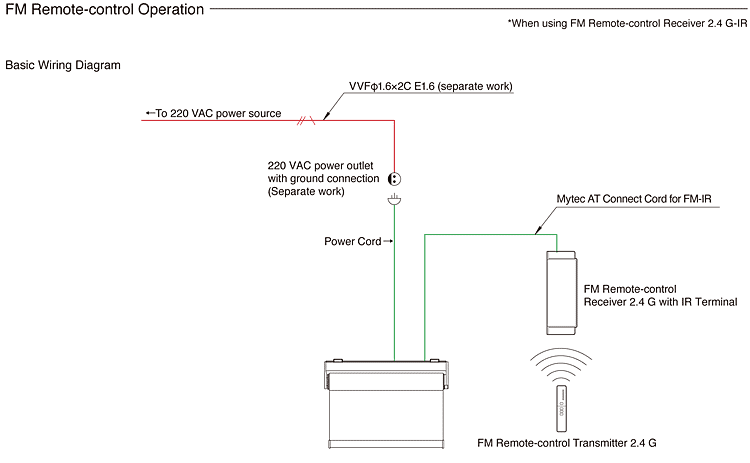

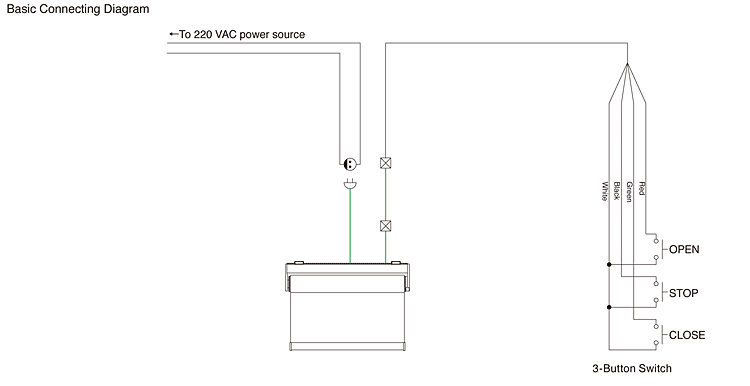

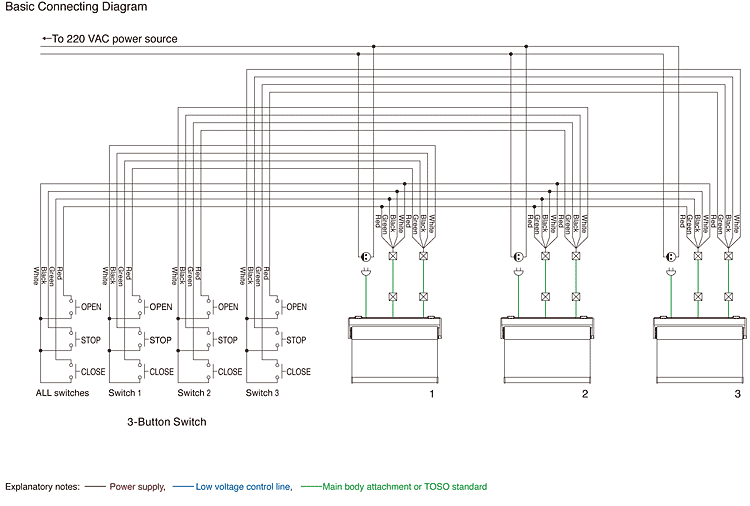

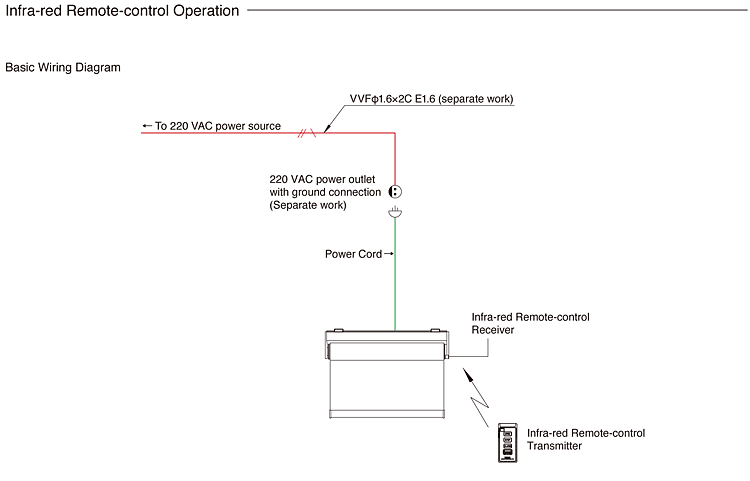

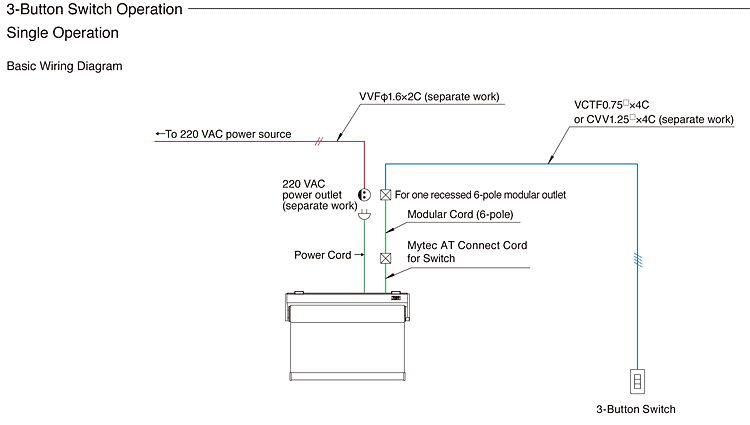

Basic Wiring and Connecting Diagram
- Dimensions for the ratio of the width and height is 1:3 or more.

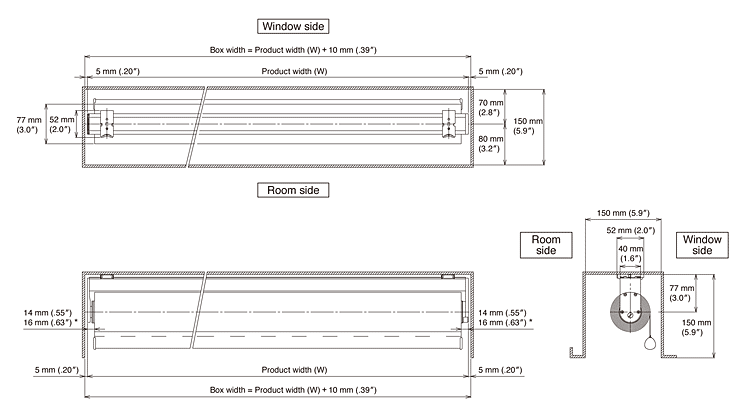

Overall Structure Drawing
Body & Parts List
Mytec AT-K220 Body
| Product Name |
| Mytec AT-K220 *Cord length: 2.7 m (106″) |
Mytec AT-K220 Parts
| Product Name | Operation | Product Code | |||
| Infra-red Remote-Control Receiver | FM Remote-Control Receiver 2.4G with IR | FM Remote-Control Receiver 2.4G | 3-Button Switch | ||
| Infra-red Remote-Control Receiver 01  *Use if the receiver part is not exposed. *Cord length: 0.7 m (28″) *Available changing angle approx. 60˚. | ○ (*1) | – | – | – | 00510184 |
Infra-red Receiver 01 Connect Cord  *Use if the receiver part is not exposed. | ○ (*1) | – | – | – | 04800002 |
Infra-red Remote-Control Transmitter 01N | ○ (*2) | – | – | – | 00510297 |
Infra-red Remote-Control Transmitter 02 | – | – | – | 00510281 | |
FM Remote-Control Transmitter 2.4G | – | ○ (*2) | ○ (*2) | – | 02390040 |
| FM Multi Remote-Control Transmitter 2.4G  | – | – | 30006411 | ||
| FM Remote-Control Receiver 2.4G with IR Terminal  | – | ○ | – | – | 02390042 |
| FM Remote-Control Receiver 2.4G  | – | – | ○ | – | 02390043 |
| FM Remote-Control Connector (Non Voltage type)  | – | – | ○ | – | 02390036 |
| Modular Cord (6-pole, 4-core) with Terminal  | – | – | ○ | – | 00510229 |
Mytec AT Connect Cord for FM-IR  *Cord length: 0.7 m (28″) | – | ○ | – | – | 30005768 |
| Mytec AT Connect Cord for Switch  | – | – | ○ | ○ | 30006833 |
 MO Inlay SwitchWide 3 Buttons A | – | – | – | ○ | 00510307 |
 MO Wide SwitchWide Plate 1 Row | – | – | – | ○ | 00510309 |
 Modular Cord 1 m(6-pole, 4-core) | – | – | – | ○ | 02380002 |
Inlay Modular Connector (6-pole) Body 1 Jack | – | – | – | ○ | 00510269 |
MO Switch Plate 1 Button 1 Row | – | – | – | ○ | 00510259 |
- Use if necessary.
- Use one of the transmitters.
