Functional Curtain Tracks
NDL20
Smooth rollers
Ceiling Attachment

Features
Features
- Standard manually operated curtain tracks perfect for residences, hotels, and hospitals.
- Special Wheel-type Rollers for smooth, quiet operation.
- Consistently smooth, quiet operation through over 10,000 open/close cycles.
High-quality products at reasonable prices
Smooth rollers

- High-quality at reasonable prices made possible by improvements based on years of manufacturing and installation experience.
- Compact, but still able to support curtain weights up to 20 kg.

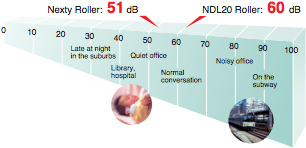

Outstanding performance and quiet operation
- Special Wheel-type Rollers makes smooth, quiet performance.
- Quite operation when used with Nexty Rollers, the noise level is only 51 dB.

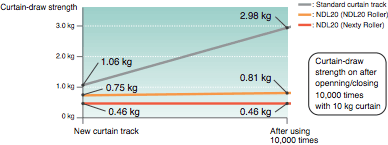

Exceptional durability
Convenient
Consistently smooth, quiet operation through over 10,000 open/close cycles.

Come in two colors variation
Come in Silver or White colors for easy application in residences, hotels, hospitals, and other environments.

Silver

White
Keep external light out of
bedrooms and other spaces
- Effectively darkens rooms when used with
the Overlap Carrier for Hand. - Perfect for bedrooms and other spaces
where shutting out external light is desirable.


Adapts to various types of installation
- Three types of Rollers to match applications and budgets.
- Compatible with New Delac brackets and various configurations.
*Refer to the New Delac catalog for more information on these brackets

Click on
Ceiling Bracket

New Delac NT Double Bracket

New Delac NT Double Bracket

*Pleating cord keeps waves evenly shaped, making the curtain rich and stylish.
*For more details about Wave Style, please refer to the catalog “New Delac with Wave Style Components”.

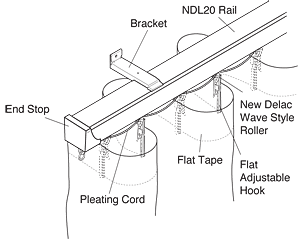

For Wave Style
- The Wave Style creates a feeling of naturally flowing fabric.
- The curtains are draped in gentle waves about 1.5–2.2 times the width of window, resulting in a continuity of pattern and texture.
- There is a natural wave in the curtains at intervals of 80 mm (3.2″).
- With its tape and accessories, it creates natural, elegant symmetrical waves.
Materials and Finishes
Parts | Material | Finish | |
Rail | Silver | Aluminum alloy extrusion material | Alumite |
White | Aluminum alloy extrusion material | Powder coated white | |
Roller | Plate | Hard polyethylene | – |
Wheel | Acetal resin | – | |
Overlap Carrier for Hand | Body | Acetal resin | – |
Arm | SPCC-SD | Zinc plating chromate treatment (White) |
Parts | Material | Finish | ||
Bracket | Body | Silver | SPCC-SD | Zinc plating chromate treatment |
White | SPCC-SD | Acrylic white | ||
Hook | Polyacetal Acetal resin | – | ||
Click on Bracket | Body | Silver | Stainless steel | – |
White | Acrylic white | |||
End Stop | Body | Hard polyethylene | – | |
Oval ring | Stainless steel | – |

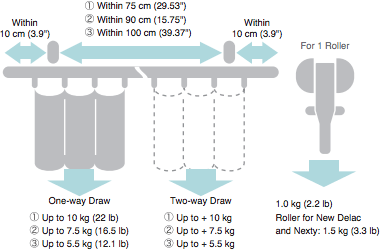

Bracket Installation Interval and Allowable Curtain Load
Installation


Installation Dimensions
Installation
Ceiling Attachment
Click on Ceiling Bracket
Bracket width = 15 mm (.59″)

Wall Attachment

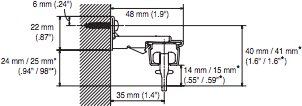

Single Bracket
Bracket width = 19 mm (.75″)

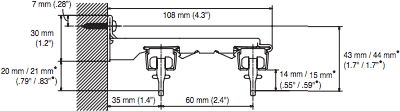

Double Bracket
Bracket width = 19 mm (.75″)

*Measurements apply to use of New Delac Rollers or Nexty Rollers.
Rails
Rail Section

Theatrac Rails
Silver

White

Size | Product Code | |
Silver | White | |
5.0 m (196.9″) | 30001022 | 30001023 |
Parts List
Product Name | Product Code | |
Rollers | NDL20 Roller![]() | 30001025 |
NDL20 MG Carrier![]() | 30001026 | |
NDL20 One-way MG Carrier ![]() | 30001027 | |
NDL20 Overlap Carrier for Hand ![]() (*1) | 30001028 | |
Nexty Roller![]() | 03572457 | |
Nexty MG Carrier![]() | 03570037 |
Product Name | Product Code | ||
Rollers | Nexty One-way MG Carrier | ![]() | 03570038 |
New Delac Roller![]() | Natural | 00210027 | |
New Delac MG Carrier ![]() | Natural | 00210054 | |
New Delac One-way MG Carrier ![]() | Natural | 00210053 | |
New Delac Overlap Carrier for Hand ![]() | 00210006 | ||
New Delac Wave Style Roller Set (100 m) ![]() | 00210355 |
Product Name | Product Code | ||
Brackets | NDL20 Click on Ceiling Bracket ![]() | Silver | 30001034 |
White | 30001035 | ||
NDL20 Single Bracket ![]() | Silver | 30001030 | |
White | 30001031 | ||
NDL20 Double Bracket ![]() | Silver | 30001032 | |
White | 30001033 | ||
End Cap | NDL20 End Stop![]() | 30001036 | |
Other Parts | NDL20 Splice![]() | 30001029 |
