Decorative Curtain Tracks
New Delac
Smooth rollers
Motorized
Features
Features
Using the Overlap MG Carrier for Hand provides better light shielding.
Light Shielding.
The Overlap MG Carrier effectively prevents unwanted light from streaming into a room. Light is kept out even where the curtains overlap in the middle. And the rollers run very smoothly.
*Perfect light shielding may not be possible depending on the type of window and installation method. Please consult a specialist when designing window covering for a darkroom or photo lab.
Use an IV Roller for an IV Rail.
Convenient
New Delac’s exceptional durability and safety make it ideal for use as an IV Rail
in hospitals and other medical institutions. The IV Rollers are also designed to lock
under the weight of an IV bottle. And the wheel parts are made of a special resin
to effectively reduce sliding noise.

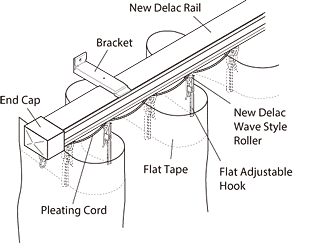

For Wave Style
Wave Style
- The Wave Style creates a feeling of naturally flowing fabric.
- The curtains are draped in gentle waves about 1.5–2.2 times the width of window, resulting in a continuity of pattern and texture.
- There is a natural wave in the curtains at intervals of 80 mm (3.2″).
- With its tape and accessories, it creates natural, elegant symmetrical waves.
*Pleating cord keeps waves evenly shaped, making the curtain rich and stylish.
*For more details about Wave Style, please refer to the catalog “New Delac with Wave Style Components”.
NT Bracket convenient when there is insufficient vertical space for installation
Convenient
This bracket is convenient when there is insufficient vertical space for bracket installation.
It is firmly secured with just two screws.
Brackets with a temporary hook makes installation easier.
Easy Installation
(Excluding Extra Brackets)
This bracket holds a rail while allowong you to adjust a rail position. Once you finish adjusting a position, simply snap the rail into the bracket to secure firmly.
Smooth opening and closing with separate grooves for rollers and traverse cord.
Smooth
Installation is easy and the cord is located in a groove to prevent it from becoming entangled
with the rollers.
The smooth-running rollers also assure easy opening and closing.
Partitioning is flexible, by using the Last-in Intermediate Stop
Flexible Partitioning
Last-in Intermediate Stop is usable both fix and open/close the curtain.
Curtain hook is fixed by turning the hole toward the front.
When the hole is turned sideways, MG Carrier can be attracted.
Can also be used with a Curtain Motor
Smooth
(Powerful Series)
Exceptionally convenient for opening and closing wide curtains, curtains
installed in a high location, and heavy curtains.
Materials and Finishes
| Parts | Material | Finish | |
| Rail | Silver | Aluminum alloy extrusion material | Alumite |
| Umber | Alumite umber | ||
| Black | Alumite black | ||
| White | Alumite white | ||
| Warm white | Alumite Warm white | ||
| Parts | Material | Finish | |
| Roller | Plate | Hard polyethylene | – |
| Wheel | Hard polyethylene | ||
| Oval ring | Stainless steel | ||
| End Cap | Body | Nylon | – |
| Oval ring | Stainless steel | ||
| Bracket | Body | Steel | – |
| Hook | Acetal resin | ||

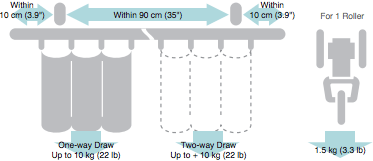

Bracket Installation Interval and Allowable Curtain Load
Installation
Installation and Caps Dimensions
Caps Dimension
Ceiling Attachment
Direct attachment
Ceiling Single Bracket
Bracket width = 18 mm (.71")
Ceiling Double Bracket
Bracket width = 18 mm (.71")
Extra Ceiling Double Bracket
Bracket width = 23 mm (.91")
Wall Attachment
Single Bracket
Bracket width = 19 mm (.75")

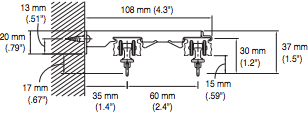

Double Bracket
Bracket width = 19 mm (.75")

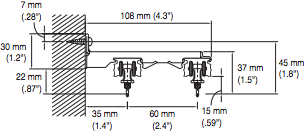

Extra Single Bracket
Bracket width = 24 mm (.94")

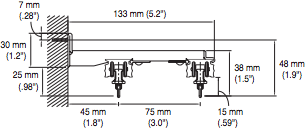

Extra Double Bracket
Bracket width = 25 mm (.98")
NT Double Bracket
Bracket width = 44 mm (1.7")
Overlap Rail
Rails
Nexty Rails
New Delac Rails
Silver
White
Umber
Warm white
Black
| Size | Product Code | |||||
| Silver | Umber | Black | White | Warm white | ||
| 1.82 m (72″) | 00210120 | 00210036 | 30010561 | 00210346 | 00210226 | |
| 2.00 m (79″) | 00210121 | 00210038 | 30010562 | 00210347 | 00210227 | |
| 2.73 m (107″) | 00210122 | 00210039 | 30010563 | 00210348 | 00210228 | |
| 3.00 m (118″) | 00210123 | 00210040 | 30010564 | 00210349 | 00210229 | |
| 3.64 m (143″) | 00210124 | 00210047 | – | 00210350 | 00210230 | |
| 4.00 m (157″) | 00210125 | 00210048 | – | 00210351 | 00210231 | |
| Curved Rail (180 mmR/7.1″R) | 0.40 m x 0.40 m (16″ x 16″) | 00210126 | 00210045 | 30010565 | – | 00210232 |
| 1.00 m x 1.00 m (39″ x 39″) | 00210035 | 00210046 | 30010566 | – | 00210233 | |
| Overlap Rail 0.50 m (20″) | 00210208 | 00210043 | 30010567 | – | 00210234 | |
See features and optional functions in detail in the catalog
Parts List
| Product Name | Product Code | |||
| Roller | Roller (8 pieces per strip)  | Natural | 00210027 | |
| Umber | 00210185 | |||
MG Carrier | Natural | 00210054 | ||
| Umber | 00210186 | |||
One-way MG Carrier | Natural | 00210053 | ||
| Umber | 00210187 | |||
| NN Roller (for last-in) |  | 00210008 | ||
| Noiseless Roller (8 pieces per strip)  | Natural | 00210188 | ||
| Umber | 00210051 | |||
| Noiseless MG Carrier |  | Natural | 00210189 | |
| Umber | 00210050 | |||
| Noiseless One-way MG Carrier |  | Natural | 00210190 | |
| Umber | 00210049 | |||
| Roller | Extra Double Bracket | Silver | 00210109 |
| Umber | 00210082 | ||
| White | 00210329 | ||
| Warm white | 00210157 | ||
Ceiling Single Bracket | Silver | 00210191 | |
| Umber | 00210192 | ||
| Black | 30010576 | ||
| White | 00210326 | ||
| Warm white | 00210193 | ||
Ceiling Double Bracket | Silver | 00210219 | |
| Umber | 00210220 | ||
| Black | 30010577 | ||
| White | 00210327 | ||
| Warm white | 00210221 | ||
Extra Ceiling Double Bracket | Silver | 00210107 | |
| Umber | 00210196 | ||
| White | 00210353 | ||
| Warm white | 00210197 | ||
Overhead Hanger | Silver | 00210105 | |
| Umber | 00210198 | ||
| Black | 30010578 | ||
| White | 00210330 | ||
| Warm white | 00210199 | ||
Wall Bracket | Silver | 00210015 | |
| Umber | 00210201 | ||
| Black | 30010579 | ||
| White | 00210331 | ||
| Warm white | 00210202 |
| Roller | New Delac Wave Style Roller Set (100 m)  | 00210355 | |
| Soundproof Packing Silence effect improves together it with Noiseless Roller.  | 00210023 | ||
Overlap MG Carrier for Hand | 00210006 | ||
| Bracket | Single Bracket | Silver | 00210213 |
| Umber | 00210214 | ||
| Black | 30010574 | ||
| White | 00210324 | ||
| Warm white | 00210215 | ||
Extra Single Bracket | Silver | 00210012 | |
| Umber | 00210084 | ||
| White | 00210328 | ||
| Warm white | 00210155 | ||
Double Bracket | Silver | 00210216 | |
| Umber | 00210217 | ||
| Black | 30010575 | ||
| White | 00210325 | ||
| Warm white | 00210218 | ||
NT Double Bracket | Silver | 00210222 | |
| Umber | 00210223 | ||
| White | 00210352 | ||
| Warm white | 00210224 | ||
*1 For a curved rail, use with a rail with a radius of 240mm (9.4″) or more. A rail with a 180 mm (7.1″) radius can not be used.
| Product Name | Product Code | |||
| End Caps | End Cap | Natural | 00210010 | |
| Umber | 00210086 | |||
| Black | 30010572 | |||
End Stop B | Natural | 00210135 | ||
| Umber | 00210137 | |||
| Black | 30010573 | |||
| White | 00210332 | |||
| Warm white | 00210200 | |||
Last-in Intermediate Stop | 30009046 | |||
Intermediate Stop | 00210134 | |||
Return Aids for End Stop | 00530063 | |||
Cord Draw Parts | Pulley Set | Silver | 00210002 | |
| Umber | 00210081 | |||
| White | 00210333 | |||
| Warm white | 00210159 | |||
Master Roller | 00210262 | |||
| Long Master Roller  | 00210264 | |||
| One-way Master Roller  | 00210001 | |||
Overlap Cord draw Parts Kit | 00210225 | |||
| Traverse Cord 2.8 mm DIA. | White | 00580009 | ||
| Tension Pulley 240 |  | White | 00500005 | |
| Brown | 00500002 | |||
| Tension Pulley 450 |  | Silver | 00500007 | |
| Other Parts | Splice for Aluminum Rail | 00210128 | ||
OT Splice | Silver | 00210024 | ||
| White | 00210323 | |||
Adjustable Hanger Rod A | A170 (130–170 mm /5.1″–6.7″ | Silver | 00290034 | |
| White | 00290038 | |||
| A250 (170–250 mm /6.7″–9.8″ | Silver | 00290036 | ||
| White | 00290039 | |||
| A400 (245–400 mm /9.6″–16″) | Silver | 00290017 | ||
| White | 00290040 | |||
| A700 (395–700 mm /16″–28″) | Silver | 00290016 | ||
| White | 00290041 | |||
| A1100 (595–1,100 mm /23″–43″) | Silver | 00290015 | ||
| White | 00290042 | |||
| A1600 (845–1,600 mm /33″–63″ | Silver | 00290014 | ||
| White | 00290043 | |||
| Other Parts | Adjustable Hanger Rod B | B400 (250–400 mm/ 9.8″–16″) | Umber | 00290013 |
| White | 00290026 | |||
| B700 (400–700 mm/ 16″–28″) | Umber | 00290012 | ||
| White | 00290025 | |||
| IV Roller Allowable load 10 kg (22 lb) |  | 00210052 | ||
