Picture Rail W-2
Add-on rail
Wire type hanger
Features
Features
- The Picture Rail W-2 is suitable for residences, allowable load of 15 kg (33 Ib).
- Beautiful design, inside of the rail can not be seen.
- Available optional parts to “put,” “hook,” and “hang” small goods as well as pictures.
How to Use Picture Rail W-2
W-2 + W Hook 15-A + Hanger 15

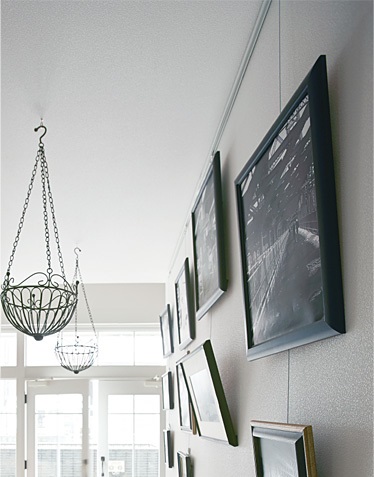

Entrances— Space-saving Picture Rail, available decorating paintings, photographs, flower arrangements, etc. even in a small room.
W-2 + W Hook 15-A + Hanger 15

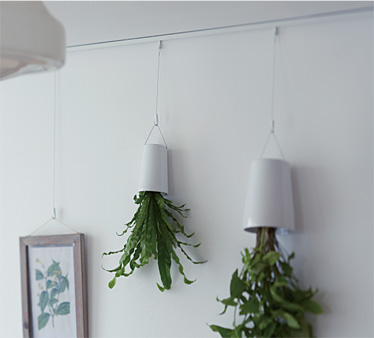

Living Rooms—Hang plants to redecorate the living room. Lightly adopt the seasonal feeling.
Picture Rail W-2
The Picture Rail optimum for residences by installing brackets with allowable load of 15 kg (33 Ib). Compact design, mounting screws can not be seen, and can install clearly at the end of ceiling.
Bracket W-2 + W Hook 15-A
Universal Bracket W-2 + W Hook 15-A
Installation
Installation
Installation Interval and Allowable Load

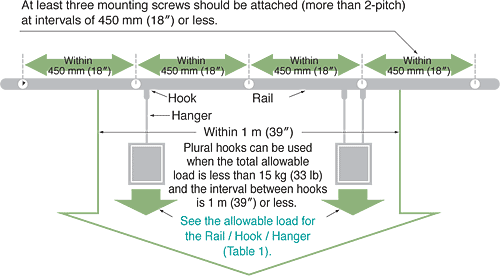

- Plural hooks can be hung when the total allowable load is within 15 kg (33 lb) and the interval between hooks is 1 m (39″) or less.
- Even when hanging a picture with two hangers, the allowable load is 15 kg (33 lb) at maximum. If unexpected trouble occurs during installation, the whole load may tilt to one side and cause a major accident. Remember that the maximum allowable load for a single hanger applies even when hanging a picture with two hangers.
- While more than one picture can be hung, we recommend that you allow a sufficient space between pictures (more than 1 m/39″) to prevent collisions between picture frames during earthquakes, etc.
Allowable Load of the Picture Rail / Hooks / Hangers (Table 1)
| Product Name | Installation Method | ||
| Wall Attachment | |||
| Hooks | W-2 | 15 kg (33 lb) *1 | |
| Allowable Load | W Hook 15-A | 15 kg (33 lb) | |
| Mono Hook 10-A | 10 kg (22 lb) | ||
| Mono Hook 5-A | 5 kg (11 lb) | ||
| Parts Allowable Load Rail | Multifarious Rack 300 | 5 kg (11 lb) | |
| Accessories Tray 300 | 3 kg (6.6 lb) | ||
| Hangers Allowable Load | Hanger 15 | 15 kg (33 lb) | |
| Interior Hanger | Wire A | 10 kg (22 lb) | |
| Cord A | 2 kg (4.4 lb) | ||
Installation Method
Ceiling Attachment
Install for the Rail
Hook the rail to the groove of the bracket.
Push the rail until it snapped fit
Install for the Hook
Insert the hook into the groove under the rail
push in the wall direction
Remove for the Rail
Lift the rail upward.
Pull the bottom of the rail in front and remove the rail.
Install for the Accessories Tray 300
Insert the Accessories Tray 300 into the groove under the rail
and push in the wall direction.
Install for the Multifarious Rack
Simultaneously insert the left and right hook parts into the groove under the rail
Push in the wall direction

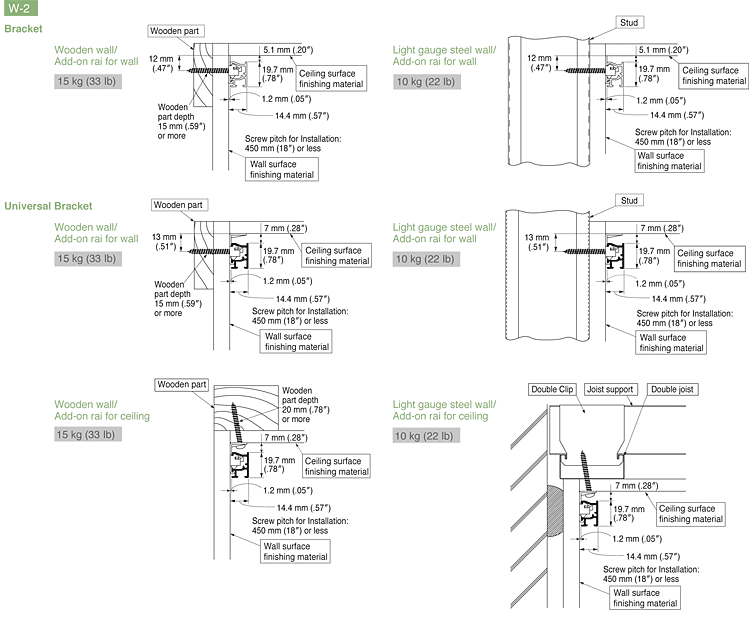

Installation Dimensions and Installation Example
Materials and Finishes
| Product | Color | Material | Finish | |
| Rail W-2 | White | Aluminum alloy extrusion material | Alumite white | |
| End Stop W-2 | White | Polypropylene | white | |
| Bracket | Bracket | White | Steel | white |
| Universal Bracket | ||||
| Hook | W Hook 15-A | White | Zinc die cast | white |
| Mono Hook 10-A | Aluminum die cast | |||
| Mono Hook 5-A | Zinc die cast | |||
| Accessories Tray 300 | Body | White | Aluminum alloy extrusion material | Alumite white |
| Side Cap | – | Rigid polyethylene | – | |
| Multifarious Rack 300 | Body | Silver | SUS 304 | – |
| Fixing parts | Aluminum die cast | Silver | ||
| Tube | – | Vinyl Chloride Resin | – | |
| Hanger 15 | Wire | White | Stainless wire φ1.5 mm (SUS 304) | white |
| Hook | Zinc die cast | |||
| Hanger 15 Hook (Body) | White | Zinc die cast | white | |
Unique Features
Rails
| Product Name | Color | |

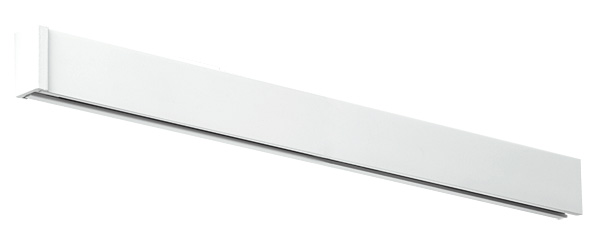

| Add-on rail for wall Attaches to a wall in its existing condition. | W-2 | White |
Hooks

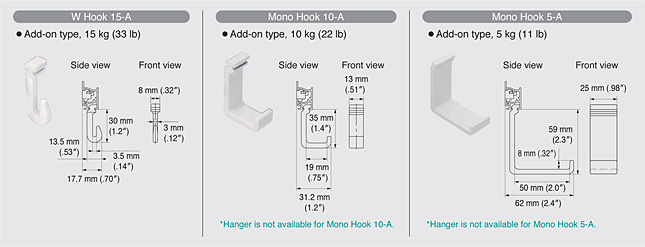

Three types of hook are available in the dedicated W series.

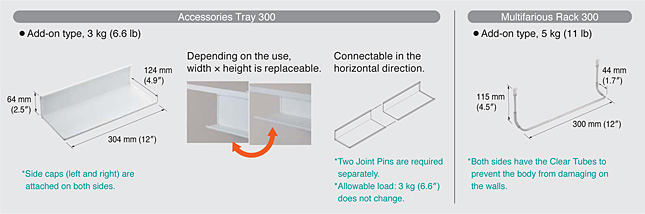

Parts
Available two types accessories.

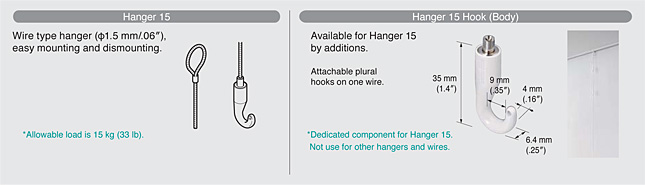

Hanger
Available two types accessories.
Parts List
| Product Name | Color | Product Code | |
Picture Rail W-2 | 1,000 mm (39″) | White | 30005733 |
| 2,000 mm (79″) | 30005724 | ||
| 3,000 mm (118″) | 30005725 | ||
End Stop W-2 | White | 30005727 | |
Bracket W-2 | White | 30005728 | |
Universal Bracket W-2 | White | 30005729 | |
Splice *1 | – | 02620020 | |
| Product Name | Color | Product Code | |
 W Hook 15-A | White | 02620169 | |
 Mono Hook 10-A*Not available for hangers. | White | 02620170 | |
 Mono Hook 5-A*Not available for hangers. | White | 30006332 | |
 Accessories Tray 300*2 | White | 30006331 | |
 Multifarious Rack 300 | – | 30006333 | |
Hanger 15 | 1,000 mm | White | 00470028 |
| 2,000 mm (79″) | 00470029 | ||
Hanger 15 Hook (Body)*3 | White | 30002359 | |
Number of Components
| Installation Area | Rail | End Stop | Bracket | Splice | |
| 2,000 mm | 3,000 mm | ||||
| Up to 1 m (39″) | 1 | – | 2 | 3 | – |
| Up to 2 m (79″) | 1 | – | 2 | 5 | – |
| Up to 3 m (118″) | – | 1 | 2 | 8 | – |
| Up to 4 m (157″) | 2 | – | 2 | 10 | 1 |
| Up to 5 m (197″) | 1 | 1 | 2 | 12 | 1 |
