Motorized Curtain Tracks
Powerful+CM2000
Curve rails
Ready for draperies
Features
Features
Unique Features
- Many types of motorized curve rails are obtainable according to window shapes.
- Ready for use in those motorized rails up to 30 kg (66 lb).
(*for straight rail with Two-way Draw type.)
Motor Specifications
| Item | Powerful 3L Series | Powerful 4P Series | |||||
| Powerful 3L 220 V | Powerful 3L-HM 220 V | Powerful 4P 220 V | |||||
| Rated power voltage | VAC | 220 | 220 | 220 | |||
| Rated power frequency | Hz | 50 | 60 | 50 | 60 | 50 | 60 |
| Rated power current | A | 0.4 | 0.35 | 0.25 | 0.3 | 0.4 | 0.35 |
| Power consumption | W | 80 | 75 | 60 | 70 | 80 | 75 |
| Operating voltage | VAC | Same as power source | Same as power source | Same as power source | |||
| Operating current | A | ||||||
| Time rating | min. | 5 | 5 | 5 | |||
| Overheat protection operating temperature | ˚C | 120±10 | 120±10 | 120±10 | |||
| Internal electric circuit | Built-in Inter rock circuit | Built-in Inter rock circuit | Auto keep circuit, built-in Inter rock circuit | ||||
| Operating switch spec. | Locker switch | Locker switch | 3-button momentary contact switch Open:A contact Stop:B contact Close:A contact | ||||
| Weight of main unit | kg (lb) | 1.8 (4.0) | 1.8 (4.0) | 1.8 (4.0) | |||
| Operating time | sec./m | 5 | 4 | 5 | 4 | 5 | 4 |
| Maximum curtain weight | kg (lb) | Two-way Draw: 30 (66) One-way Draw: 20 (44) | Two-way Draw: 30 (66) One-way Draw: 20 (44) | Two-way Draw: 30 (66) One-way Draw: 20 (44) | |||
| Maximum rail length | m (in) | 4 (158″) | 4 (158″) | 4 (158″) | |||
Applicable Range
| Type of curtain track | CM 2000 | ||||
| Installation Pattern | Straight | Single curve | Two curves | ||
  |   |    | |||
| Power transmission type | Kepler cord | Kepler cord | Kepler cord | ||
| Powerful 3L Powerful 4P | Maximum curtain weight | kg(lb) | One-way draw: 20 (44) | One-way draw: 8 (18) | One-way draw: 4 (9) |
| Two-way draw: 30 (66) One-way draw: 15 (33) | Two-way draw: 10 (22) One-way draw: 5 (11) | Two-way draw: 6 (13) One-way draw: 3 (7) | |||
| Maximum rail length | m(in) | 4 (158″) | |||
| Powerful Little N3L | Maximum curtain weight | kg(lb) | One-way draw: 20 (44) | One-way draw: 8 (18) | One-way draw: 4 (9) |
| Two-way draw: 30 (66) One-way draw: 15 (33) | Two-way draw: 10 (22) One-way draw: 5 (11) | Two-way draw: 6 (13) One-way draw: 3 (7) | |||
| Maximum rail length | m(in) | 4 (158″) | |||
Bending Conditions
| Item | Conditions |
| Radius | 300 mmR (12″R) |
| Overall curve half | 1,000 mmR (39″R) or more (Unit: 10 mm/.39″) |
| Angle | 90° or more |
| Number of curves | Maximum of two |
Stack-off Allowance Guide
| Type | One-way Draw | Two-way Draw | |||||||||||||||||||
| Master Roller | Rail Overlap | ||||||||||||||||||||
| Straight |
|
|
| ||||||||||||||||||
*Number of rollers: 8 pcs per meter. Overlap space for the rail overlap: 300 mm (12″). ℓ : total length. Two-way Draw in the table shows a length of stack-offspace for one (half) panel.

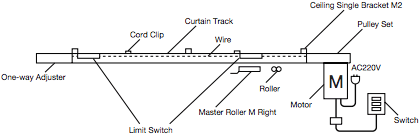

Component Parts
Two-way draw (Master roller)
Installation Dimensions and Diagram

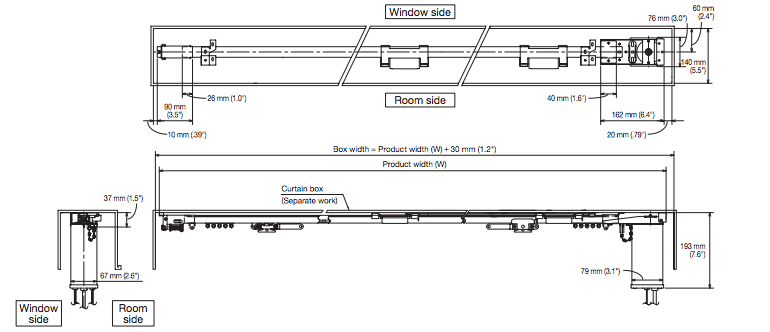

Straight: ceiling single attachment

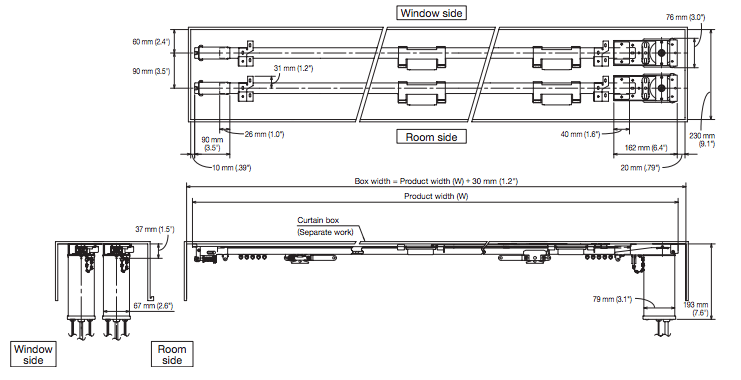

Straight: ceiling double attachment

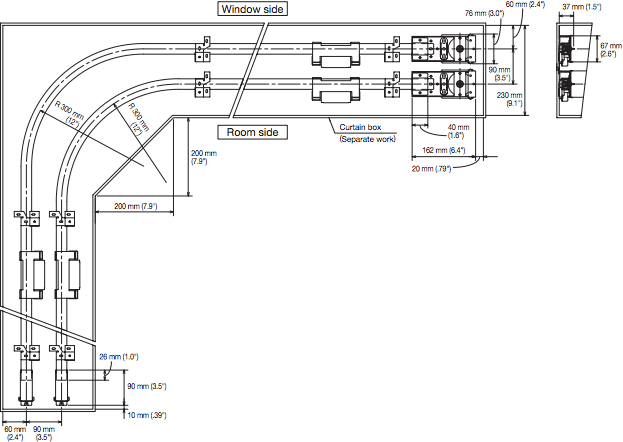

L-shaped curve: ceiling double attachment

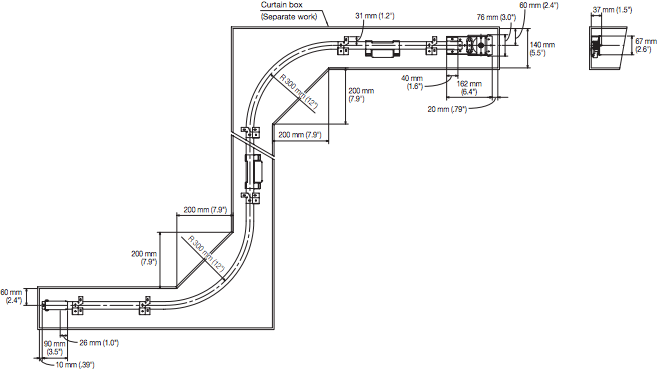

S-sapped curve: ceiling single attachment

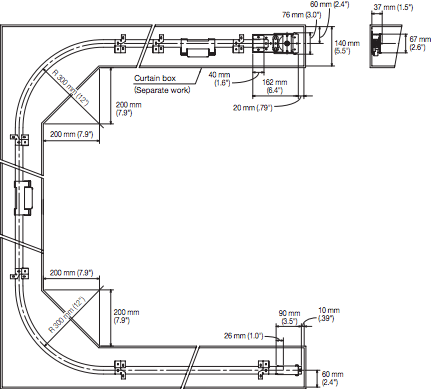

U-shaped curve: ceiling single attachment (Master roller)
Rails
New Delac Rails
CM2000 Rail
| Size | Product Code |
| White | |
| 6.01 m (237″) | 65150001 |
White
Parts List
| Product Name | Product Code |
Ceiling Single Bracket M2 | 00510327 |
| CM2000 Master Roller for Powerful Right  | 00510205 |
| CM2000 Master Roller for Powerful Left  | 01200014 |
| CM2000 Pilot Roller for Powerful Right  | 01200016 |
| Product Name | Product Code | |
CM2000 Limit Switch A Two-way draw: 10 m (394″) or less One-way draw: 5 m (197″) or less Rail overlap (1000 mm/39″): 9 m (354″) or less | Silver | 00510305 |
| White | 00510328 | |
CM2000 Limit Switch B Two-way draw: 10 m (394″) to 20 m (787″) One-way draw: 5 m (197″) to 10 m (394″) Rail overlap (500 mm/20″): 9.5 m (374″) to 19 m (748″) | Silver | 00510306 |
| White | 00510329 | |
Kevler Cord Ø 2.8 | 00510200 | |
| Product Name | Product Code | |
| CM2000 Pilot Roller for Powerful Left  | 01200015 | |
| New Delac Roller (8 pieces per strip)  | Natural | 00210027 |
| New Delac Intermediate Stop |  | 00210134 |
CM2000 Pulley Set | 01200003 | |
CM2000 Adjuster | 00510197 | |
