Motorized Curtain Tracks
Powerful+New Delac
Exceptionally durable
Ready for draperies
Features
Features
Unique Features
Ready for draperies
Exceptionally durable wire used for motor drive transmission.
Ready for draperies up to 10 m (394″) long with 30 kg (66 lb) in weight.
Motor Specifications
| Item | Powerful 3L Series | Powerful 4P Series | |||||
| Powerful 3L 220V | Powerful Little N3L 220 V | Powerful 4P 220 V | |||||
| Rated power voltage | VAC | 220 | 220 | 220 | |||
| Rated power frequency | Hz | 50 | 60 | 50 | 60 | 50 | 60 |
| Rated power current | A | 0.4 | 0.35 | 0.25 | 0.3 | 0.4 | 0.35 |
| Power consumption | W | 80 | 75 | 60 | 70 | 80 | 75 |
| Operating voltage | VAC | Same as power source | Same as power source | Same as power source | |||
| Operating current | A | ||||||
| Time rating | min. | 5 | 5 | 5 | |||
| Overheat protection operating temperature | ˚C | 120±10 | 120±10 | 120±10 | |||
| Internal electric circuit | Built-in Inter rock circuit | Built-in Inter rock circuit | Auto keep circuit, built-in Inter rock circuit | ||||
| Operating switch spec. | Locker switch | Locker switch | 3-button momentary contact switch Open: A contact Stop: B contact Close: A contact | ||||
| Weight of main unit | kg (lb) | 1.8 (4.0) | 1.8 (4.0) | 1.8 (4.0) | |||
| Operating time | sec./m | 5 | 4 | 5 | 4 | 5 | 4 |
| Maximum curtain weight | kg (lb) | 30 (66) | 30 (66) | 30 (66) | |||
| Maximum rail length | m (in) | 10 (394″) | 10 (394″) | 10 (394″) | |||
*Maximum curtain weight is for a two-way draw.
Applicable Range
| Type of curtain track | New Delac | |
| Installation Pattern | Straight | |
| ||
| Power transmission type | Wire type | |
*Maximum curtain weight is for a two-way draw.
| Powerful 3L Powerful 4P | Maximum curtain weight | kg(lb) | 30 (66) |
| Maximum rail length | m(in) | 10 (394) | |
| Powerful Little N3L | Maximum curtain weight | kg(lb) | 30 (66) |
| Maximum rail length | m(in) | 10 (394) |
Stack-off Allowance Guide
| Type | One-way Draw | Two-way Draw | ||||||||||||||||||||||||||
| Master Roller | Long Master Roller | Rail Overlap | ||||||||||||||||||||||||||
| Straight |
|
|
|
| ||||||||||||||||||||||||
*Number of rollers: 8 pcs per meter. Overlap space for the rail overlap: 300 mm (12″). ℓ : total length. Two-way Draw in the table shows a length of stack-off space for one (half) panel.
Component Parts

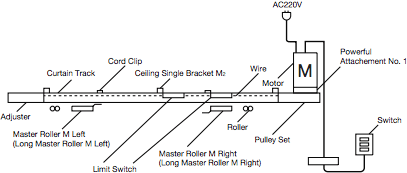

Straight: One-way draw

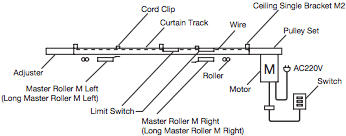

Straight: Two-way draw (Master roller)

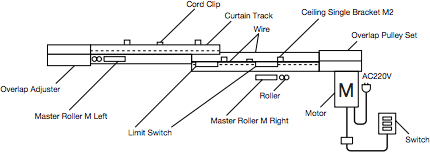

Straight: Rail overlap
Straight: Two-way draw (Motor recessed in ceiling)
Installation Dimensions and Diagram

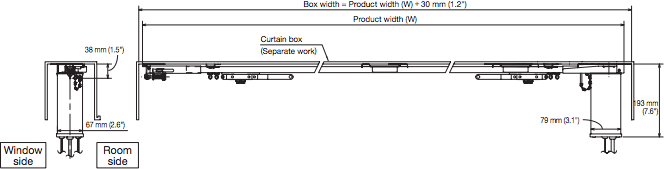

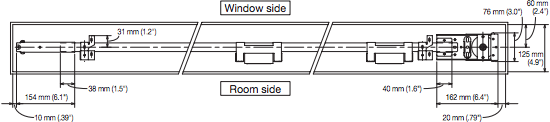

Straight: ceiling single attachment (Master roller)

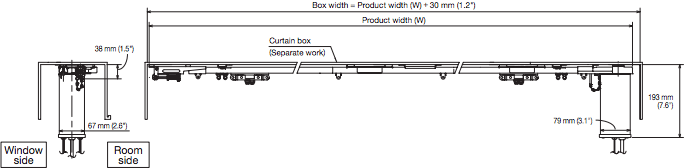

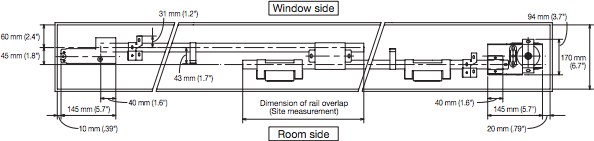

Straight: ceiling single attachment (Rail overlap)

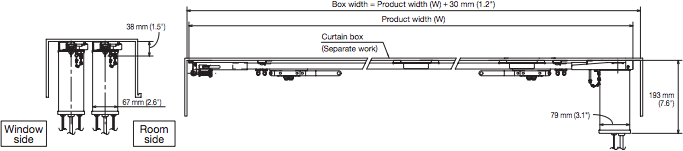

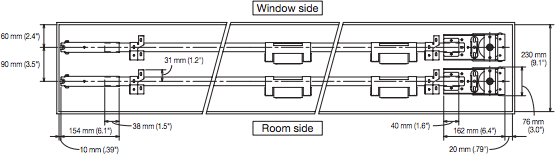

Straight: ceiling double attachment (Master roller)

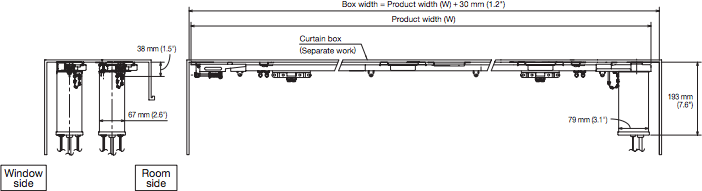

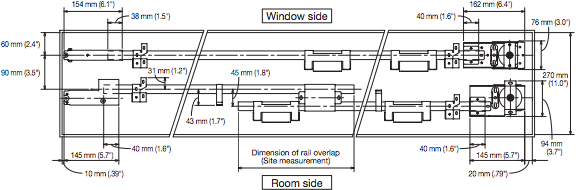

Straight: ceiling double attachment (Room side: Rail overlap, Window side: Master roller)
Rails
New Delac Rails
| Size | Product Code | ||
| Silver | White | Warm white | |
| 1.82 m (72″) | 00210120 | 00210346 | 00210226 |
| 2.00 m (79″) | 00210121 | 00210347 | 00210227 |
| 2.73 m (107″) | 00210122 | 00210348 | 00210228 |
| 3.00 m (118″) | 00210123 | 00210349 | 00210229 |
| 3.64 m (143″) | 00210124 | 00210350 | 00210230 |
| 4.00 m (157″) | 00210125 | 00210351 | 00210231 |
| Silver | White | Warm white |
 |
 |
 |
Parts List
ND Overlap Installation Kit M (wire)
| Product Name | Product Code | |
ND Ceiling Single
Bracket M2
 |
Silver | 00510048 |
| White | 00510327 | |
ND Roller
(8 pieces per strip)
 |
Natural | 00210027 |
ND Master Roller M Right (wire)
ℓ = 195 mm (7.7″) |
00510080 | |
ND Master Roller M Left (wire)
ℓ = 195 mm (7.7″) |
00510081 | |
ND Long Master Roller
M Right(wire)
ℓ = 270 mm (11″) |
00510034 | |
ND Pulley Set (wire)
 |
Silver | 00510050 |
| White | 00510322 | |
ND Adjuster
 |
Silver | 00510053 |
| White | 00510323 | |
ND One-way Adjuster
 |
Silver | 00210252 |
| White | 00510324 | |
ND Limit Switch A
Two-way draw:
10 m (394″) or less
One-way draw:
5 m (197″) or less
Rail overlap (500 mm/20″):
9.5 m (374″) or less |
Silver | 00510301 |
| White | 00510325 | |
| ND Limit Switch B
Two-way draw:
10 m (394″) to 20 m (787″)
One-way draw:
5 m (197″) to 10 m (394″)
Rail overlap (500 mm/20″):
9.5 m (374″) to 19.5 m (768″) |
Silver | 00510302 |
| White | 00510326 | |
ND Overlap Installation Kit M(wire) |
Pulley Set: 1  |
|
Master Roller Right: 1 |
Master Roller Left: 1 |
|
Adjuster: 1 |
Overlap Bracket: 1 |
Cord Clip: 10 |
Powerful Attachment No. 1  |
00510061 | |
ND OT Splice
 |
Silver | 00210024 |
| White | 00210323 | |
Wire ø 1.5
 |
00510072 | |
| ND Cord Clip |  |
00510049 |
