Powerful+Supertrac

Durable wire

Ready for draperies

Features

Motor Specifications

Applicable Range

Stack-off Allowance Guide

Component Parts

Installation

Rails

Parts list

PDF Cataloge

Features

Available for straight, curve, arch, skylight and slope windows.

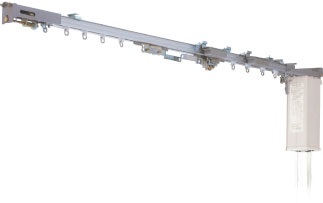

Straigt and slop window

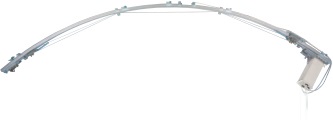

Curve

Arch

Skylight

Available for straight, curve, arch, skylight and slope windows.

Exceptionally durable wire used for motor drive transmission.
Passed a 10,000 cycle open-close test.
Ready for draperies up to 20 m (787″) long with 80 kg (176 lb) in weight.

Motor Specifications

Item		Powerful 3L Series						Powerful 4P Series
		Powerful 3L 220 V		Powerful 3L-HM 220 V		Powerful Little N3L 220 V		Powerful 4P 220 V		Powerful 4P-HM 220 V		Powerful 4P-HL 220 V
Rated power voltage	VAC	220		220		220		220		220		220
Rated power frequency	Hz	50	60	50	60	50	60	50	60	50	60	50	60
Rated power current	A	0.4	0.35	0.4	0.35	0.25	0.3	0.4	0.35	0.4	0.35	0.4	0.35
Power consumption	W	80	75	80	75	60	70	80	75	80	75	80	75
Operating voltage	VAC	Same as power source		Same as power source		Same as power source		Same as power source		Same as power source		Same as power source
Operating current	A
Time rating	min.	5		5		5		5		5		5
Overheat protection operating temperature	˚C	120±10		120±10		120±10		120±10		120±10		120±10
Internal electric circuit		Built-in Inter rock circuit		Built-in Inter rock circuit		Built-in Inter rock circuit		Auto keep circuit, built-in Inter rock circuit		Auto keep circuit, built-in Inter rock circuit		Auto keep circuit, built-in Inter rock circuit
Operating switch spec.		Locker switch		Locker switch		Locker switch		3-button momentary contact switch Open:A contact Stop:B contact Close:A contact		3-button momentary contact switch Open:A contact Stop:B contact Close:A contact		3-button momentary contact switch Open:A contact Stop:B contact Close:A contact
Weight of main unit	kg (lb)	1.8 (4.0)		1.8 (4.0)		1.8 (4.0)		1.8 (4.0)		1.8 (4.0)		1.8 (4.0)
Operating time	sec./m	5	4	9	7	5	4	5	4	9	7	18	14
Maximum curtain weight	kg (lb)	80 (176)		Sloping	Weight	30 (66)		80 (176)		Sloping	Weight	80 (176)
				0°	80 (176)					0°	80 (176)
				15°	16 (35)					15°	16 (35)
				20°	13 (29)					20°	13 (29)
				30°	10 (22)					30°	10 (22)
				45°	8 (18)					45°	8 (18)
Maximum rail length	m (in)	20 (787″)		10 (394″)		20 (787″)		20 (787″)		10 (394″)		10 (394″)

*Maximum curtain weight is for a two-way draw.

Applicable Range

Type of curtain track			Supertrac
Installation Pattern			Straight	Curve		Slope window

Power transmission type			Wire type	Wire type		Wire type
Powerful 3L Powerful 4P	Maximum curtain weight	kg (lb)	80 (176)	Single curve	Two curves/ Overall curve half	–
				50 (110)	30 (66)
	Maximum rail length	m (in)	20 (787″)	10 (394″)	10 (394″)	–
Powerful 3L-HM	Maximum curtain weight	kg (lb)	80 (176)	70 (154)	50 (110)	Sloping angle	15°	20°	30°	45°
						Weight	16(35)	13(29)	10(22)	8(18)
	Maximum rail length	m (in)	10 (394″)	10 (394″)	10 (394″)	10 (394″)
Powerful 4P-HM	Maximum curtain weight	kg (lb)	80 (176)	70 (154)	50 (110)	Sloping angle	15°	20°	30°	45°
						Weight	16(35)	13(29)	10(22)	8(18)
	Maximum rail length	m (in)	10 (394″)	10 (394″)	10 (394″)	10 (394″)
Powerful 4P-HL	Maximum curtain weight	kg (lb)	80 (176)	70 (154)	50 (110)	–
	Maximum rail length	m (in)	10 (394″)	10 (394″)	10 (394″)	–
Powerful Little N3L	Maximum curtain weight	kg (lb)	30 (66)	–	–	–
	Maximum rail length	m (in)	20 (787″)	–	–	–

Type of curtain track			Supertrac
Installation Pattern			Skylight	Slope skylight			Arch

Power transmission type			Wire type	Wire type			Wire type
Powerful 3L Powerful 4P	Maximum curtain weight	kg (lb)	–	–			–
	Maximum rail length	m (in)	–	–			–
Powerful 3L-HM	Maximum curtain weight	kg (lb)	15 (33)	–			Overall arch
							10 (22)
	Maximum rail length	m (in)	10 (394″)	–			6 (236″)
Powerful 4P-HM	Maximum curtain weight	kg (lb)	15 (33)	Sloping angle	45° or less	45°	Overall arch
				Weight	15 (33)	12 (26)	10 (22)
	Maximum rail length	m (in)	10 (394″)	10 (394″)			6 (236″)
Powerful 4P-HL	Maximum curtain weight	kg (lb)	–	–			–
	Maximum rail length	m (in)	–	–			–
Powerful Little N3L	Maximum curtain weight	kg (lb)	–	–			–
	Maximum rail length	m (in)	–	–			–

*Maximum curtain weight is for a two-way draw. Maximum curtain weight for the skylight is a one-way draw.

Stack-off Allowance Guide

Type

One-way Draw

Two-way Draw

Master Roller

Long Master Roller

Rail Overlap

Straight

(ℓ –380mm)	×16mm + 370mm
100mm

(ℓ – 15″)	×.63″ + 15″
3.9″

(ℓ – 570mm)	×17mm + 370mm
200mm

(ℓ – 22″)	×.67″ + 15″
7.9″

(ℓ – 570mm)	×17mm + 430mm
200mm

(ℓ – 22″)	×.67″ + 17″
7.9″

(ℓ – 50mm)	×17mm + 280mm
200mm

(ℓ – 2.0″)	×.67″ + 11″
7.9″

Curve

(ℓ – 90mm)	×17mm + 160mm
10 mm

(ℓ – 3.5″)	×.67″ + 6.3″
3.9″

(ℓ – 160mm)	×17mm + 160mm
200mm

(ℓ – 6.3″)	×.67″ + 6.3″
7.9″

–

(ℓ – 160mm)	×17mm + 80mm
200mm

(ℓ – 6.3″)	×.67″ + 3.2″
7.9″

Skylight

(ℓ – 410mm)	×12mm + 410mm
100mm

(ℓ – 16″)	×.47″ + 16″
3.9″

(ℓ – 580mm)	×12mm + 410mm
200mm

(ℓ – 23″)	×.47″ + 16″
7.9″

–

Arch

(ℓ – 380mm)	×16mm + 370mm
10 mm

(ℓ – 15″)	×.63″ + 15″
3.9″

(ℓ–– 570mm )	×17mm + 370mm
200mm

(ℓ – 22″)	×.67″ + 15″
7.9″

–

*Number of rollers: 8 pcs per meter. Overlap space for the overlap rail: 500 mm (20″). : total length. Two-way Draw in the table shows a length of stack-off space for one (half) panel.

Component Parts

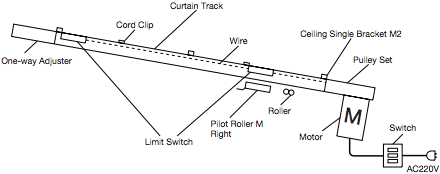

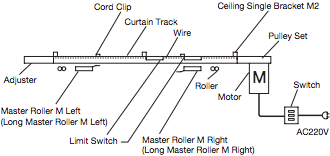

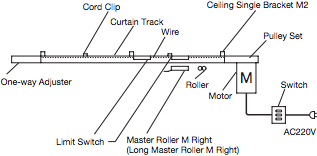

Straight: One-way draw

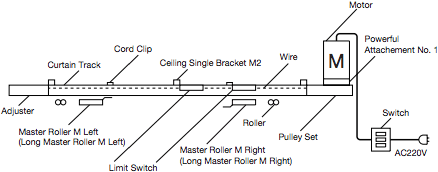

Straight: Two-way draw (Master roller)

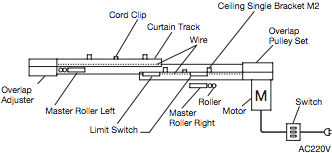

Straight: Rail overlap

Straight: Two-way draw (Motor recessed in ceiling)

Straight: Hung from pipes (Master roller)

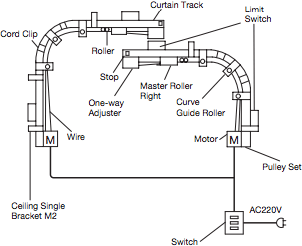

Curve: One-way draw

Curve: Two-way draw (Master roller)

Curve: Rail overlap

Slope window: One-way draw

*Notice to the installation positions of the motor so that the curtain hem does not arrive at the floor

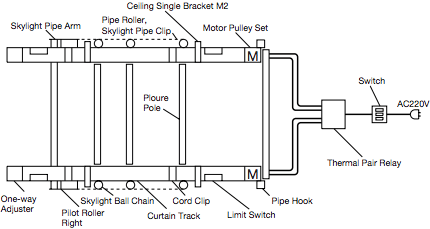

Skylight and Slope skylight: One-way draw

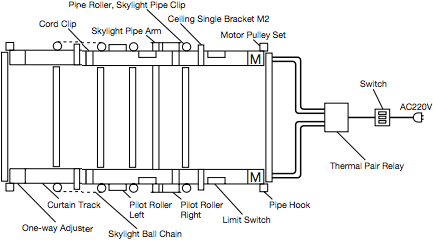

Skylight and Slope skylight: Two-way draw

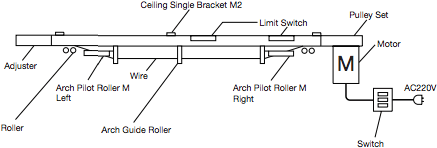

Arch: Two-way draw (Master roller)

Installation Dimensions and Diagram

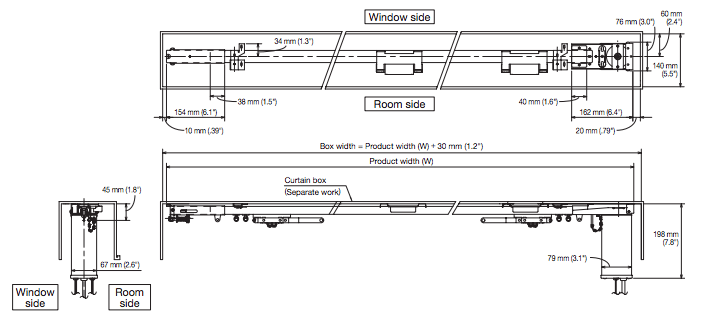

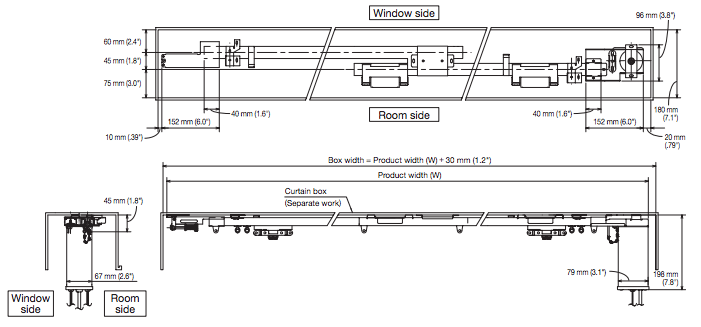

Straight: ceiling single attachment (Master roller)

Straight: ceiling single attachment (Rail overlap)

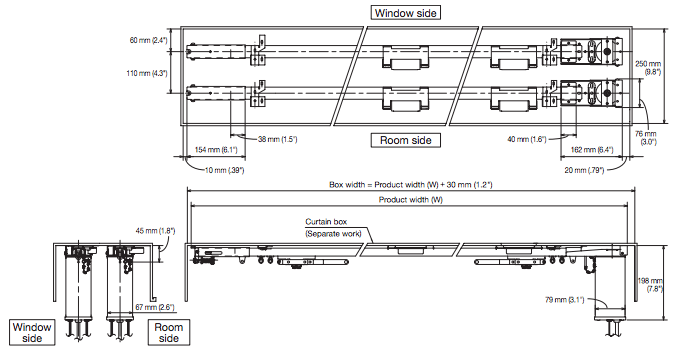

Straight: ceiling double attachment (Master roller)

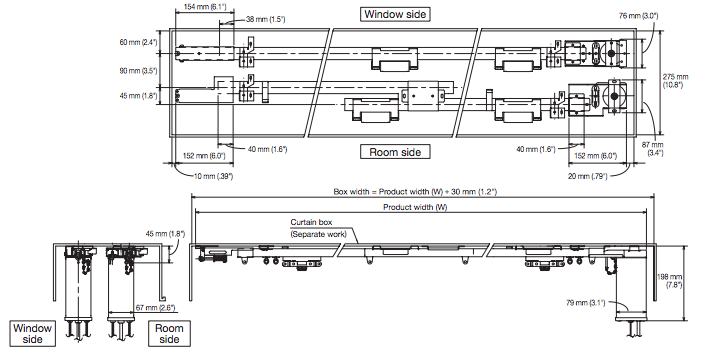

Straight: ceiling double attachment (Room side: Rail overlap, Window side: Master roller)

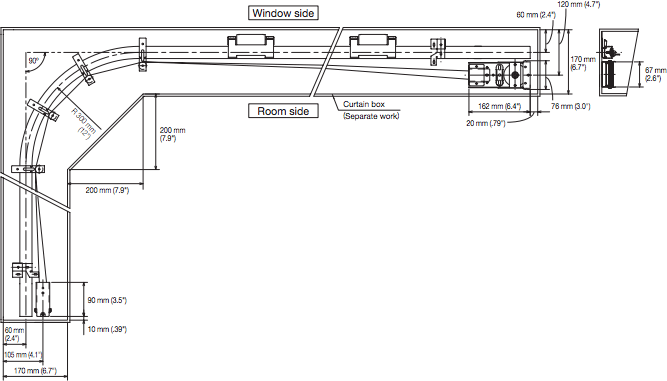

Curve: ceiling single attachment (Master roller)

Curve: ceiling single attachment (Rail overlap)

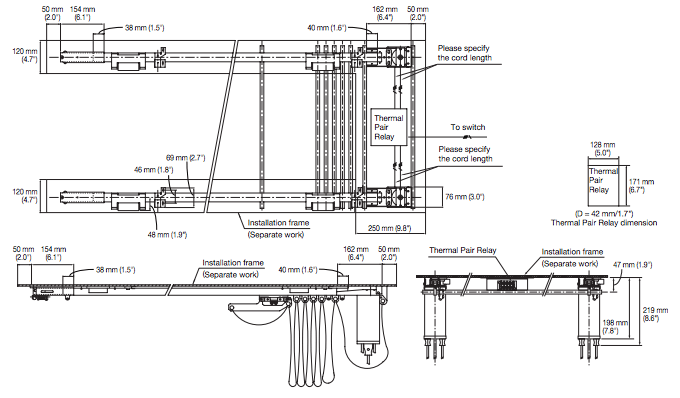

Skylight, Slope skylight: One-way draw

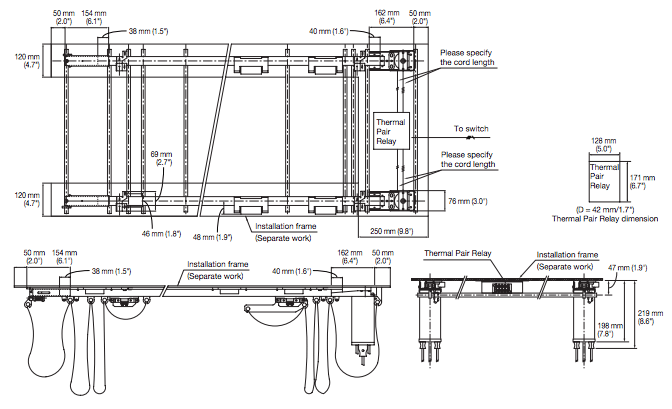

Skylight, Slope skylight: Two-way draw

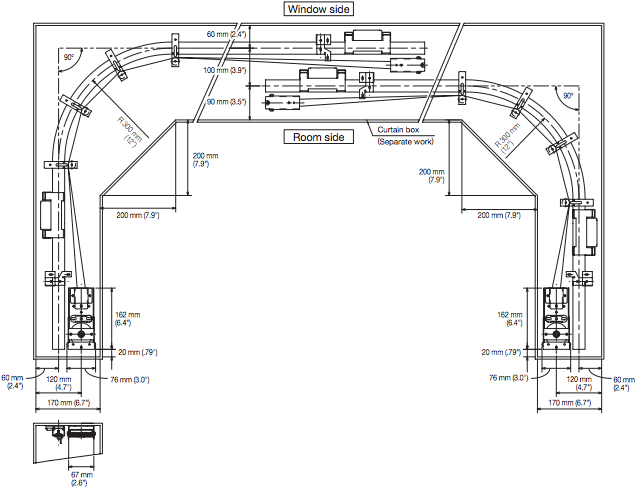

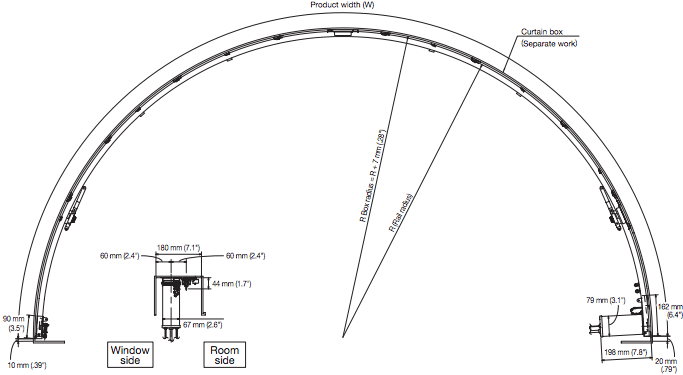

Arch: ceiling attachment (Master roller)

Rails

Silver Rails

Size	Product Code
3.00 m (118″)	00240023
4.00 m (157″)	00240026
Curved Rail (500 mmR/20″R) 1.00 m x 1.00 m (39″ x 39″) (Ordered separately)*1	00240058

White Rails

Size	Product Code
3.00 m (118″)	00240093
4.00 m (157″)	00240094
Curved Rail (500 mmR/20″R) 1.00 m x 1.00 m (39″ x 39″) (Ordered separately)*1	00240095

*1 Curved 1.00 m x 1.00 m (39″ x 39″) rails (ordered separately) are 500 mmR (20″R)

Note:: Possible radius sizes….. Natural: 450 mmR (18″R), 800 mmR (31″) or more

Parts List

Parts (For Straight and Slope)

@@ Product Name / Product Code @@
-SP Ceiling Single
Bracket M2
+Silver
 White
-SP Roller
+00240011
-SP OM Roller
+00240010
-SP Swing Roller
with Ring
+00240059
-SP Master Roller
M Right(wire)
ℓ = 202 mm (8.0″)
+00510085
-SP Master Roller
M Left(wire)
ℓ = 202 mm (8.0″)
+00510086
-SP Long Master Roller
M Right(wire)
ℓ = 272 mm (10.7″)
+00510038
-SP Long Master Roller
M Left(wire)
ℓ = 272 mm (10.7″)
+00510036

Product Name		Product Code
SP Limit Switch A Two-way draw: 10 m (394″) or less One-way draw: 5 m (197″) or less Rail overlap (500 mm/20″): 9.5 m (374″) or less	Silver	00510303
	White	00510317
SP Limit Switch B Two-way draw: 10 m (394″) to 20 m (787″) One-way draw: 5 m (197″) to 10 m (394″) Rail overlap (500 mm/20″): 9.5 m (374″) to 19.5 m (768″)	Silver	00510304
	White	00510318
SP OT Splice	Silver	00240003
SP OT Splice	White	00240066
Wire Ø1.5		00510072
SP Cord Clip		00510029
SP Overlap Bracket		00240030
SP Pipe Hanger Bracket for ø 28–43 mm (ø 1.1–1.7″)		00510021
Hanger Pipe Installation Aids (available Theatrac) for ø 33–50 mm (ø 1.3–2.0″)		00510203

*Please inquire of TOSO about arch, skylight andslope skylight.

Product Name

Product Code

SP Pilot Roller
Right(wire)
ℓ = 125 mm (4.9″)

00510042

SP Pilot Roller
Left(wire)
ℓ = 125 mm (4.9″)

00510040

SP Pulley Set(wire)

Silver

00510047

White

00510314

SP Adjuster

Silver

00510045

White

00510315

SP One-way Adjuster

Silver

00240036

White

00510316

SP Overlap Installation Kit M(wire)

		Pulley Set: 1
Master Roller Right: 1		Master Roller Left: 1
Adjuster: 1	Overlap Bracket: 1	Cord Clip: 10

00510024

Powerful Attachment No. 1
(available for New Delac)

00510061

Parts (For Curve)

@@ Product Name / Product Code @@
 Silver
 White
@@ SP Roller / 00240011 @@
@@ SP OM Roller / 00240010 @@
@@ SP Swing Roller with Ring / 00240059 @@
@@ SP End Stop / 00240020 @@
 Silver
 White
 Silver
 White

Product Name

Product Code

SP Curved Guide Roller

00510170

SP Curved Installation Aids

(for Pulley Set)

(for Adjuster)

00510171

Powerful Attachment No. 1

00510061

SP OT Splice

Silver

00240003

White

00240066

Wire Ø1.5

00510072

SP Cord Clip

00510029

Product Name		Product Code
SP Curved Master Roller M Right		00510166
SP Curved Master Roller M Left		00510167
SP Curved Pilot Roller Right		00510168
SP Curved Limit Switch A (for ceiling attachment)		00510330
SP Limit Switch A Two-way draw:10 m (394″) or less One-way draw:5 m (197″) or less Rail overlap (500 mm/20″):9.5 m (374″) or less	Silver	00510303
	White	00510317
SP Limit Switch B Two-way draw:10 m (394″) to 20 m (787″) One-way draw:5 m (197″) to 10 m (394″) Rail overlap (500 mm/20″): 9.5 m (374″) to 19.5 m (768″)	Silver	00510304
	White	00510318

Parts (For Arch, Skylight and Slope Skylight)

Please inquire of TOSO about arch, skylight and slope skylight.
