Motorized Curtain Tracks
Powerful+Theatrac
Built-in FM
Quiet operation
Features
Features
Unique Features
- Exceptionally durable wire used for motor drive transmission.
- Passed a 10,000 cycle open-close test.
- Ready for draperies up to 20 m (787") long with 120 kg (265 lb) in weight.
Motor Specifications
| Item | Powerful 3L Series | Powerful 4P Series | |||||||||
| Powerful 3L 220 V | Powerful 3L-HM 220 V | Powerful 4P 220 V | Powerful 4P-HM 220 V | Powerful 4P-HL 220 V | |||||||
| Rated power voltage | VAC | 220 | 220 | 220 | 220 | 220 | |||||
| Rated power frequency | Hz | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 |
| Rated power current | A | 0.4 | 0.35 | 0.4 | 0.35 | 0.4 | 0.35 | 0.4 | 0.35 | 0.4 | 0.35 |
| Power consumption | W | 80 | 75 | 80 | 75 | 80 | 75 | 80 | 75 | 80 | 75 |
| Operating voltage | VAC | Same as power source | Same as power source | Same as power source | Same as power source | Same as power source | |||||
| Operating current | A | ||||||||||
| Time rating | min. | 5 | 5 | 5 | 5 | 5 | |||||
| Overheat protection operating temperature | ˚C | 120±10 | 120±10 | 120±10 | 120±10 | 120±10 | |||||
| Internal electric circuit | Built-in Inter rock circuit | Built-in Inter rock circuit | Auto keep circuit, built-in Inter rock circuit | Auto keep circuit, built-in Inter rock circuit | Auto keep circuit, built-in Inter rock circuit | ||||||
| Operating switch spec. | Locker switch | Locker switch | 3-button momentary contact switch Open:A contact Stop:B contact Close:A contact | 3-button momentary contact switch Open:A contact Stop:B contact Close:A contact | 3-button momentary contact switch Open:A contact Stop:B contact Close:A contact | ||||||
| Weight of main unit | kg (lb) | 1.8 (4.0) | 1.8 (4.0) | 1.8 (4.0) | 1.8 (4.0) | 1.8 (4.0) | |||||
| Operating time | sec./m | 3 | 2.5 | 5 | 4 | 3 | 2.5 | 5 | 4 | 10 | 8 |
| Maximum curtain weight | kg (lb) | 80 (176) | 100 (221) | 80 (176) | 100 (221) | 120 (265) | |||||
| Maximum rail length | m (in) | 20 (787″) | 20 (787″) | 20 (787″) | 20 (787″) | 10 (394″) | |||||
*Maximum curtain weight is for a two-way draw.
Applicable Range
| Type of curtain track | Theatrac | |
| Installation Pattern | Straight | |
   | ||
| Power transmission type | Wire type | |
*Maximum curtain weight is for a two-way draw.
| Powerful 3L Powerful 4P | Maximum curtain weight | kg(lb) | 80 (176) |
| Maximum rail length | m(in) | 20 (787″) | |
| Powerful 3L-HM | Maximum curtain weight | kg(lb) | 100 (221) |
| Maximum rail length | m(in) | 20 (787″) | |
| Powerful 4P-HM | Maximum curtain weight | kg(lb) | 100 (221) |
| Maximum rail length | m(in) | 20 (787″) | |
| Powerful 4P-HL | Maximum curtain weight | kg(lb) | 120 (265) |
| Maximum rail length | m(in) | 10 (394″) |
Stack-off Allowance Guide
| Type | One-way Draw | Two-way Draw | |||||||||||||||||||
| Master Roller | Rail Overlap | ||||||||||||||||||||
| Straight |
|
|
| ||||||||||||||||||
*Number of rollers: 6 pcs per meter. Overlap space for the overlap rail: 500 mm (20″). ℓ: total length. Two-way Draw in the table shows a length of stack-off space for one (half) panel.
Components Parts

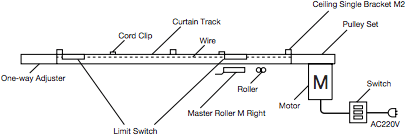

Straight: One-way draw
Straight: Two-way draw (Master roller)
Straight: Rail overlap

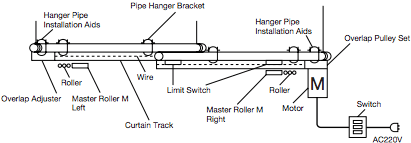

Straight: Hung from pipes (Master roller)
Installation Dimensions and Diagram
Straight: ceiling single attachment (Master roller)
Straight: ceiling single attachment (Rail overlap)
Straight: ceiling double attachment (Master roller)
Straight: ceiling double attachment (Room side: Rail overlap, Window side: Master roller)
Rails
Theatrac Rails
| Size | Product Code |
| Silver | |
| 3.00 m (118″) | 00250018 |
| 4.00 m (157″) | 00250017 |
Silver
Parts List
| Product Name | Product Code | |
| TH Ceiling Single Bracket M2 |  | 00510090 |
| TH Roller |  | 00250012 |
| TH Master Roller M Right(wire) ℓ = 335 mm (13″) |  | 00510092 |
| TH Master Roller M Left(wire) ℓ = 335 mm (13″) |  | 00510093 |
| TH Pilot Roller M Right(wire) ℓ = 170 mm (6.7″) |  | 00510094 |
| TH Pilot Roller M Left(wire) ℓ = 170 mm (6.7″) |  | 00510095 |
| TH Pulley Set(wire) |  | 00510097 |
| TH Adjuster |  | 00510098 |
| Product Name | Product Code | |
| TH OT Splice |  | 00250007 |
Wire ø 2.5 | 00510079 | |
| TH Cord Clip |  | 00510096 |
| TH Overlap Bracket |  | 00250022 |
| TH Pipe Hanger Bracket for ø 33–50 mm(ø 1.3–2.0″) |  | 00510204 |
| Hanger Pipe Installation Aids Installation Aids (available Supertrac) for ø 33–50 mm (ø 1.3–2.0″) |  | 00510203 |
| Product Name | Product Code | |||||||||
TH Overlap Installation Kit M
| 00510089 | |||||||||
TH Limit Switch A Two-way draw:10 m (394″) or less One-way draw:5 m (197″) or less Rail overlap (1000 mm/39″):9 m (354″) or less | 00510320 | |||||||||
TH Limit Switch B Two-way draw:10 m (394″) to 20 m (787″) One-way draw:5 m (197″) to 10 m (394″) Rail overlap (500 mm/20″): 9.5 m (374″) to 19 m (748″) | 00510321 | |||||||||
