Functional Curtain Tracks

Easily bandable

Adjustable

Features

Features

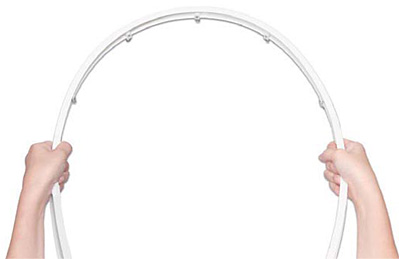

Easily bendable by hand

Easily bendable by hand, without
using special bender.

 Adjustable your favorite length with
scissors or cutters.

Both Celling and Wall Attachment are
available.

Installation

Installation Dimensions

Ceiling Attachment

Ceiling Single Bracket

Ceiling Attachment

Ceiling Double Bracket

Wall Attachment

Ceiling Single Bracket

Materials and Finishes

PartsMaterialFinish
RailSoft plastic
(steel plate insert)
Umber,
White,
Warm white
RollerPlateHard polyethylene
WheelAcetal resin
Oval ringStainless steel



PartsMaterialFinish
End CapBodyNylonUmber,
White,
Warm white

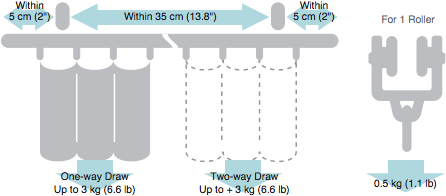

Bracket Installation Interval and Allowable Curtain Load

Rails

Product Codes

Umber

White

Warm White

Refre Rails

SizeProduct Code
UmberWhiteWarm White
25 m (984″)014600660146008201460065
2.00 m (79″)0146001301460015
3.00 m (118″)0146001401460016


Refre R Set for Stores

SizeProduct Code
UmberWarm White
2.00 m (79″)0146004701460045
3.00 m (118″)0146004801460046

Contents of parts: Rail (1pc), Rollers (2.00 m/79″=22 pcs, 3.00 m/118″=34 pcs), Magnet Carriers (1 pair), End Caps (2 pcs), Single Brackets (2.00 m/79″=9 pcs, 3.00 m/118″=12 pcs), Fixing Screws

Parts List

Product NameProduct Code
RollersRoller
(8 pieces per strip)
Umber01460011
White01460083
Warm White01460001
MG Carrier
Umber01460010
White01460084
Warm White01460002
One-way MG
Carrier
Umber01460012
White01460085
Warm White01460003
Other
Parts
Splice
Umber01460028
Warm White01460029
Product NameProduct Code
BracketsSingle Bracket
Umber01460008
White01460087
Warm White01460009
Ceiling Single
Bracket
Umber01460006
White01460088
Warm White01460007
Ceiling Double
Bracket
Umber01460026
White01460089
Warm White01460027
End
Cap
End Cap
Umber01460004
White01460086
Warm White01460005

See features and optional functions in detail in the catalog
