Functional Curtain Tracks
Super Selfie Cord Draw
Neat Stacking
Master Roller

Features
Features
Neat stacking of curtains without Tension Pulley.
- The cord draw curtain track can be curved without using a bender.
- Can be used for a 10 kg one-way draw curtain, or for a 20 kg two-way draw curtain. (At a single curve)
Can be used for a 10 kg one-way draw curtain, or
for a 20 kg two-way draw curtain. (At a single curve)
Overlap Curtains
Master Roller used to overlap curtains.
Refer to the Cord Draw Components catalog for assembly instructions. When a deeper overlap is required, overlap the rails.
Dimensions of overlapping part

Materials and Finishes
Parts | Material | Finish | |
Rail | Aluminum alloy extrusion materia | Alumite Alumite white | |
Roller | Plate | Acetal resin | – |
Wheel | Hard polyethylene | ||
Oval ring | Stainless steel | ||
Master Roller | Plate | Steel | – |
Wheel | Hard polyethylene |
Parts | Material | Finish | |
Single Pulley Double Pulley | Nylon resin | – | |
End Cap | Cap | Steel | – |
Oval ring | Stainless steel | ||
Traverse Cord | Polyester 100% | – |

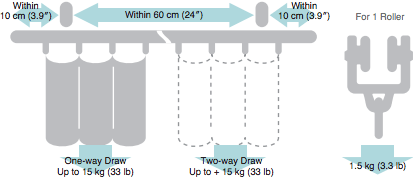

Bracket Installation Interval and Allowable Curtain Load

Structure Drawing

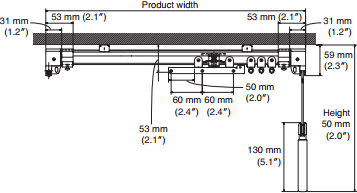

One-way Draw

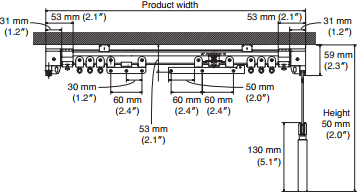

Two-way Draw


Installation Dimensions
Caps Dimension
Ceiling Attachment
Easy Snap Ceiling Single Bracket
Bracket width = 18 mm (.71″)

Easy Snap Ceiling Double Bracket
Bracket width = 19 mm (.75″)

Wall Attachment
Single Bracket
Bracket width = 18 mm (.71″)

Double Bracket
Bracket width = 18 mm (.71″)

Rails
Color Lineup
Silver

Warm White


Super Selfie Cord Draw Rails
Size | Product Code | |
Silver | Warm White | |
2.00 m (79″) | 30000833 | 30000830 |
3.00 m (118″) | 30000834 | 30000831 |
4.00 m (157″) | 30000835 | 30000832 |
Parts List
Product Name | Product Code | |
Rollers | Super Selfie Roller![]() | 03700007 |
Super Selfie MG Carrier ![]() | 03700008 | |
Super Selfie One-way MG Carrier ![]() | 03700009 | |
Super Selfie Cord Draw One-way Pilot Roller ![]() | 30000836 | |
Super Selfie Cord Draw Pilot Roller Set ![]() | 30000837 | |
Super Selfie Cord Draw Master Roller ![]() | 30000838 |
Product Name | Product Code | ||
Brackets | Selfie Ceiling Single Bracket ![]() | Silver | 02330114 |
Warm White | 02330008 | ||
Selfie Ceiling Double Bracket ![]() | Silver | 02330115 | |
Warm White | 02330010 | ||
Other Parts | Super Selfie Splice![]() | Silver | 03700011 |
Warm White | 03700012 | ||
Super Selfie Cord Draw Bending Plate 2 m ![]() | 30000842 | ||
Super Selfie Cord Draw Tension Weight ![]() | 30000843 | ||
Tension Pulley 240 ![]() | White | 00500005 | |
Traverse Cord 2.8 mm DIA. (*) | White | 00580009 |
Product Name | Product Code | ||
Rollers | Super Selfie Cord Draw One-way Master Roller (R) ![]() | 30000839 | |
Super Selfie Cord Draw One-way Master Roller (L) ![]() | 30000840 | ||
Super Selfie Cord Draw Puller Set ![]() | 30000841 | ||
Brackets | Selfie Single Bracket ![]() | Silver | 02330111 |
Warm White | 02330002 | ||
Selfie Double Bracket ![]() | Silver | 02330112 | |
Warm White | 02330004 | ||
Selfie Easy Snap Ceiling Single Bracket ![]() | Silver | 02330116 | |
Warm White | 02330054 | ||
Selfie Easy Snap Ceiling Double Bracket ![]() | Silver | 02330117 | |
Warm White | 02330056 |
