Terminal Control Unit
Motorized Blinds
Low-voltage operation
Features
Features
Unique Features
Operational choices
motorized blinds
A controller giving motorized blinds and tracks a variety of operational choices.
ATF RB infrared remote control
Powerful or ATF RB infrared remote control is possible with Terminal Control Unit.
low-voltage operation
Can also be used as an interface for low-voltage operation.

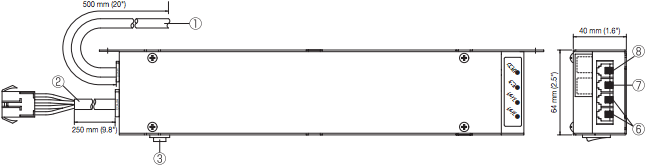

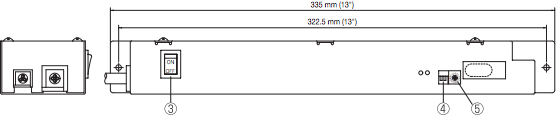

Product Overall View and Names of Parts
| No. | Product Name |
| ① | Power supply cord |
| ② | Connecting cord |
| ③ | Power switch |
| ④ | Operation setting switch |
| No. | Product Name |
| ⑤ | Infrared address setting switch |

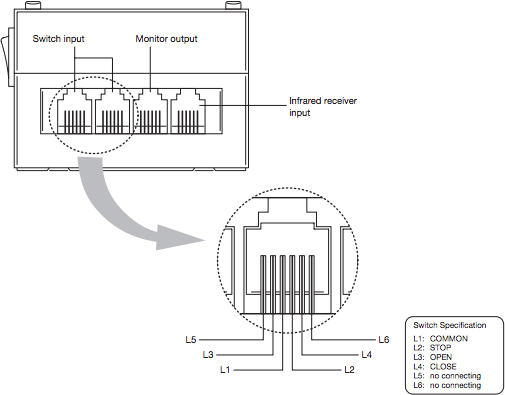

| ⑥ | Switch input |
| ⑦ | Monitor output |
| ⑧ | Infrared receiver input |
Specifications
| A Type (Output of Power Source) | B Type (Output of Dry Contact) | |
| Rated power voltage | 100–240 VAC | |
| Rated power frequency | 50/60 Hz | |
| Power consumption | 10 W or less (without connection load) | |
| Output voltage | Same as power source | Non voltage (Output of Dry Contact) |
| Permission load | 2 A or less | |
| Operating voltage | 12 VDC | |
| Ambient temperature | 0 to 50ºC | |
| Time rating | 5 min. | |
Features
| Types | Products |
| A Type (Output of Power Source) | Powerful 3L Type ATF35-RB, RS, ATF45-RB, RS |
| B Type (Output of Dry Contact) | Intest ID, Venewood AT Super Libelta, Super Forte |
Product Weight
1 kg (2.2 lb)

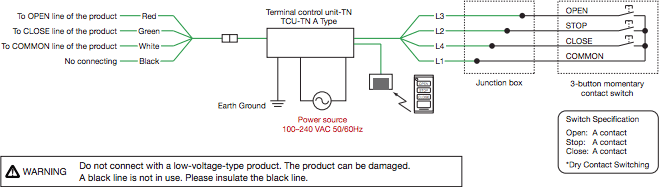

A Type (Output of Power Source)

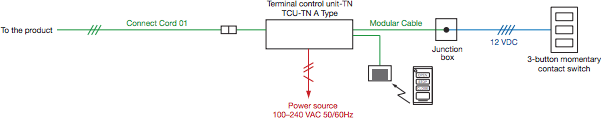

Basic Wiring Diagram
Basic Connecting Diagram

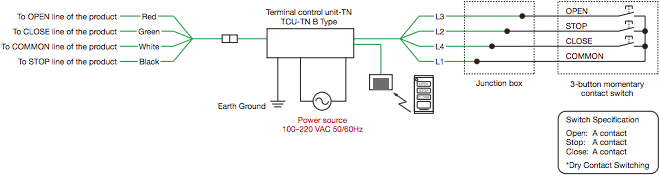

B Type (Output of Dry Contact)
Basic Wiring Diagram
Basic Connecting Diagram
Specification for Input Switches
Terminal Control Unit
| Product Name | Product Code | |
| Terminal Control Unit-TN  | A Type (Output of Power Source) | 00510298 |
| B Type (Output of Dry Contact) | 00510299 | |
| Product Name | Product Code |
Modular Cord with Terminal | 00510229 |
Connect Cord 01 | 00510177 |
