Functional Curtain Tracks
Theatrac
Smooth rollers
convenient

Features
Features
- The ideal rail for the heaviest blackout curtains used in gymnasiums and auditoriums.
- Manual, cord draw and motor operation are possible.
- Wheel-type rollers with bearings enable smooth, easy opening and closing.
Unique Features and Applications
convenient
Using Carpet Hanger Rollers and Carpet Clippers enables a display of carpets (movable).
Using large Carpet Hanger Rollers and Carpet Clippers together enables beautiful carpet display without damaging the carpets.

Rollers and cord pass through separate grooves.
Separate grooves for rollers and cord/wire permit a smooth and trouble-free operation.

Motor operation
Convenient
This is convenient when using wide curtains or curtains in a high location, and when opening and closing heavy curtains.
Materials and Finishes
Parts | Material | Finish | |
Rail | Silver | Aluminum alloy extrusion material | Alumite |
White | |||
Roller | Plate | Nylon | – |
Wheel | Nylon |
Parts | Material | Finish | |
End Stop | Plate | Steel | Silver Alumite |
Bracket | Body | Aluminum | |
Snap board | Steel |

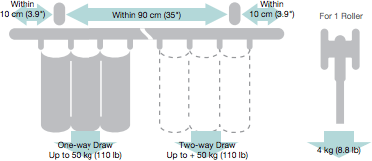

Bracket Installation Interval and Allowable Curtain Load
Installation

Installation Dimensions
Installation
Ceiling Attachment
Direct attachment
(Roller used)

Direct attachment
(Swing Roller with Ring used)

Direct attachment
(Swing Roller with Hook used)

Ceiling Single Bracket
Bracket width = 38 mm (1.5″)
(Roller used)

Wall Attachment
Single Bracket
Bracket width = 34 mm (1.3″)
(Roller used)

Rails
Rail Section

Theatrac Rails
Silver

White

Size | Product Code | |
Silver | White | |
3.00 m (118″) | 00250018 | 00250032 |
4.00 m (157″) | 00250017 | 00250033 |
Curved Rail (500 mmR/20″R) 1.00 m x 1.00 m (3.9″ x 3.9″) (Ordered separately)*1 | 00250031 | – |
*1 Curved 1.00 m x 1.00 m (39″ x 39″) rails (ordered separately) are 500 mmR (20″R).
Note: Possible radius sizes….. Silver: 1,000 mmR (39″R) or more
Parts List
Product Name | Product Code | ||
Rollers | Roller Allowable load 4 kg (8.8 lb) | ![]() | 00250012 |
Swing Roller with Ring Allowable load 10 kg (22 lb) | ![]() | 00250028 | |
Swing Roller with Hook Allowable load 8 kg (17.6 lb) | ![]() | 00250030 | |
Brackets | Single Bracket![]() | Silver | 00250005 |
Ceiling Single Bracket ![]() | Silver | 00250002 | |
Overhead Hanger![]() | Silver | 00250011 | |
End Stops | End Stop![]() | Silver | 00250006 |
Hanger End Stop![]() | Silver | 00250016 | |
Cord Draw Parts | Pulley Set![]() | Silver | 00250009 |
Product Name | Product Code | |||
Cord Draw Parts | Master Roller Two rollers are necessary for Two-way draw. ![]() For curved rail over 1000 mmR(39″). | 00250001 | ||
Overlap Pulley Set![]() | Silver | 00250008 | ||
Pilot Roller Two rollers are necessary for Two-way draw. | ![]() | 00250010 | ||
Tension Pulley 450 | ![]() | Silver | 00500007 | |
Tension Pulley 650 | ![]() | Silver | 00500008 | |
Traverse Cord 4.5 mm DIA. | White | 00580011 | ||
Support Pulley A![]() | 00500009 | |||
Support Pulley B![]() | 00500010 | |||
Support Pulley C![]() | 00500011 |
Product Name | Product Code | |||
Other Parts | Cover Splice![]() | Silver | 00250029 | |
OT Splice![]() | Silver | 00250007 | ||
Carpet Clipper (2.65 m/104″) | 00250014 | |||
Carpet Hanger Roller Two rollers are necessary for one clipper. For curved rail over 1500 mmR(59″R). | ![]() | 00250015 | ||
Adjustable Hanger Rod A ![]() | A170 (130–170 mm /5.1″–6.7″) | Silver | 00290034 | |
A250 (170–250 mm /6.7″–9.8″) | Silver | 00290036 | ||
A400 (245–400 mm /9.6″–16″) | Silver | 00290017 | ||
A700 (395–700 mm /16″–28″) | Silver | 00290016 | ||
A1100 (595–1,100 mm /23″–43″) | Silver | 00290015 | ||
A1600 (845–1,600 mm /33″–63″) | Silver | 00290014 |
