Motorized Curtain Tracks
Ti-8040
Built-in FM
Quiet operation

Features
Features
Unique Features
Highly durable belt
A built-in FM Remote-Control Receiver
The new motor utilises a built-in FM receiver for control.

Quiet operation with a new motor and new rollers
The new motor and rollers provide ultra-quite operation.
Can be curved into a variety of shapes
L-shaped, U-shaped, S-shaped and gradual curves.
Hand-draw operation as well as motor operation
A built-in mechanical clutch allows the drapery to be drawn by hand smoothly.
Highly durable belt drive transmission system
The belt drive transmission system is highly durable.
Dry and Wet contact
Ti-8040 can be operated by dry (no-voltage) and wet (high voltage) contact.
Touch motion function
The touch motion function can perform opening/closing of curtains without using any switch.
If curtain is drawn, it will begin to move in the direction itself, and will stop at the place on limit setup.

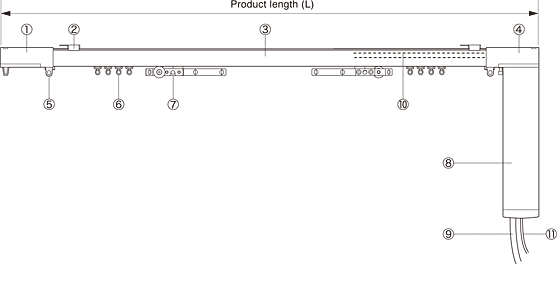

Product Overall View and Names of Parts

No. | Product Name | Color | Materials/Specifications |
① | End Side Pulley | White | Molded plastic |
② | Ceiling Single Bracket M | White | Steel |
③ | Rail | White | Aluminum |
④ | Motor Side Pulley | White | Molded plastic |
⑤ | Stop | Silver | Steel |
⑥ | Noiseless Roller | Natural | Molded plastic |
⑦ | Pilot Roller Set | Silver | Steel, Molded plastic |
⑧ | Motor | White | Aluminum, molded plastic (case) |
⑨ | Electric Cord with the ground | White | Wire (1 m/39″) |
⑩ | Drive Belt | Green | 3-layer structure of steel wires, plastic and fiber |
⑪ | Antenna | White | Wire |
Rail Cross Section

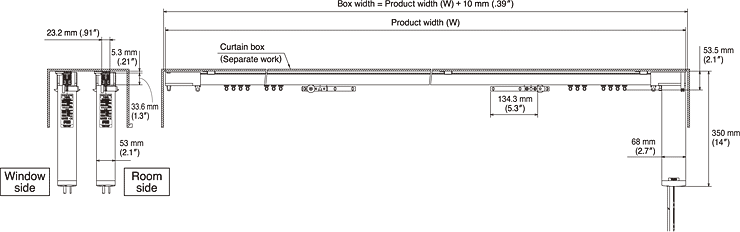

Installation Dimensions

Parts Size
Pilot Roller with Arm

Ceiling Single Bracket M

Product View and Specifications


Applicable Range
Specifications | Curtain Weight*5 | Product Length | ||
Straight | ![]() | One-way Draw | 40 kg (88 lb) | 1,000–10,000 mm (39–394″) |
Two-way Draw | 40 kg (88 lb) [One-way Draw: 20 kg (44 lb)] | |||
Single Curve*1 | ![]() | One-way Draw | 15 kg (33 lb) | 1,200–10,000 mm (47–394″) |
Two-way Draw | 15 kg (33 lb) [One-way Draw: 7 kg (15.4 lb)] | |||
Two Curves*2 | ![]() | One-way Draw | 15 kg (33 lb) | 1,500–6,000 mm (59–236″) |
Two-way Draw | 15 kg (33 lb) [One-way Draw: 7 kg (15.4 lb)] | |||
Overall Curve Half*3 | ![]() | One-way Draw | 15 kg (33 lb) | 1,000–6,000 mm (39–236″) |
Two-way Draw | 15 kg (33 lb) [One-way Draw: 7 kg (15.4 lb)] |
*1 With regular curve radius of 300R (11.8″R) or 400R (16″R), curve bending is available in the range of 90°to 179°.
*2 With regular curve radius of 300R (11.8″R) or 400R (16″R), curve bending is available in the range of 90°to 179°.
*3 Overall curve half is available with a curve radius of 1,000R (39″R) or more. The number of splice is one piece only, and two tracks need to be spliced in the center.
*4 A splice between two curves requires at least 400 mm (16″) of a straight portion, and a non-splice between two curves requires at least 200 mm (7.9″) of a straight portion.
*5 An allowable curtain load per roller is 1.5 kg (3.3 lb) or less.

Bracket Installation Interval and Allowable Curtain Load

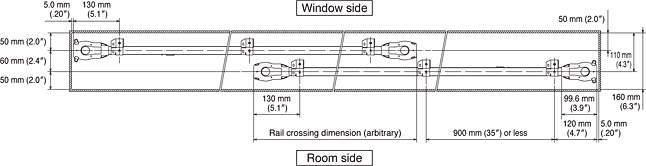

Installation Dimensions and Diagram

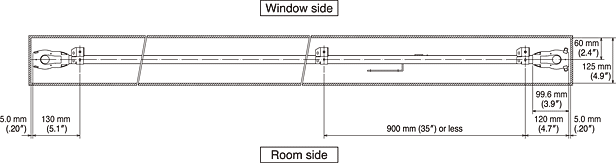

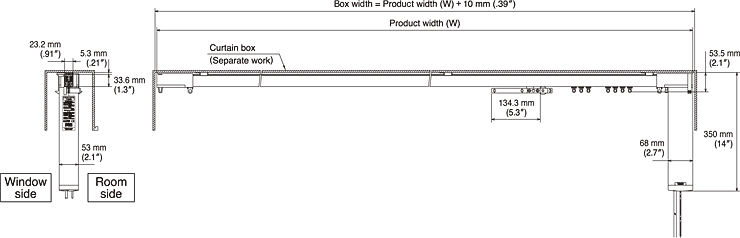

One-way draw: ceiling single attachment

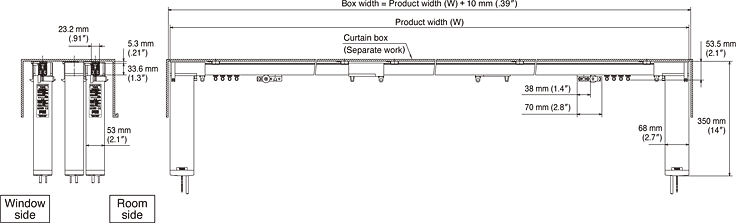

Two-way draw: ceiling double attachment

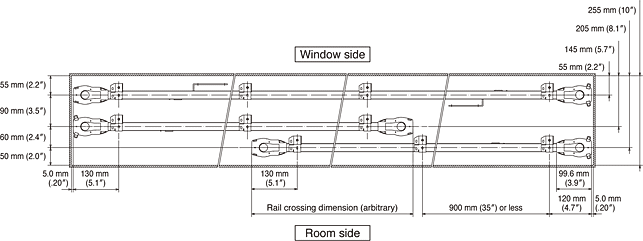

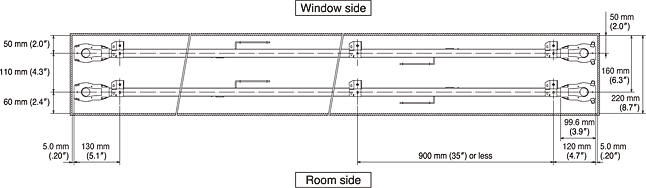

Two-way draw: ceiling double attachment (Overlap rail)


Two-way draw: ceiling double attachment (Room side: Overlap with two rails, Window side: Master roller)

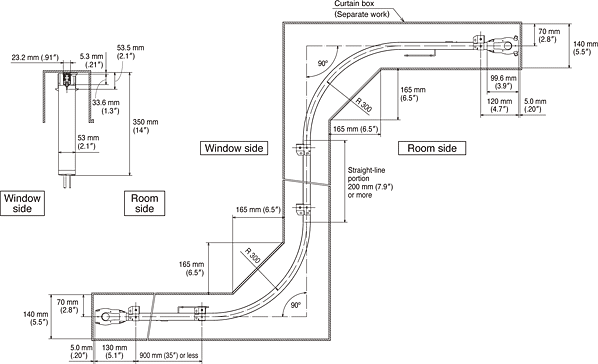

Single curve one-way draw: ceiling single attachment

Single curve one-way draw: ceiling double attachment

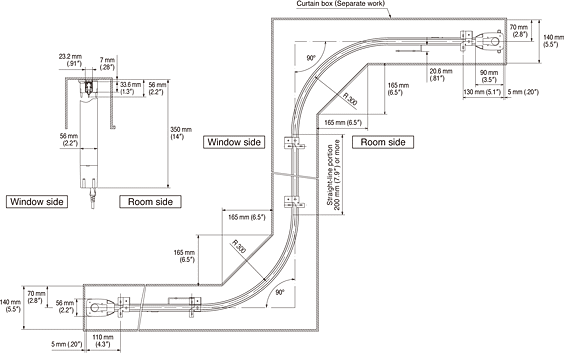

Two curves two-way draw: ceiling single attachment

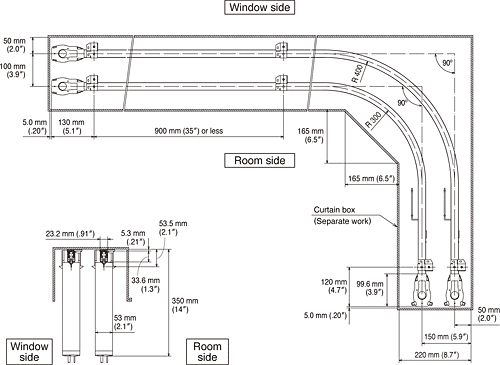

Two curves one-way draw: ceiling double attachment (Room side: Overlap with two rails, Window side: Master roller)

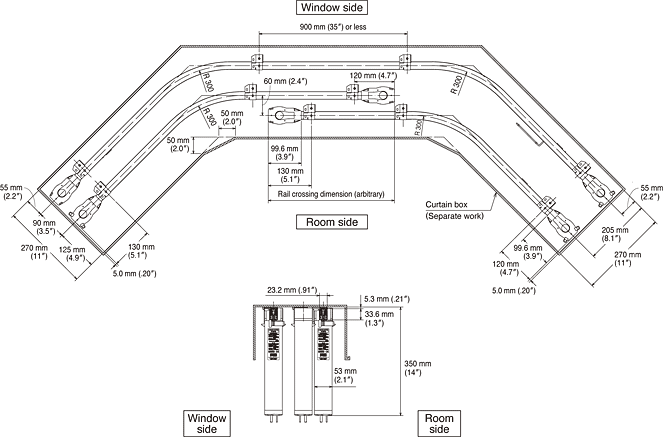

Two curves (S-shaped) two-way draw: ceiling single attachment

Two curves (S-shaped): ceiling single attachment

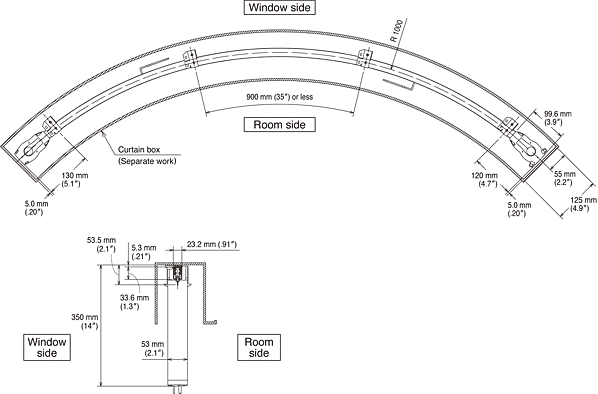

Overall curve two-way draw: ceiling single attachment

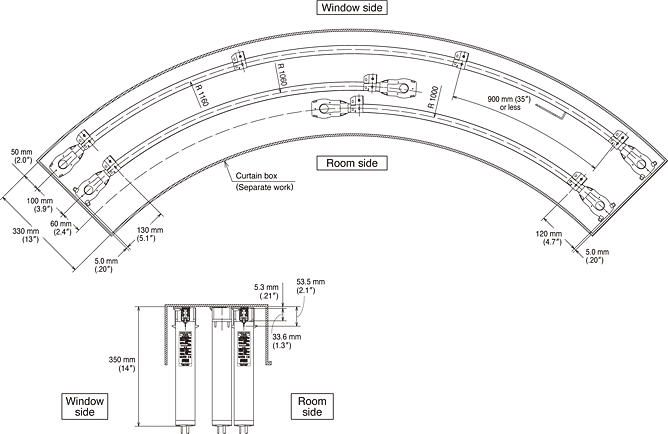

Overall curve half one-way draw: ceiling double attachment (Room side: Overlap with two rails, Window side: Master roller)

Basic Wiring and Connecting Diagram
Note that the method of connecting the product to the power line differs depending upon the type of switch used.

Operations and Connecting Diagrams

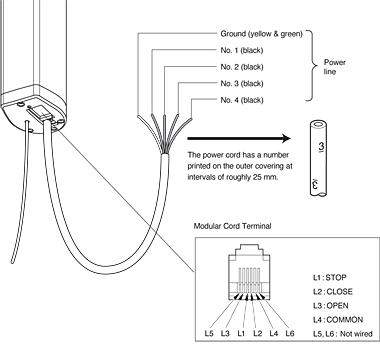

Wire | 3 Lines | 4 Lines | 5 Lines |
Live, Neutral, Earth | Neutral, Open, Close , Earth | Live, Neutral, Open, Close , Earth | |
Contact | Dry | Wet | Dry / Wet |
FM Remote | ○ | ○ | ○ |
Slow Stop | ○ | – | ○ |
Touch Motion | ○ | ○ | ○ |
When using a dry contact (no-voltage) switch *Power line 3-core type
Single Operation
Basic Wiring Diagram

Basic Connecting Diagram

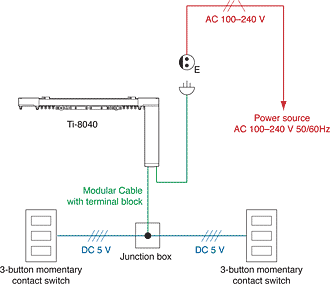

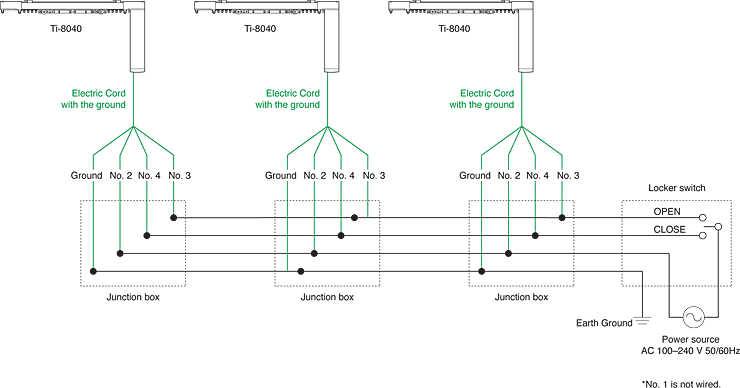

Operation from Two Locations

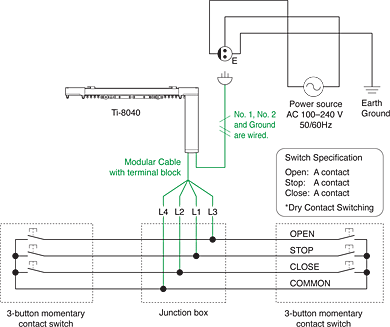

Basic Wiring Diagram

Basic Connecting Diagram

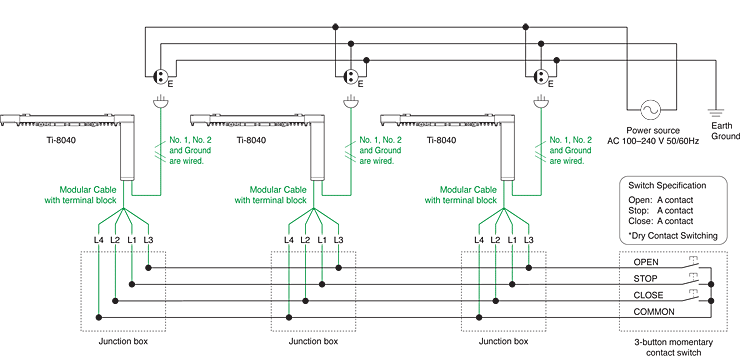

Simultaneous Operation
Basic Wiring Diagram

Basic Connecting Diagram

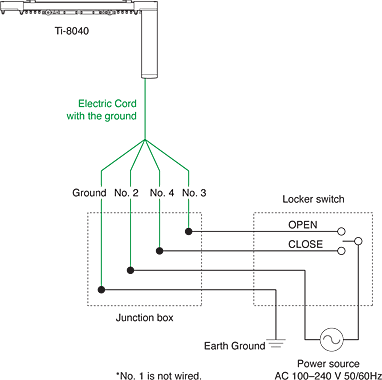

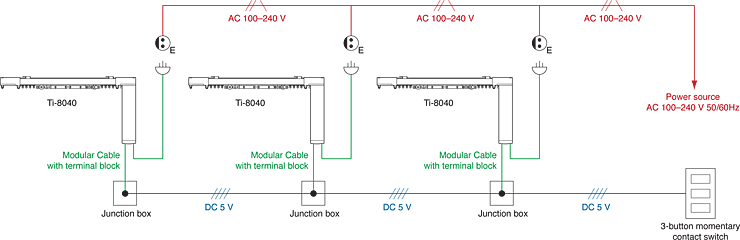

When using a wet contact (high voltage) switch *Power line 4-core type

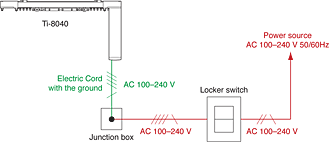

Single Operation
Basic Wiring Diagram

Basic Connecting Diagram

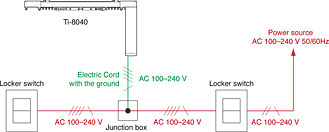

Single Operation
Basic Wiring Diagram

Basic Connecting Diagram

Simultaneous Operation
Basic Wiring Diagram

Basic Connecting Diagram

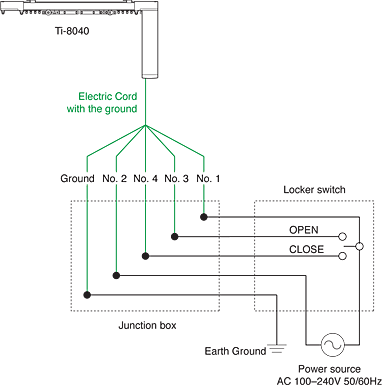

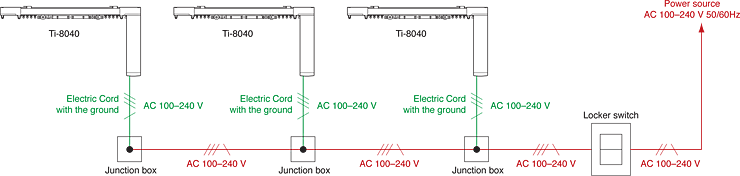

When using a wet contact (high voltage) switch *Power line 5-core type
Single Operation
Basic Wiring Diagram

Basic Connecting Diagram

Operation from Two Locations
Basic Wiring Diagram

Basic Connecting Diagram

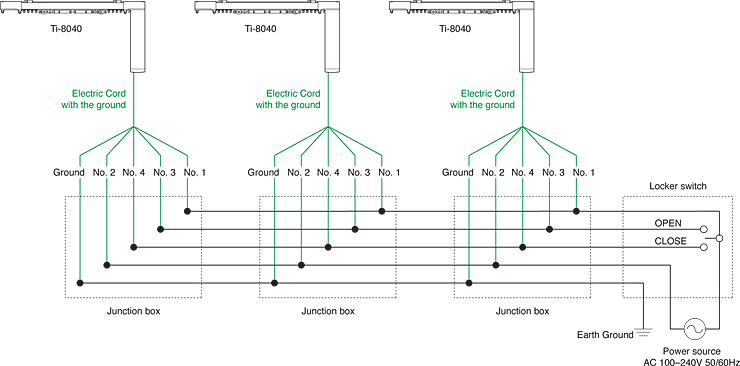

Simultaneous Operation
Basic Wiring Diagram

Basic Connecting Diagram

Wet contact (high voltage) / Dry contact (no-voltage) switch common

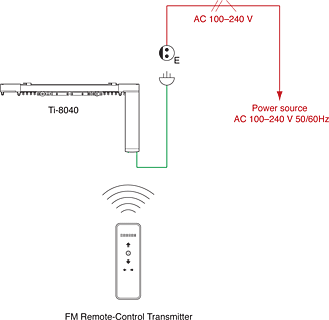

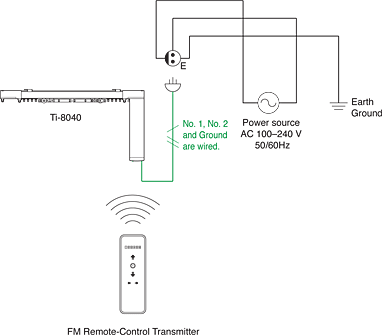

FM Remote-Control Built-in Receiver
Basic Wiring Diagram

Basic Connecting Diagram

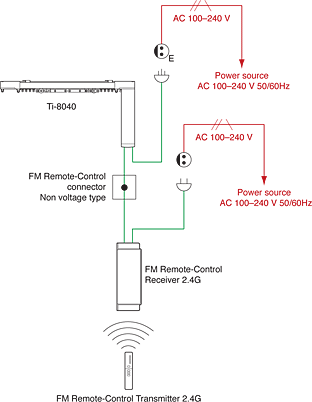

FM Remote-Control Receiver 2.4G
(Can operate with other TOSO motorized products by using FM Remote-Control 2.4G)

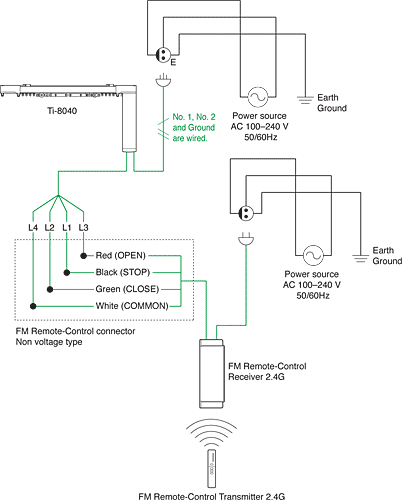

Basic Wiring Diagram

Basic Connecting Diagram

Explanatory notes: − Power supply, − Low voltage control line, − Main body attachment or TOSO standard.
Rails
White Tracks
Size | Product Code |
5.00 m (197″) | 04990014 |
Parts List
Product Name | Product Code | |
Ti-8040 Motor Set | ![]() |
30006904 |
End Side Pulley | ![]() |
30006881 |
Motor Side Pulley | ![]() |
30006880 |
FM Remote-Control Transmitter (6 channels) | ![]() |
30006891 |
Ti-8040 Motor Set | ![]() |
30006904 |
Stop | ![]() |
04990022 |
Ceiling Single Bracket M | ![]() |
30006884 |
Noiseless Roller | ![]() |
04990006 |
Pilot Roller | ![]() |
04990007 |
Joint Plate | ![]() |
04990011 |
Master Roller Arm | ![]() |
30006882 |
Pilot Roller Plate with Wheel | ![]() |
04990013 |
Drive Belt (100m) | ![]() |
30006883 |
Belt Joint | ![]() |
04990009 |
Belt Joint Cover | ![]() |
04990010 |
OT Splice | ![]() |
04990020 |
Splice Pin | ![]() |
04990021 |
