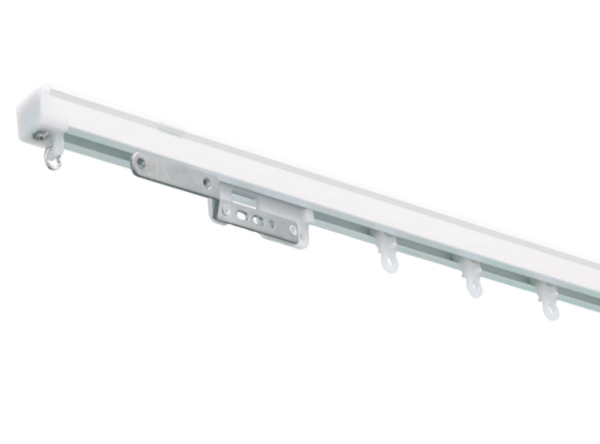

Functional Curtain Tracks

Easy to use

Smooth rollers

Material & Finishes

Allowable Load

Installation Dimensions

Rails

Parts List

PDF Catalog

Features

Features

  • Extremely easy to use and install rail for lightweight curtains.
  • Wheel-type rollers assure smooth running even over rail joints.
  • Easy-snap Brackets for simple installation.

Materials and Finishes

PartsMaterialFinish
RailSilverAluminum alloy
extrusion material		Alumite
UmberAlumite umber
WhiteAlumite white
Warm whiteWarm white
PartsMaterialFinish
RollerPlateHard polyethylene–
WheelAcetal resin
Oval ringStainless steel
End StopBodyHard polyethylene–
Oval ringStainless steel
BracketBodySteel–
Snap boardAcetal resin

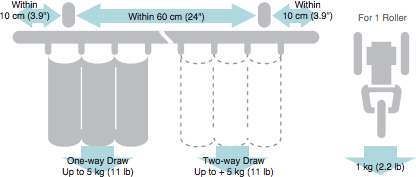

Bracket Installation Interval and Allowable Curtain Load

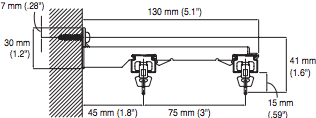

Installation Dimensions

Installation

Ceiling Attachment

Direct attachment

Ceiling Single Bracket

Bracket width = 18 mm (.71")

Ceiling Single Bracket

Bracket width = 18 mm (.71")

Extra Ceiling Double Bracket

Bracket width = 18 mm (.71")

Wall Attachment

Single Bracket

Bracket width = 19 mm (.75")

Double Bracket

Bracket width = 19 mm (.75")

NT Double Bracket

Bracket width = 44 mm (1.7")

Extra Double Bracket

Bracket width = 19 mm (.75")

Bracket with a temporary hook makes installation easier. This bracket allows you to adjust the rail position. After adjusting the position, simply snap the rail into the bracket to secure firmly.

Rails

Winpia Rails

Silver

Umber

White

Warm White

SizeProduct Code
SilverUmberWhiteWarm white
1.82 m (72″)01640095016400870164056001640237
2.00 m (79″)01640096016400880164056101640238
2.73 m (107″)01640097016400890164056201640239
3.00 m (118″)01640098016400900164056301640240
3.64 m (143″)01640099016400910164056401640241
4.00 m (157″)01640100016400920164056501640242
Curved Rail
(180 mmR/7.1″R)		0.40 m x 0.40 m (16″ x 16″)0164010101640093–01640243
1.00 m x 1.00 m (39″ x 39″)0164010201640094–01640244
Overlap Rail 0.50 m (20″)00080550–––

Parts List

Product NameProduct Code
RollersWinpia Noiseless Roller
(8 pieces per strip)
03270045
Winpia Noiseless
MG Carrier
03270046
Winpia Noiseless
One-way
MG Carrier
03270047
Roller
(8 pieces per strip)
01640001
MG Carrier
01640002
One-way
MG
Carrier
01640003
BracketsSingle Bracket
Silver01640004
Umber01640005
White03220034
Warm white01640006
Double Bracket
Silver01640007
Umber01640008
White03220035
Warm white01640009
Product NameProduct Code
Other
Parts		Splice
01640022
Adjustable
Hanger
Rod A
A170
(130–170 mm
/5.1″–6.7″)		Silver00290034
White00290038
Warm white00290035
A250
(170–250 mm
/6.7″–9.8″		Silver00290036
White00290039
Warm white00290037
A400
(245–400 mm
/9.6″–16″)		Silver00290017
White00290040
Warm white00290030
A700
(395–700 mm
/16″–28″)		Silver00290016
White00290041
Warm white00290031
A1100
(595–1,100 mm
/23″–43″)		Silver00290015
White00290042
Warm white00290032
A1600
(845–1,600 mm
/33″–63″)		Silver00290014
White00290043
Warm white00290033
Adjustable
Hanger
Rod B
B400
(250–400 mm/
9.8″–16″)		Umber00290013
White00290026
B700
(400–700 mm/
16″–28″)		Umber00290012
White00290025
Product NameProduct Code
BracketsExtra Double
Bracket
Silver01640305
Umber01640306
Warm white01640307
NT Double
Bracket
Silver01640540
Umber01640544
Warm white01640546
Ceiling Single
Bracket
Silver01640010
Umber01640011
Warm white01640012
Ceiling Double
Bracket
Silver01640013
Umber01640014
White03220037
Warm white01640015
Extra Ceiling
Double Bracket
Silver01640310
Umber01640311
Warm white01640312
Overhead Hanger
Silver01640027
Umber01640016
Warm white01640017
Wall Bracket
Silver00210015
Umber00210201
White00210331
Warm white00210202
End
Stops		End Stop
White01640020
Umber01640021
Return Aids for
End Stop
0053006
