Venetian Blinds
Vertical Blinds
Product Line-up
Line-up

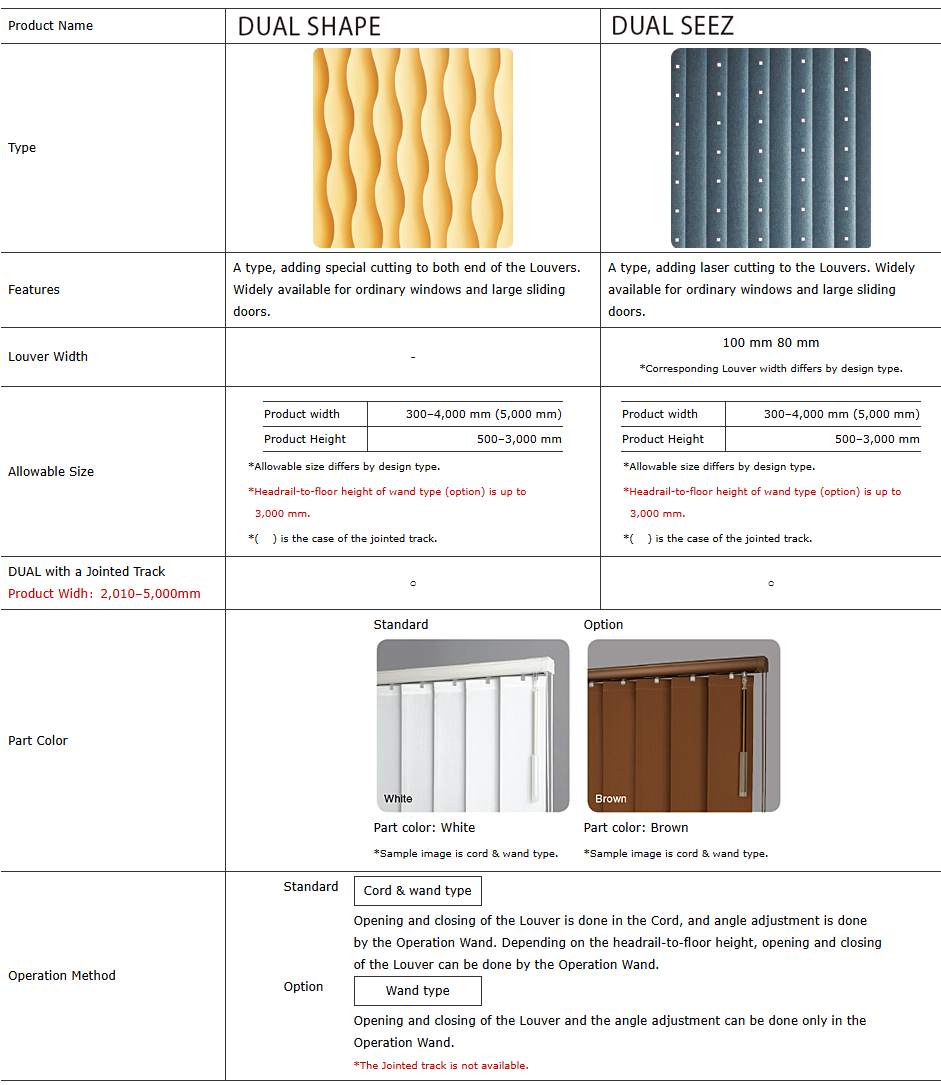

Dual Shape
| Features | Operation Method |
|---|---|
|
A type, adding special cutting to both end of the Louvers. Widely available for ordinary windows and large sliding doors. |
Opening and closing of the Louver is done in the Cord, and angle adjustment is done by the Operation Wand. Depending on the headrail-to-floor height, opening and closing of the Louver can be done by the Operation Wand. |
| Allowable Size | Width (W) | Height (H) |
|---|---|---|
|
Allowable size differs by design type. |
300–4,000 mm (5,000 mm) |
500–3,000 mm |
Dual Seez
| Features | Operation Method |
|---|---|
|
A type, adding laser cutting to the Louvers. Widely available for ordinary windows and large sliding doors. |
Opening and closing of the Louver is done in the Cord, and angle adjustment is done by the Operation Wand. Depending on the headrail-to-floor height, opening and closing of the Louver can be done by the Operation Wand. |
| Louver Width | Product Width | Product Height |
|---|---|---|
|
100 mm 80 mm. |
300–4,000 mm (5,000 mm) |
500–3,000 mm |

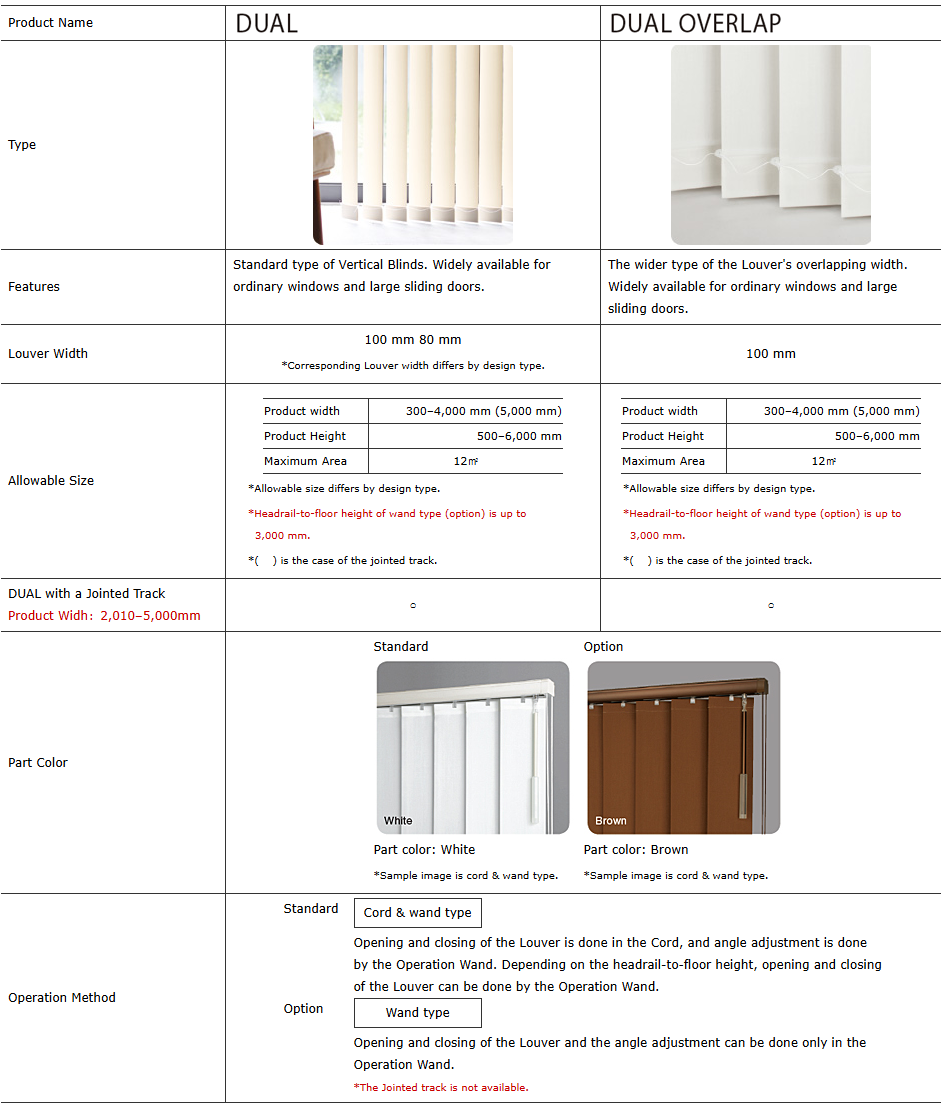

Dual
| Features | Operation Method |
|---|---|
|
Standard type of Vertical Blinds. Widely available for ordinary windows and large sliding doors. |
Opening and closing of the Louver is done in the Cord, and angle adjustment is done by the Operation Wand. Depending on the headrail-to-floor height, opening and closing of the Louver can be done by the Operation Wand. |
| Louver Width | Product Width | Product Height | Max Area |
|---|---|---|---|
|
100 mm 80 mm. |
300–4,000 mm (5,000 mm) |
500–3,000 mm |
12㎡ |
Dual Overlap
| Features | Operation Method |
|---|---|
|
The wider type of the Louver's overlapping width. Widely available for ordinary windows and large sliding doors. |
Opening and closing of the Louver is done in the Cord, and angle adjustment is done by the Operation Wand. Depending on the headrail-to-floor height, opening and closing of the Louver can be done by the Operation Wand. |
| Louver Width | Product Width | Product Height | Max Area |
|---|---|---|---|
|
100 mm |
300–4,000 mm (5,000 mm) |
500–3,000 mm |
12㎡ |
