    Roller Blinds

    Mytec 01

    Smooth operation.

    Mytec 01 Loop

    Features

    Installation

    Line up

    Features

    Features

    Unique features

    Light and smooth operation.

    • Mytec 01 Loop incorporates the spring assisted mechanism in its Chain Drive System and Mytec 01 equips the Speed Controller with its Spring Drive System.
    • These two systems enable light and smooth operation of the blind.

    Mytec 01 Loop

    Chain Drive System

    The spring assisted mechanism allows you to operate the blind with ease even for a large or tall windows.

    Mytec 01

    Spring Drive System

    Just pull down the pull ball or the pull grip, and the blind stops at anywhere you want.
    To raise the screen, pull the pull ball or the pull grip just a little.
    The blind rolls up at the same speed without acceleration.

    The Speed Controller installed in the Spring Drive System, Mytec 01 prevents the blind from going up rapidly.

    Mytec 01 slowly moves up at a constant speed because the Speed Controller prevents its rapid uplift.

    Mytec 01

    Ordinary Roller Blinds

    Optional Parts

    A variety of optional parts responds to a wide range of use.

    Both Mytec 01 Loop and Mytec 01 can meet various needs of installation sites through attaching various optional parts to the standard products.
    Especially Mytec 01 has high versatility.

     Mytec 01 Loop (Chain Drive System)Mytec 01 (Spring Drive System)
    Side Bracket TypeSet Bar Type
    		Side Bracket TypeSet Bar Type
    Standard○○○○
    OptionTop Box Type○ー○ー
    Side Frame Type○○ーー
    Top Box + Side Frame Type○ーーー
    Guide Wire Type○○○○
    Top Box + Guide Wire Type○ー○ー
    Link Type○ーーー
    Double Type○ーーー
    Link Double Type○ーーー

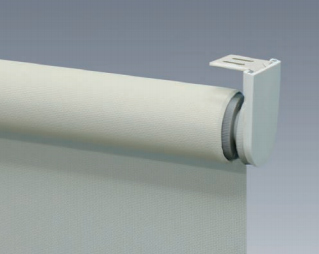

    The color variation of the Side Holder.

    Warm white

    Mytec 01

    Gray

    Black

    Most parts can be commonly used, resulting in decrease of inventory.

    Key parts including Roller Pipe and Weight Bar can be commonly used for all types of the products. It, therefore, realizes high working efficiency during assembly and decrease of inventory risk.

    Lineup

    Lineup

    Mytec 01 Loop

    • Blinds up to 2700 mm (106″) width and 3000 mm (118″) height with 3.7 kg (8.2 lb) screen weight are possible.
    • The spring assist mechanism attached makes for light operation even on large windows.
    • Chain choice can be brass, stainless steel or plastic.
      Link type, double type, and four color variations are available for Side Bracket type only.
    • With Set Bar Type, one person can install the blind by him or herself. Install the brackets first and then snap the blind onto the brackets.

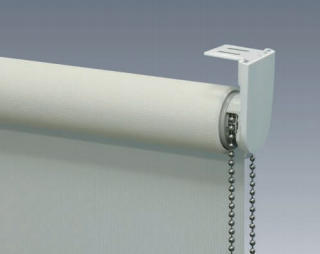

    Side Bracket Type

    Side Bracket Type

    Mytec 01

    • No crash at the top. A speed controller is standard for the spring drive system, enabling the blind to go up at a constant speed.
    • No irritation to stop the blind. The mechanism assures you to stop the blind anywhere at your discretion.
    • A stop controller is optional. It is a perfect solution to setting the upper limit position.
    • With Set Bar Type, one person can install the blind by him or herself. Install the brackets first and then snap the blind onto the brackets.
    The bracket can be obscured by installing the bracket back and forth opposite, when setting it up.

    Side Bracket Type

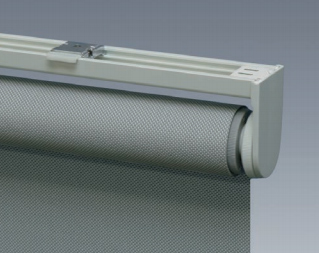

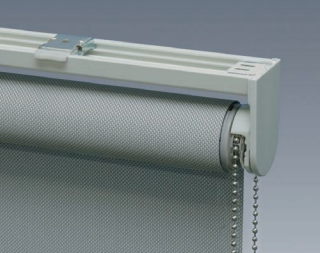

    Set Bar Type

    Lineup - Option

    Top Box Type

    Top Box covers the rolled-up screens of both Mytec 01 systems. Top Box is simple form and design, and can neatly house screens without disfigurement.

    Mytec 01 Loop + Top Box

    Mytec 01 + Top Box

    *Two sizes, S (Small) and M (Medium), are available for the Top Box.

    Mytec 01 Loop(Chain Drive System)Mytec 01(Spring Drive System)
    Side Bracket Type
    ●    		Set Bar TypeSide Bracket Type
    ●    		Set Bar Type

    Side Frame Type

    Mytec 01 Loop + Side Frame

    Side Frame secures the screen of Mytec 01 Loop (Chain Drive System) system. The frame can fill a gap between screen and window case. It also prevents the screen from flip-flop due to wind from the outside, resulting in long-lasting use.

    *Cannot be used for Mytec 01 (Spring Drive System).

    Mytec 01 Loop(Chain Drive System)Mytec 01(Spring Drive System)
    Side Bracket Type
    ●    		Set Bar Type
    ●    		Side Bracket TypeSet Bar Type

    Top Box + Side Frame Type

    Mytec 01 Loop + Top Box + Side Frame

    Both Top Box and Side Frame are installed for the screen of Mytec 01 Loop (Chain Drive System). This type can fill a gap between screen and window case not only on either side but also at the top, reducing leak of light. It also prevents the screen from flip-flop due to wind from the outside, resulting in long-lasting use.

    *Two sizes, S (Small) and M (Medium), are available for the Top Box.
    *Cannot be used for Mytec 01 (Spring Drive System).

    Mytec 01 Loop(Chain Drive System)Mytec 01(Spring Drive System)
    Side Bracket Type
    ●    		Set Bar TypeSide Bracket TypeSet Bar Type

    Guide Wire Type

    Guide Wires are installed on either side of the screens for both Mytec 01 systems to secure them anteroposteriorly. This simple wire can keep the appearance around the screen neat and enables the screen to tidily move up and down. It also prevents the screen from flip-flop due to wind from the outside, resulting in long-lasting use.

    Mytec 01 Loop + Top Box

    Mytec 01 + Top Box

    *Two sizes, S (Small) and M (Medium), are available for the Top Box.

    Mytec 01 Loop(Chain Drive System)Mytec 01(Spring Drive System)
    Side Bracket Type
    ●    		Set Bar TypeSide Bracket Type
    ●    		Set Bar Type

    Top Box + Guide Wire Type

    Both Top Box and Guide Wire are installed for the screens of Mytec 01 Loop and Mytec 01. Top Box can neatly cover the rolled-up screens and the Guide Wire enables the screen to tidily move up and down.

    Mytec 01 Loop + Top Box + Guide Wire

    Mytec 01 + Top Box +Guide Wire

    *Two sizes, S (Small) and M (Medium), are available for the Top Box.

    *Steel and nylon wires are available.

    Mytec 01 Loop(Chain Drive System)Mytec 01(Spring Drive System)
    Side Bracket Type
    ●    		Set Bar TypeSide Bracket Type
    ●    		Set Bar Type

    Side Frame Type

    Two or three screens of Mytec 01 Loop (Chain Drive System) can be laterally installed. All screens can be operated by one chain. This type is recommended for wide-opening windows.

    Mytec 01 Loop(Chain Drive System)Mytec 01(Spring Drive System)
    Side Bracket Type
    ●    		Set Bar TypeSide Bracket TypeSet Bar Type

    Double Type

    Double Type and Link Type of Mytec 01 Loop are combined. The screens installed doubly can be operated by their own chains and two or three screens installed laterally can be operated by one chain.

    Mytec 01 Loop(Chain Drive System)Mytec 01(Spring Drive System)
    Side Bracket Type
    ●    		Set Bar TypeSide Bracket TypeSet Bar Type

    Link Double Type

    Double Type and Link Type of Mytec 01 Loop are combined. The screens installed doubly can be operated by their own chains and two or three screens installed laterally can be operated by one chain.

    Mytec 01 Loop(Chain Drive System)Mytec 01(Spring Drive System)
    Side Bracket Type
    ●    		Set Bar TypeSide Bracket TypeSet Bar Type

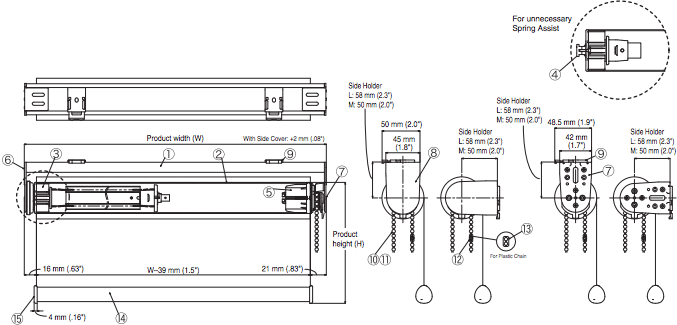

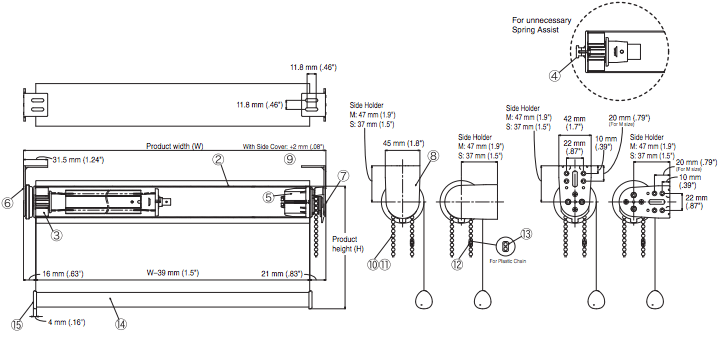

    Structure Drawing

    Mytec 01 Loop (Standard)

    Product View

    Side Bracket Type
    Set Bar Type
    Components and Materials
    No.ComponentsMaterial
    ①Set BarAluminum
    ②Roller PipeAluminum
    ③Spring SetSteel, Molded resin
    ④Non-balancer SetSteel, Molded resin
    ⑤Chain HousingSteel, Molded resin
    ⑥SP Side Holder S/M/LSteel, Molded resin
    ⑦Chain Side Holder S/M/LSteel, Molded resin
    ⑧Side Holder Cover S/M/LMolded resin
    No.ComponentsMaterial
    ⑨BracketSteel, Molded resin
    ⑩Metal Ball ChainSUS or Brass
    ⑪Plastic Ball ChainMolded resin
    ⑫Metal Ball Chain ConnectorSUS or Brass
    ⑬Plastic Ball Chain JointsMolded resin
    ⑭MT03 Weight BarAluminum
    ⑮MT03 Weight Bar CapMolded resin

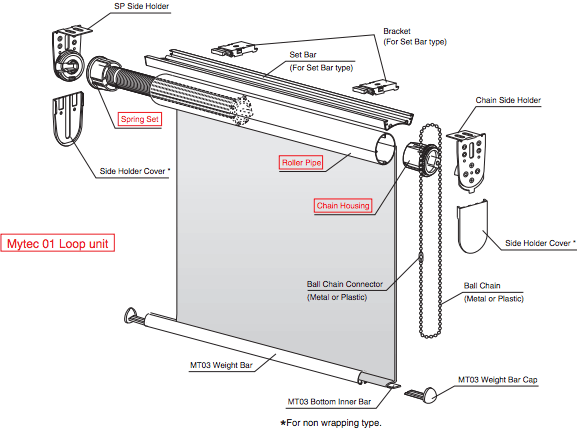

    Exploded View
    Bracket
    Set Bar type only.
    Product WidthNumber of
    Bracket
    1400 mm (55″) or less2
    1410 mm (56″) or more3
    Specifications
     Metal Ball ChainPlastic Ball Chain (Option)
    Side Bracket Type (1 unit)Set Bar TypeSide Bracket Type (1 unit)Set Bar Type
    Maximum Screen Weight3.7 kg (8.2 lb)3.2 kg (7.1 lb)
    Product Weight1.9 kg (4.2 lb)2.3 kg (5.1 lb)1.8 kg (4.0 lb)2.2 kg (4.9 lb)
    (Width: 2000 mm/79″ without screen) Ex.:
    Spring Set F, Side Holder M—Ball Chain length is 3000 mm (118″)
    Allowable SizeProduct Width (W)300 mm (11.8″) to 2700 mm (106″)*
    Product Height (H)100 mm (3.9″) to 3000 mm (118″)
    Ratio (W : H)1 : 3 (limit)

    Notes:
    Regarding allowable size (W, H, Ratio), depending on material and weight, the screen may get wrinkled, curled or frayed.
    Maximum Screen Weights are different according to the screen material.
    Please use Roller Pipe 45 mm DIA for W=2,010 mm (79.1″) or more.

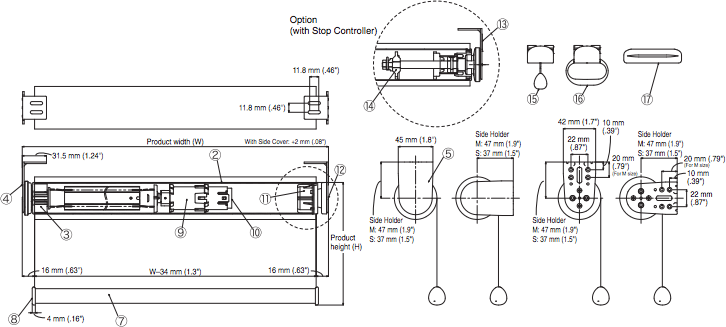

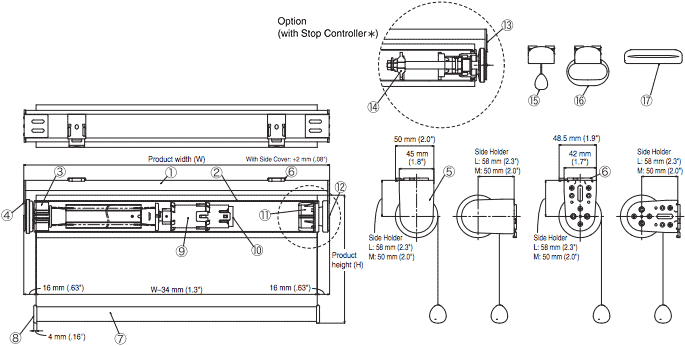

    Mytec 01 (Standard)

    Product View

    Side Bracket Type
    Set Bar Type
    Components and Materials
    No.ComponentsMaterial
    ①Set BarAluminum
    ②Roller PipeAluminum
    ③Spring SetSteel, Molded resin
    ④SP Side Holder S/M/LSteel, Molded resin
    ⑤Side Holder Cover S/M/LMolded resin
    ⑥BracketSteel, Molded resin
    ⑦MT03 Weight BarAluminum
    ⑧MT03 Weight Bar CapMolded resin
    ⑨ClutchMolded resin
    No.ComponentsMaterial
    ⑩Speed ControllerMolded resin
    ⑪Pipe EndMolded resin
    ⑫End Side Holder S/M/LSteel, Molded resin
    ⑬SC Side Holder S/M/LSteel, Molded resin
    ⑭Stop ControllerMolded resin
    ⑮MT03 Pull Ball SetMolded resin
    ⑯MT03 Pull Grip SetMolded resin
    ⑰MT03 Flat Grip SetMolded resin
    ④⑤⑫⑬: Use S/M for Side Bracket type, and use M/L for Set Bar type.

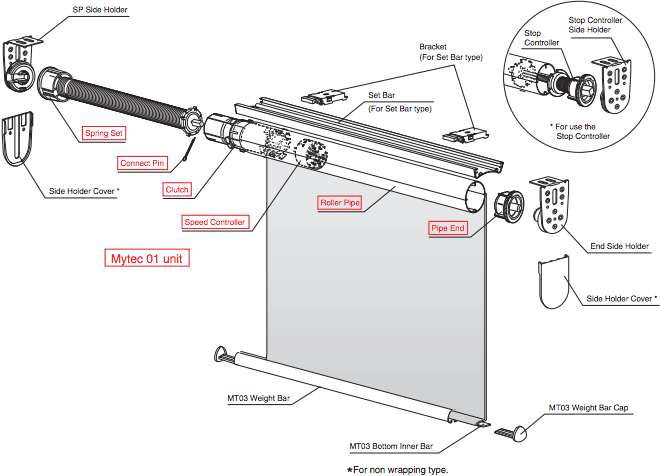

    Exploded View
    Bracket
    Set Bar type only.
    Product WidthNumber of
    Bracket
    1400 mm (55″) or less2
    1410 mm (56″) or more3
    Specifications
    Side Bracket Type (1 unit) Set Bar Type
    Maximum Screen Weight 1.8 kg (3.0 lb)
    Product Weight 1.9 kg (4.2 lb) 2.3 kg (5.1 lb)
    (Width: 2000 mm/79″ without screen) Ex.: Spring Set F, Side Holder M
    Allowable Size Product Width (W) 300 mm (11.8″) to 2000 mm (78.7″)
    Product Height (H) 100 mm (3.9″) to 3000 mm (118″)
    Ratio (W : H) 1 : 3 (limit)
    Notes:
    Regarding allowable size (W, H, Ratio), depending on material and weight, the screen may get wrinkled, curled or frayed.
    Maximum Screen Weights are different according to the screen material.
    *Minimum width is 600 mm (23.6″) at Stop Controller using. (Depend on the screen.)

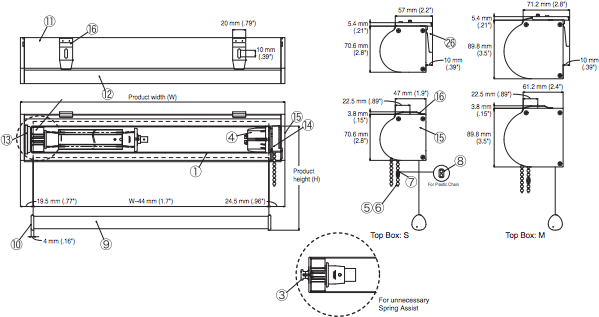

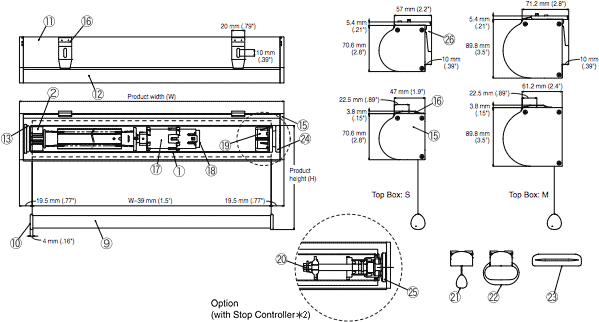

    Top Box Type

    Product View

    Mytec 01 Loop (Direct attachment is possible).
    Mytec 01 (Direct attachment is possible).
    Components and Materials
    No.ComponentsMaterial
    ①Roller PipeAluminum
    ②Spring SetSteel, Molded resin
    ③Non-balancer SetSteel, Molded resin
    ④Chain HousingSteel, Molded resin
    ⑤Metal Ball ChainSUS or Brass
    ⑥Plastic Ball ChainMolded resin
    ⑦Metal Ball Chain ConnectorSUS or Brass
    ⑧Plastic Ball Chain JointsMolded resin
    ⑨MT03 Weight BarAluminum
    ⑩MT03 Weight Bar CapMolded resin
    ⑪Top Box Base PlateAluminum
    ⑫Top Box Front CoverAluminum
    ⑬SP Side Holder for Top Box S/MSteel, Molded resin
    No.ComponentsMaterial
    ⑭Chain Side Holder for Top Box S/MSteel, Molded resin
    ⑮Top Box Cap (L/R) S/MMolded resi
    ⑯Top Box Ceiling BracketSUS
    ⑰ClutchMolded resin
    ⑱Speed ControllerMolded resin
    ⑲Pipe EndMolded resin
    ⑳Stop ControllerMolded resin
    21MT03 Pull Ball SetMolded resin
    22MT03 Pull Grip SetMolded resin
    23MT03 Flat Grip SetMolded resin
    24End Side Holder for Top Box S/MMolded resin
    25SC Side Holder for Top Box S/MMolded resin
    26Top Box Wall BracketSUS, Steel

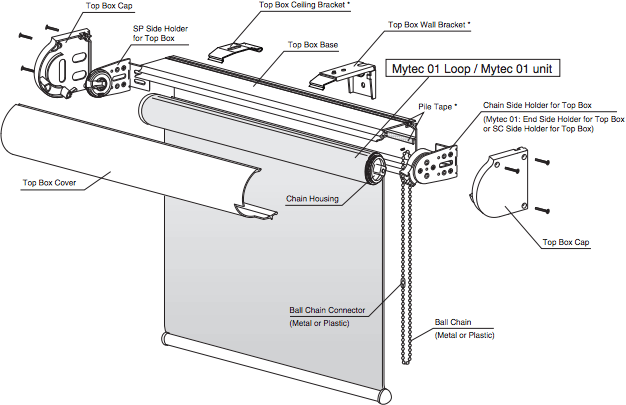

    Exploded View
    Ex. Mytec 01 Loop Top Box type
    Weight Bar
    Non wrapping type
    Wrapping type
    Bracket
    Ceiling Bracket
    Set Bar type only.
    Ceiling Bracket
    Product WidthNumber of
    Bracket
    1400 mm (55″) or less2
    1410 mm (56″) or more3
    Specifications
     Metal Ball ChainPlastic Ball ChainMytec 01 (Spring Drive System)
    Maximum Screen Weight3.7 kg (8.2 lb)3.2 kg (7.1 lb)1.8 kg (4.0 lb)
    Product Weight5.2 kg (11.4 lb)5.0 kg (11.0 lb)5.2 kg (11.4 lb)
    (Width: 2000 mm/79″ without screen)
    Ex.: Spring Set F,
    Side Holder M—Ball Chain length is 3000 mm (118″), Top Box M    		(Width: 2000 mm/79″ without screen)
    Ex.: Spring Set F, Side Holder M, Top Box M
    Allowable SizeProduct Width (W)300 mm (11.8″) to 2700 mm (106″) *1 *2300 mm (11.8″) to 2000 mm (78.7″)
    Product Height (H)100 mm (3.9″) to 3000 mm (118″)
    Ratio (W : H)1 : 3 (limit)

    Notes:

    Regarding allowable size (W, H, Ratio), depending on material and weight, the screen may get wrinkled, curled or frayed.
    Maximum Screen Weights are different according to the screen material.

    *1 Please use Roller Pipe 45 mm DIA for W=2,010 mm (79.1″) or more.
    *2 Minimum width is 600 mm (23.6″) at Stop Controller using. (Depend on the screen.)

    See features and optional functions in detail in the catalog

    See details in the catalog
