    Partrac II

    Adjustable Rods

    Delac Rollers

    Features

    Installation

    Material & Finishes

    Installation Method

    Rails

    Parts List

    Parts List

    PDF Catalog

    Features

    Features

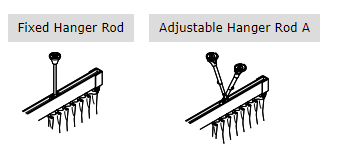

    Fixed Hanger Rod and Adjustable Hanger Rod A.

    Two types of hangers are available. The Fixed Hanger Rod provides a neat appearance while the Adjustable Hanger Rod A offers extra convenience when hanging directly above the rail is not possible.

    • *The Fixed Hanger Rod includes a base, cover and hanger rod.
    • *Available in two colors: white or natural.

    Standard curve and customized rails

    Installation

    Because of short delivery time, standard curved rails are recommended when installation is urgent. Delivery of customized curved rails takes a little longer but they offer advantages in terms of strength and price.

    A variety of last-in parts

    Overhead Hanger B

    The Overhead Hanger B, Curved Connector B, T Type Curved Connector and Double Connector B can be mounted after a rail has been installed. Overhead Hanger B in particular saves installation time and energy.

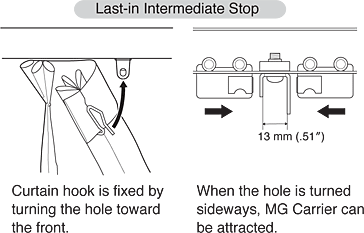

    Partitioning is flexible, by using the Last-in Intermediate Stop

    Last-in Intermediate Stop is usable both fix and open/close the curtain.

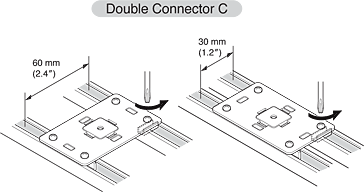

    Reduce the curtain interference, by using the Double Connector C

    Rails can be fixed at interval of 60mm (2.4″) or 30mm (1.2″). Reduce interference between the curtains, open/close curtains smoothly.

    Installation

    Installation

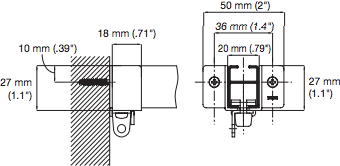

    Bracket Installation & Allowable Curtain Load

    With fixed intervals of 1.5 m (59″) …. 4 kg (8.8 lb) * When using in hospitals and other medical institutions, make sure that the rail is not made to bear the weight of a patient holding onto the curtain. If the load goes over that allowable, the curtain rail may come off from the brackets.

    Ceiling Single Bracket

    Single Bracket

    Wall Bracket A

    Wall Bracket B

    Double Connector C
    (30 mm pitch )

    Double Connector C
    (60 mm pitch)

    Last-in Intermediate Stop
    (Stop width = 13 mm/.51")

    Adjustable RangeAngle 60°Angle 40°
    MinimumA DimensionB DimensionA DimensionB Dimension
    Maximum
    A170130 mm (5.1″)129 mm (5.1″)118 mm (4.6″)137 mm (5.4″)81 mm (3.2″)
    170 mm (6.7″)163 mm (6.4″)158 mm (6.2″)175 mm (6.9″)108 mm (4.3″)
    A250170 mm (6.7″)163 mm (6.4″)158 mm (6.2″)175 mm (6.9″)108 mm (4.3″)
    250 mm (9.8″)233 mm (9.2″)238 mm (9.4″)250 mm (9.8″)163 mm (6.4″)
    A400245 mm (9.6″)228 mm (9.0″)233 mm (9.2″)245 mm (9.6″)159 mm (6.3″)
    400 mm (16″)363 mm (14″)388 mm (15″)391 mm (15″)265 mm (10″)
    A700395 mm (16″)358 mm (14″)383 mm (15″)386 mm (15″)262 mm (10″)
    700 mm (28″)622 mm (24″)688 mm (27″)673 mm (27″)471 mm (19″)
    A1100595 mm (23″)531 mm (21″)583 mm (23″)574 mm (23″)399 mm (16″)
    1,100 mm (43″)969 mm (38″)1,088 mm (43″)1,049 mm (41″)744 mm (29″)
    A1600845 mm (33″)748 mm (29″)833 mm (33″)809 mm (32″)570 mm (22″)
    1,600 mm (63″)1,402 mm (55″)1,588 mm (63″)1,519 mm (60″)1,086 mm (43″)

    Materials and Finishes

    PartsMaterialFinish
    RailSilverAluminum alloy
    extrusion materia    		Alumite
    WhiteWhite
    Roller
    (C Type and New Delac are common)    		PlateHard polyethylene–
    WheelAcetal resin
    Oval ringStainless steel
    PartsMaterialFinish
    End StopBodySteelAlumite
    Oval ringStainless steel
    BracketBodySteel–
    Adjustable Hanger Rod APipeSteel–
    Fixed Hanger RodAluminum

    Installation Method

    Straight Partition

    Wall Bracket

    When both ends of the rail can be secured to the wall, use Wall Brackets for installation. If the rail is longer than 1.5 m (59″), use Hanger Rods at intervals of 1.5 m (59″) or less.

    Hanger Rod

    If one end of the rail can not be secured to the wall, hang Adjustable Hanger Rods in a V type suspension to prevent swinging. If the rail is longer than 1.5 m (59″), also install Hanger Rods at intervals of
    1.5 m (59″) or less. (For Fixed
    hanger Rods 350 and 500, hang at
    intervals of 1.0 m/39″ or less.)

    T Type Curved Connector

    When a T Type Curved Connector is used, install the Hanger Rod as shown below.

    Curved Partition

    Hanger Rod

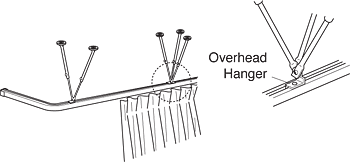

    For partitions using a curved rail, be sure to use Hanger Rods in a V type suspension in corners. If the rail is longer than 1.5 m (59″), also install Hanger Rods at intervals of 1.5 m (59″) or less. If one end of the rail is not secured to the wall, use Hanger Rods in a tripod type suspension to prevent back/forth, right/left swinging.

    Curved Connector

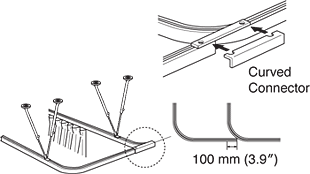

    For a single-curve installation, clamp the rails at a joint using a Curved Connector B, and suspend the rails with Hanger Rods. (Place the rails to overlap by 100 mm/3.9″.)

    Double Connector

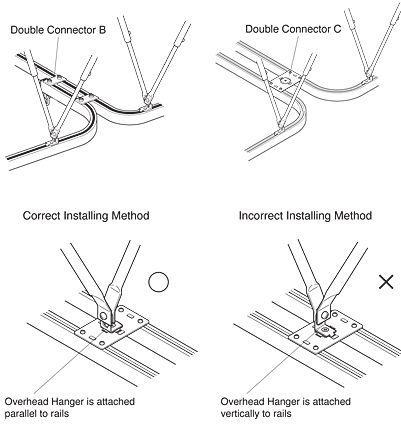

    When using a double-curve installation, clamp the rails with two Double Connectors and suspend the rails with Hanger Rods as shown in the figure. Choose either Double Connector B or Double Connector C, depending on the spacing of the rails.

    Hanger Rod can be attached by combining Overhead Hanger with the center hole of Double Connector C.

    Fix the Hanger Rod by Correct Method on the left figure to prevent shaking for front, rear, left, and right. Hanger Rod should be installed within 1.5 m (59″) interval.

    Either Overhead Hanger A or Overhead Hanger B (for last-in) is available.

    Rails

    Product Codes

    Silver

    White

    SizeProduct Code
    SilverWhite
    1.82 m (72″)0023002700230067
    2.00 m (79″)0023002600230068
    2.50 m (98″)0023002500230069
    2.73 m (107″)0023002400230070
    3.00 m (118″)0023002300230071
    4.00 m (157″)0023002200230072
    Curved Rail
    (180mm R
    /7.1″R)    		0.5 m x 0.5 m
    (20″ x 20″)    		3001059430010596
    1.0 m x 1.0 m
    (39″ x 39″)    		3001059530010597

    Parts List

    Product NameProduct Code
    RollersNew Delac Roller
    (8 pieces per strip)
    		Natural00210027
    New Delac Noiseless
    Roller
    (8 pieces per strip)
    		Natural00210188
    New Delac One-way
    MG Carrier    		Natural00210053
    New Delac Noiseless
    One-way MG
    Carrier    		Natural00210190
    New Delac
    NN Roller
    (for last-in)    		00210008
    C Roller Link
    (8 pieces per strip)
    		00010224
    CC Roller Link
    (8 pieces per strip)
    		00010225
    One-way
    MG Carrier    		Natural00010297
    SC Last-in Roller00010182
    SC Last-in
    MG Carrier    		00010250
    SC Last-in One-way
    MG Carrier    		00010295
    BracketsOverhead Hanger A00230006
    Overhead
    Hanger B
    (for last-in)
    		Silver00230003
    White00230075
    Product NameProduct Code
    Other
    Parts    		Splice00230009
    Adjustable
    Hanger
    Rod A
    		A170
    (130–170 mm
    /5.1″–6.7″)    		Silver00290034
    White00290038
    A250
    (170–250 mm
    /6.7″–9.8″)    		Silver00290036
    White00290039
    A400
    (245–400 mm
    /9.6″–16″)    		Silver00290017
    White00290040
    A700
    (395–700 mm
    /16″–28″)    		Silver00290016
    White00290041
    A1100
    (595–1,100 mm
    /23″–43″)    		Silver00290015
    White00290042
    A1600
    (845–1,600 mm
    /33″–63″)    		Silver00290014
    White00290043
    Fixed
    Hanger
    Rod
    		150
    (150 mm/5.9″)    		Silver00230083
    White00230084
    250
    (250 mm/9.8″)    		Silver00230085
    White00230086
    350
    (350 mm/14″)    		Silver00230087
    White00230088
    500
    (500 mm/20″)    		Silver00230089
    White00230090
    Product NameProduct Code
    BracketsWall
    Bracket A
    		Silver00230012
    White00230076
    Wall
    Bracket B
    		Silver00230010
    White00230077
    Special Wall
    Bracket
    		Silver00230011
    White00230078
    Double Connector B
    		00230004
    Double Connector C
    		Silver30011419
    White30011420
    T Type Curved Connector
    		00230002
    Curved
    Connector B
    		Silver00230005
    White00230079
    Single Bracket
    		Silver00230015
    White00230080
    Ceiling Single
    Bracket A
    		Silver00230014
    White00230081
    End
    Stop    		End Stop
    		Silver00230016
    White00230082
    Last-in
    Intermediate Stop
    		3000904
