Home / Products / Selfie
Functional Curtain Tracks
Selfie
Curving flexibility.
Smooth & rollers.
Features
Features

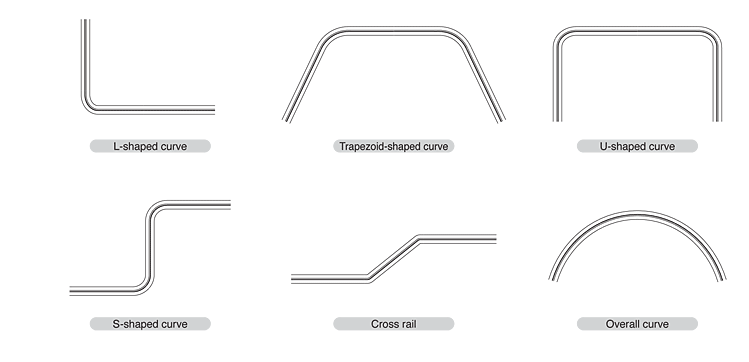

Curving flexibility.

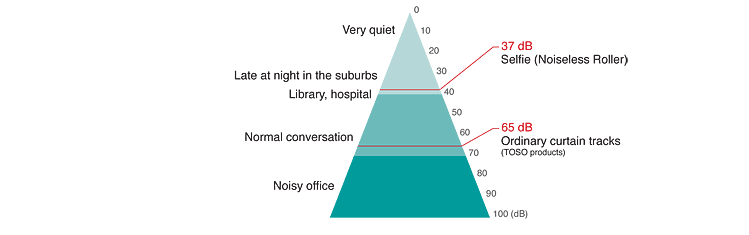

Smooth and quiet rollers.
Window Treatment
Exceptionally easy installation.
- The rail is vertically symmetrical and not direction-sensitive,resulting in easier, more efficient installation.
- The horizontally symmetrical I-shaped design makes the bend easy to undo.

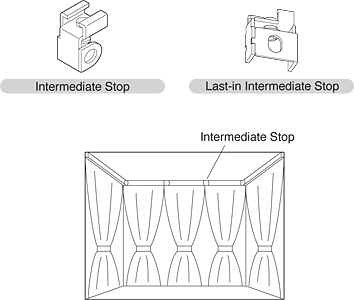

Use Intermediate Stop or Last-in Intermediate Stop for styled curtains.
Selfie Last-in Intermediate Stop Installation Method
- Remain the screw loosened,fit the Last-in Intermediate Stop from underside of curtain rail as shown
- Turn it along with the rail and tighten the screw.
Installation
Basic Installation Curving Method
At the rail bending point, align the 0°
point of the bender with the end of the
clamp and secure
Hold the bender and the rail and gradually
bend the rail to the graduation mark of
the desired angle
| Window type | Attachment type | L (Total rail length) | M (Bending point) | |
 | Single attachment | R115 use | (A + B + B) –239 mm (9.4″) | B –150 mm (5.9″) |
| R55 use | (A + B + B) –187 mm (7.4″) | B –90 mm (3.5″) | ||
| Double attachment | Exterior side (R115 use) | (A + B + B) –239 mm (9.4″) | B –150 mm (5.9″) | |
| Interior side (R55 use) | (A + B + B) –427 mm (16.8″) | B –150 mm (5.9″) | ||
 | Single attachment | R115 use | (A + B + B) –146 mm (5.7″) | B –107 mm (4.2″) |
| R55 use | (A + B + B) –133 mm (5.2″) | B –72 mm (2.8″) | ||
| Double attachment | Exterior side (R115 use) | (A + B + B) –146 mm (5.7″) | B –107 mm (4.2″) | |
| Interior side (R55 use) | (A + B + B) –341 mm (13.4″) | B –142 mm (5.6″) | ||
 | Single attachment | R115 use | (A + B + B) –138 mm (5.4″) | B –97 mm (3.8″) |
| R55 use | (A + B + B) –133 mm (5.2″) | B –72 mm (2.8″) | ||
| Double attachment | Exterior side (R115 use) | (A + B + B) –138 mm (5.4″) | B –97 mm (3.8″) | |
| Interior side (R55 use) | (A + B + B) –352 mm (13.9″) | B –157 mm (6.2″) | ||
Using a Partial Bender
- This is useful for making partial curves for curtain returns
at both ends of a bay window curved rail to prevent light filtering into the room. - Insert the end of the rail into the bender.
- Slowly bend the rail on your.
Materials and Finishes
| Parts | Material | Finish | |
| Rail | Aluminum alloy extrusion material | Alumite, Alumite umber, Alumite white, Alumite warm white | |
| Roller | Plate | Hard polyethylene | – |
| Wheel | Acetal resin | ||
| Oval ring | Stainless steel | ||
| Parts | Material | Finish | |
| End Cap | Plate | Hard polyethylene | – |
| Stop plate | Steel | ||
| Oval ring | Stainless steel | ||
| Bracket | Body | Steel | – |

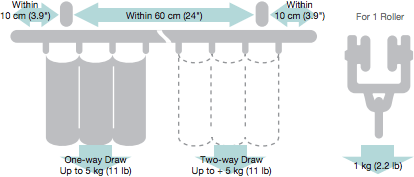

Bracket Installation Interval and Allowable Curtain Load

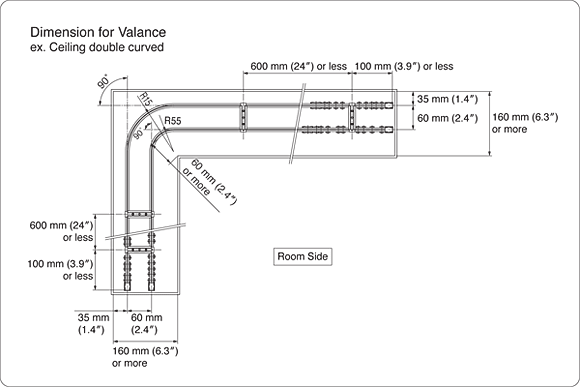

Installation Dimensions
Ceiling Attachment
Easy Snap Single Bracket
Bracket width = 18 mm (.71")
Ceiling Single Bracket
Bracket width = 14 mm (.55")
Easy Snap Ceiling Double Bracket
Bracket width = 19 mm (.75")
Ceiling Double Bracket
Bracket width = 18 mm (.71")
Last-in Intermediate Stop
Wall Attachment
Single Bracket
Bracket width = 18 mm (.71")
Extra Double Bracket
Bracket width = 24 mm (.94")
Double Bracket
Bracket width = 18 mm (.71")
Valance Double Bracket
Bracket width = 18 mm (.71")
Rails
Selfie Rails
Silver
Umber
White
Warm white
Selfie
Selfie Rails
| Size | Product Code | |||
| Silver | Umber | White | Warm white | |
| 1.82 m (72″) | 02330097 | 02330036 | 02330200 | 02330030 |
| 2.00 m (79″) | 02330098 | 02330037 | 02330201 | 02330031 |
| 2.73 m (107″) | 02330099 | 02330038 | 02330202 | 02330032 |
| 3.00 m (118″) | 02330100 | 02330039 | 02330203 | 02330033 |
| 3.64 m (143″) | 02330101 | 02330040 | 02330204 | 02330034 |
| 4.00 m (157″) | 02330102 | 02330041 | 02330205 | 02330035 |
New Valance Rail
New Valance Rails
| Size | Product Code |
| Warm White | |
| 2.37 m (93″) | 02330051 |
| 3.37 m (133″) | 02330052 |
Parts List
| Product Name | Product Code | ||
| Rollers | Roller (8 pieces per strip)  | Natural | 02330107 |
| Umber | 02330019 | ||
| Warm white | 02330020 | ||
MG Carrier | Natural | 02330108 | |
| Umber | 02330021 | ||
| Warm white | 02330022 | ||
| One-way MG Carrier  | Natural | 02330109 | |
| Umber | 02330023 | ||
| Warm white | 02330024 | ||
Noiseless Roller | Natural | 30009780 | |
Noiseless MG Carrier | Natural | 30009781 | |
| Noiseless One-Way MG Carrier  | Natural | 30009782 | |
| Brackets | Single Bracket | Silver | 02330111 |
| Umber | 02330001 | ||
| Warm white | 02330002 | ||
Double Bracket | Silver | 02330112 | |
| Umber | 02330003 | ||
| Warm white | 02330004 | ||
| Extra Double Bracket  | Silver | 02330113 | |
| Umber | 02330076 | ||
| Warm white | 02330077 | ||
| Valance Double Bracket  | Warm White | 02330006 | |
| Easy Snap Ceiling Single Bracket  | Silver | 02330116 | |
| Umber | 02330055 | ||
| Warm white | 02330054 | ||
| Product Name | Product Code | |||
| Other Parts | Adjustable Hanger Rod B  | B400 (250–400 mm/ 9.8″–16″) | Umber | 00290013 |
| White | 00290026 | |||
| B700 (400–700 mm/ 16″–28″) | Umber | 00290012 | ||
| White | 00290025 | |||
| Adjustable Hanger Rod A  | A170 (130–170 mm/ 5.1″–6.7″) | Silver | 00290034 | |
| White | 00290038 | |||
| Warm white | 00290035 | |||
| A250 (170–250 mm/ 6.7″–9.8″) | Silver | 00290036 | ||
| White | 00290039 | |||
| Warm white | 00290037 | |||
| A400 (245–400 mm/ 9.6″–16″) | Silver | 00290017 | ||
| White | 00290040 | |||
| Warm white | 00290030 | |||
| A700 (395–700 mm/ 16″–28″) | Silver | 00290016 | ||
| White | 00290041 | |||
| Warm white | 00290031 | |||
| A1100 (595–1,100 mm/ 23″–43″) | Silver | 00290015 | ||
| White | 00290042 | |||
| Warm white | 00290032 | |||
| A1600 (845–1,600 mm/ 33″–63″) | Silver | 00290014 | ||
| White | 00290043 | |||
| Warm white | 00290033 | |||
| Curve Bender 55R |  | 02330028 | ||
| Curve Bender 115R |  | 02330029 | ||
| Partial Bender | 00950027 | |||
| Product Name | Product Code | ||
| Brackets | Ceiling Single Bracket  | Silver | 02330114 |
| Umber | 02330007 | ||
| Warm white | 02330008 | ||
| Easy Snap Ceiling Double Bracket  | Silver | 02330117 | |
| Umber | 02330057 | ||
| Warm white | 02330056 | ||
| Ceiling Double Bracket  | Silver | 02330115 | |
| Umber | 02330009 | ||
| Warm white | 02330010 | ||
Wall Bracket | Silver | 02330118 | |
| Umber | 02330011 | ||
| Warm white | 02330012 | ||
Overhead Hanger | Silver | 02330119 | |
| Umber | 02330025 | ||
| Warm white | 02330026 | ||
Corner Support | Warm White | 02330014 | |
| End Cap | End Cap | Natural | 02330110 |
| Umber | 02330015 | ||
| Warm white | 02330016 | ||
| Other Parts | Last-in Intermediate Stop |  | 30010766 |
| Intermediate Stop  | Natural | 02330018 | |
| Joint Pin |  | 02330027 | |
