Functional Curtain Tracks
New Delac with Wave Style Components
Smooth rollers
Wave Style

Features
Features
New Delac with Wave Components
Smooth rollers
- The Wave Style creates a feeling of naturally flowing fabric.
- The curtains are draped in gentle waves about 1.5 times the width of window, resulting in a continuity of pattern and texture.
- There is a natural wave in the curtains at intervals of 80 mm (3.2″).
- With its tape and accessories, it creates natural, elegant symmetrical waves.
*Pleating cord keeps waves evenly shaped, making the curtain rich and stylish.
Wave Style Structure
Convenient
- Even number of hooks used in all cases.
- Rollers spaced at 80 mm (3.2″) intervals to produce waves.
- Both left and right sides of curtains always end in troughs
*To make appealing wave style curtains, use Flat Tape and Pleating Cord.
*Fabrics with soft weft threads and stiff warp threads such as plain weaves are advisable (Blackout fabrics are not recommended).

Materials and Finishes
Rail Section

Parts | Material | Finish | |
Rail | Silver | Aluminum alloy extrusion material | Alumite |
Umber | Alumite umber | ||
Black | Alumite black | ||
White | Alumite white | ||
Warm White | Alumite warm white |
Parts | Material | Finish | |
Roller | Nutural | High density polyethylene | – |
Pleating Cord | White | Cord: Chemical fiber Bush: Polyacetal | – |

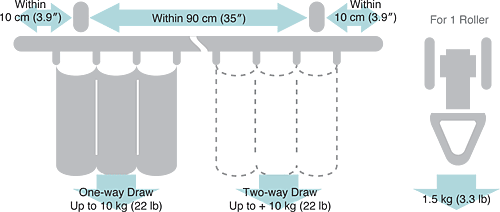

Bracket Installation Interval and Allowable Curtain Load
Installation

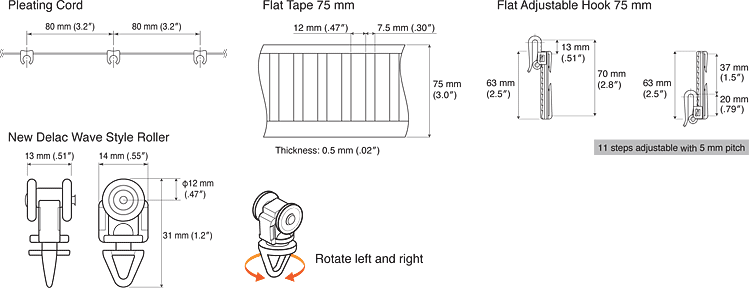

Wave Style Components
Caps Dimension

Wave Style Roller and Pleating Cord Installation
Installation
Insert the Pleating Cord into the New Delac Wave Style Roller.

Wave Style Curtain
Installation

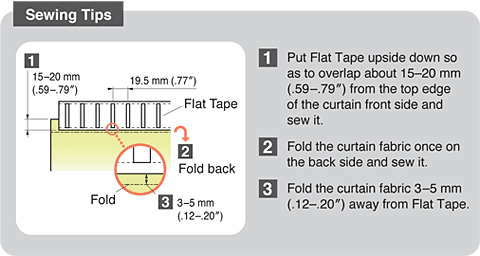

How to Sew Curtain with Flat Tape

The Flat Tape for finishing the curtain wave appropriately.

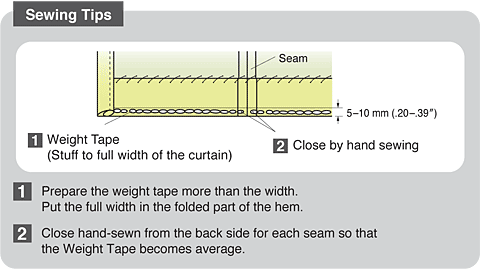

How to Sew Curtain with Weight Tape

Put the Weight Tape in the curtain hem makes a appropriate curtain wave. The Weight Tape is flexible, so it will be finished in a natural wave.

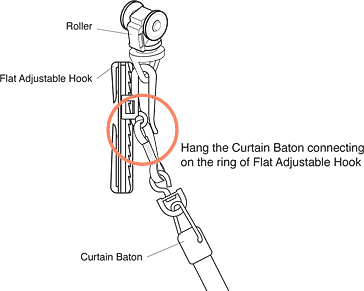

Curtain Baton (Option)
Installation
Using the Curtain Baton, the curtain opens /closes smoothly. The Curtain Baton has the following effects, keep the shape of the curtain and prevent dirt.


Installation Dimensions
Installation

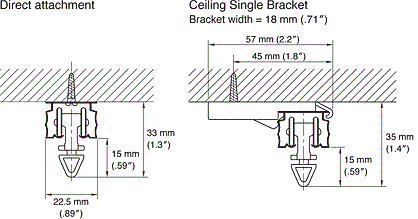

Ceiling Attachment

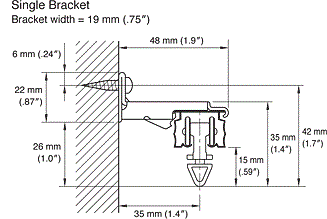

Wall Attachment

Parts List
Product Name | Product Code |
New Delac Wave Style Roller Set (100 m) ![]() | 00210355 |
Flat Tape 75 mm (50 m) ![]() | 00400115 |
Flat Adjustable Hook 75 mm (300 pcs) ![]() | 00340246 |
Product Name | Product Code | |
Weight Tape Stainless 14 (100 m) ![]() | 30004957 | |
Curtain Baton A White ![]() | 450 mm (18″) | 30010767 |
700 mm (28″) | 30010768 | |
900 mm (35″) | 30010769 | |
1,200 mm (47″) | 30010770 | |
1,500 mm (59″) | 30010771 |
