Decorative Curtain Tracks
Venewood AT
Motorized
Exceptionally quiet
Features
Features
Unique Features
Motorized wooden blinds
Two separate motors for lift/lowering and tilting operations.

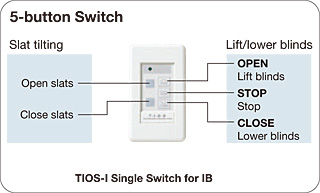

Two motors allow you to control lift/lowering and tilting operations separately. With the five-button switch, a meticulous slat control is possible (see the right). A synchronous motor for a tilting operation enables two or more blinds to keep the same slat degree.
A Wide Variety of Slats and Ladder Tapes
12 colors of 50 mm (2.0″) Slats and 15 colors of Ladder Slats are available.
Bigger than ever
Up to 2400 mm (94″) in width, 2960 mm (117″) in height and 6 m² (7.2 yd²) in area.
Automatic safety stop
The blind stops automatically when the bottom rail touches an obstruction.
Exceptionally quiet
A smooth and quiet operation without grating noise.
No troublesome wiring
Designed to select simultaneous and select operations without using any optional parts.
Easy height adjustment
Its easy height adjustment function allows you to set the same bottom position of two or more blinds.
Dimensions and Color Options
Dimensions
| Product Name | Venewood AT 50 T Ladder Tape Type | Venewood AT 50 Ladder Cord Type |
| Slat Width | 50 mm (2.0″) | |
| Product Width | 1000–2400 mm (39–94″) | |
| Product Height | 500–2960 mm (20–117″) | |
| Maximum Area | 6 m² (7.2 yd²) or less | |
Number of Bracket
| Product Name | 1000– 1200 mm (39–47″) | 1210– 1600 mm (48–63″) | 1610– 2300 mm (63–91″) | 2310– 2400 mm (91–94″) | Number | 2 | 3 | 4 | 5 |
Motor Specifications
| Power Source Voltage | V | AC 100 | |
| Frequency | Hz | 50/60 | |
| Power Consumption | Operation | W | 40 |
| Standby | W | 1 or less | |
| Operating Voltage | V | DC 12 | |
| Operating Consumption | mA | 40 or less | |
| Operating Temperature Range | °C | 0–50 (without condensation) | |
| Rated Time | min | Continuous (Opening/closing) 5 (Lifting/lowering) | |
| Average Operating Time | sec/m | 29 | |
Note: AC 100 V only.

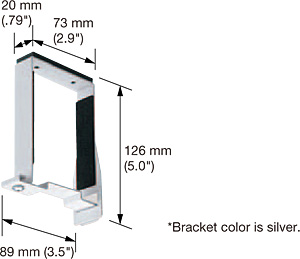

Bracket
| Venewood AT 50 T Ladder Tape Type | Venewood AT 50 Ladder Cord Type |
| H X 0.1 + 127 mm (5.0″) | H X 0.1 + 127 mm (5.0″) |
W 2000 mm (79″) X H 3000 mm (118″): 19 kg (42 lb)

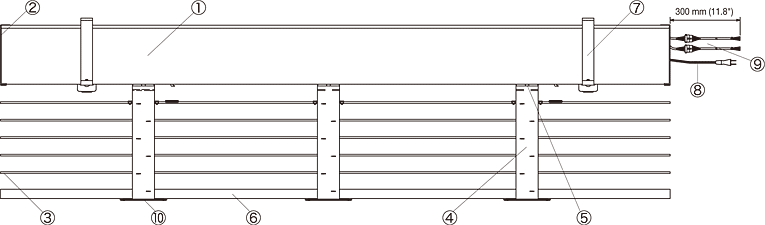

Structure Drawing
Structure
| No. | Product Name | Materials/Specifications | Color |
| ① | Head Rail | Aluminum | Silver |
| ② | Side Cover | Molded resin | Natural |
| ③ | Slat | Basswood | – |
| ④ | Ladder Cord, Ladder Tape | Chemical fiber | – |
| ⑤ | Lift Tape | Chemical fiber | White |
| ⑥ | Bottom Rail | Basswood | – |
| ⑦ | Bracket | Steel | Silver |
| ⑧ | Power Supply | VCTF 0.75 X 2C (1 m/39″) | White |
| ⑨ | Connecting Cord | AWG 24 X 6C (0.3 m/12″) | White |
| ⑩ | Bottom Cover | Zinc die-casting | – |

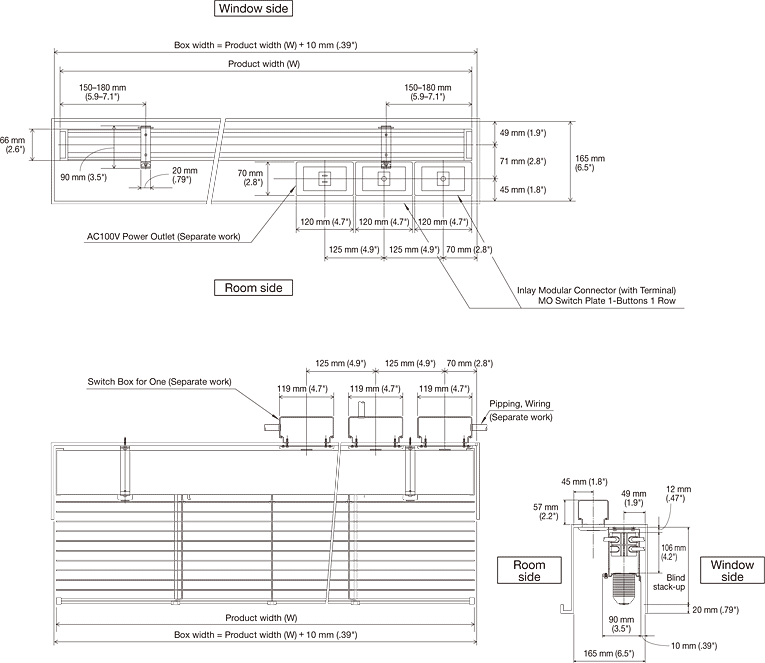

Installation Dimensions & Diagram
Structure
Structure Drawing
Structure
Single Operation (3-Button)
Basic wiring Diagram

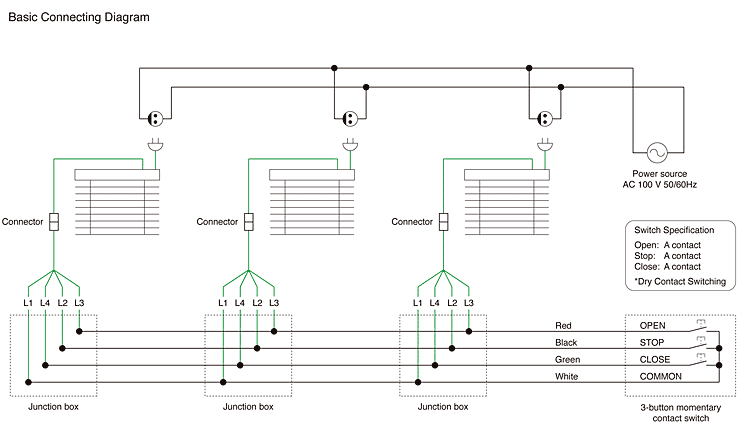

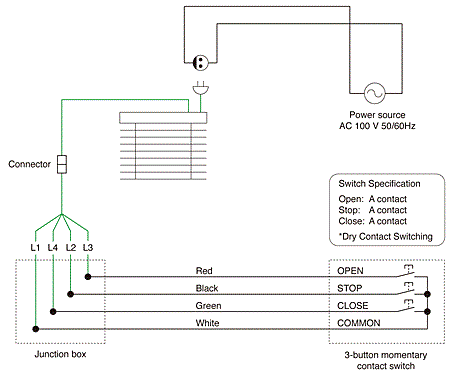

Basic connecting Diagram

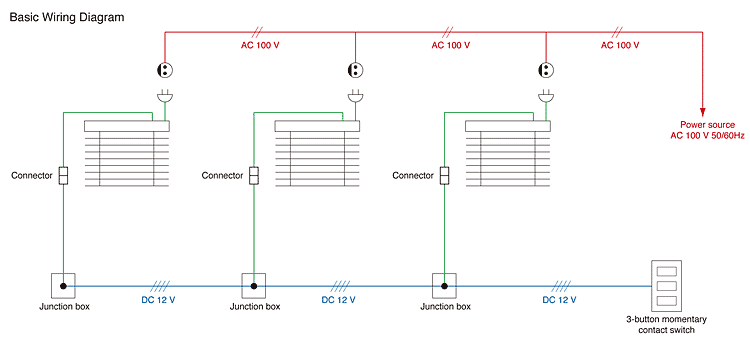

Simultaneous Operation (3-Button)

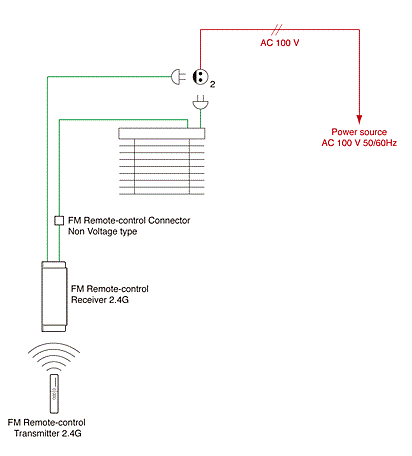

FM Remote-Control Receiver 2.4G

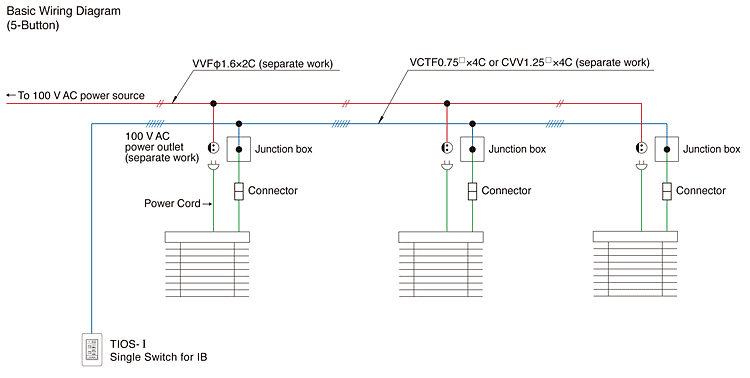

Basic wiring Diagram

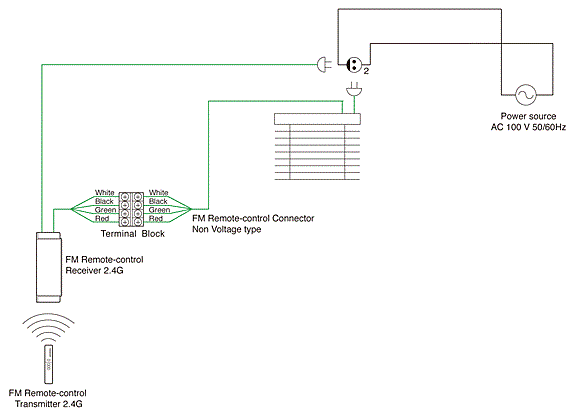

Basic connecting Diagram

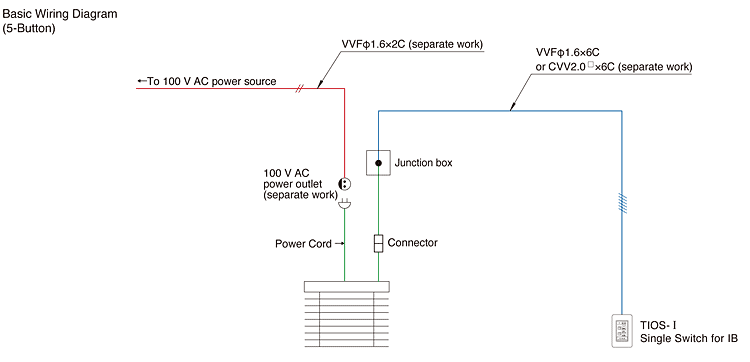

Single Operation (5-Button)
Simultaneous Operation (5-Button)

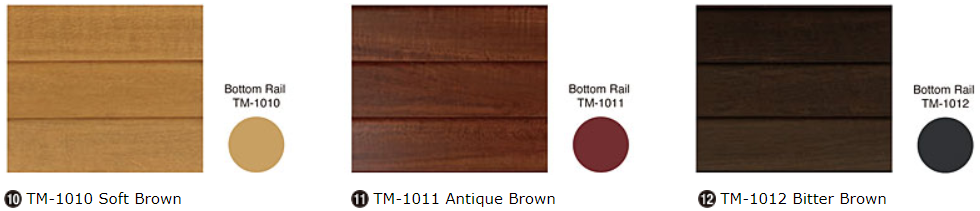

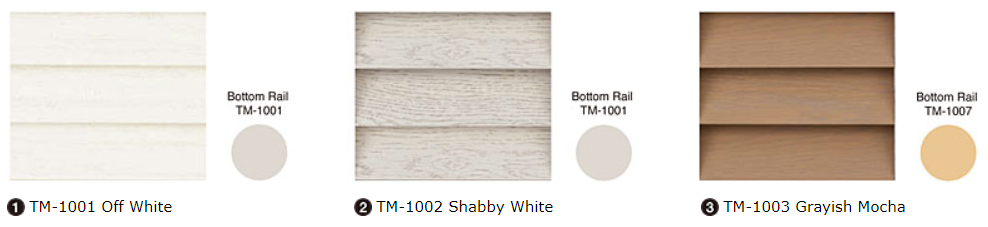

Wood Slit Color List
Ladder Tape List
