Home / Products / CM2000

Functional Curtain Tracks

CM2000

Neat stacking

Wave Style

Features

Features

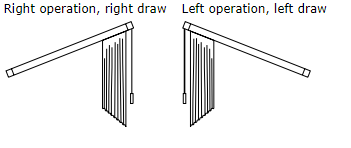

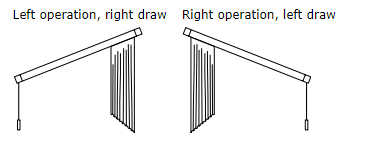

Four operational choices are available.

Precautions when drawing a curtain from a low position.

When the curtain is closed

When the curtain is open

Precautions:

  • Make sure the bottom hem of the curtain does not drag along the floor.
  • Use a Cord Stopper to stop the curtain at a desired position.
  • *Using the attachment screws, secure the Cord Stopper in a position where it is easy for a traverse cord to stop.

For Wave Style

The Wave Style creates a feeling of naturally flowing fabric. The curtains are draped in gentle waves about 1.5–2.2 times the width of window, resulting in a continuity of pattern and texture. There is a natural wave in the curtains at intervals of 80 mm (3.2″). With its tape and accessories, it creates natural, elegant symmetrical waves.

Installation

Installation

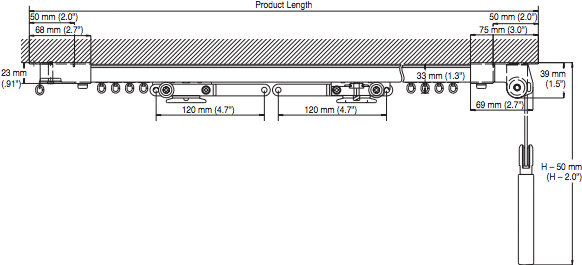

Installation Dimensions

Ceiling Attachment

Direct attachment

Front

Direct attachment

Side

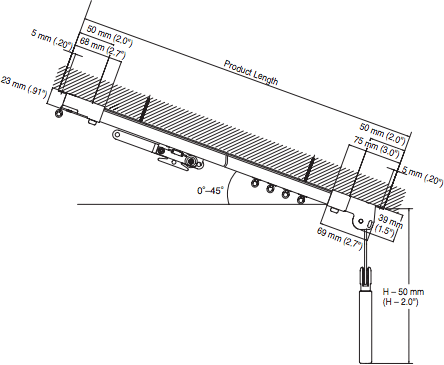

Direct attachment (Slope)
Front

Direct attachment (Slope)
Side

Wall Attachment

Single Bracket attachment

(Bracket width: 19 mm/.75") (Cord Draw)

Single Bracket attachment

(Bracket width: 19 mm/.75") (Slope)

Rails

CM2000 Rails

White Grain

SizeProduct Code
White
6.01 m (237″)65150001

Materials and Finishes

PartsMaterialFinish
RailAluminum alloy
extrusion material
Alumite white

Applicable Range for Slanting Window

Max. slantingMax. installation heightMax. curtain weight (*1)
45°7 m (276″)5 kg (11 lb)

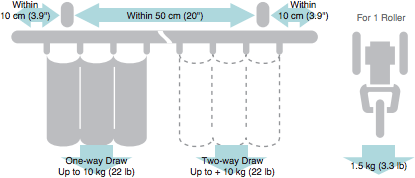

Bracket Installation Interval and Allowable Curtain Load

Parts List

Product NameProduct Code
Master Roller
64910110
Pilot Roller
00510198
New Delac Roller
(8 pieces per strip)
00210027
New Delac
Wave Style Roller Set
(100 m)
00210355
Ceiling Single Bracket
00210326
Single Bracket
00210324
New Delac
Intermediate Stop
00210134
Single Pulley
6697002
Product NameProduct Code
Double Pulley
66970021
Traverse Cord 2.8 mm
DIA.
White00580009
Tension Weight
57820001
Cord Stopper
58430004

Notes: Please use New Delac brackets. Only single brackets are recommended for wall attachment.

See features and optional functions in detail in the catalog
