Functional Curtain Tracks
Suite
Smooth rollers
Noise reducing rail
Unique Features
Unique Features

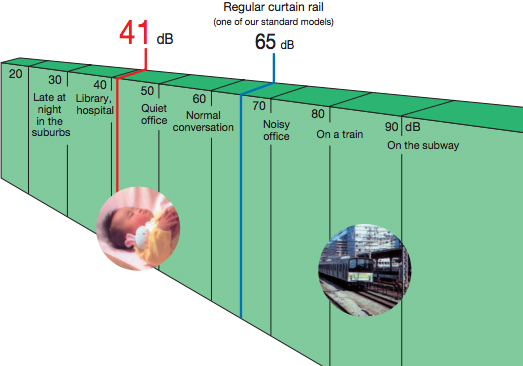

Smooth & Noice reducing rail.
Noise level meas ured at a distance of 50 cm (20″) from a 2 m (79″) rail with rollers or sliders tilted at an angle of 15 degrees.
Installation Dimensions
Ceiling Attachment
Direct attachment
Ceiling Single Bracket
Bracket width = 18 mm (.71")
Ceiling Double Bracket
Bracket width = 18 mm (.71")
Wall Attachment
Single Bracket
Bracket width = 19 mm (.75")
Double Bracket
Bracket width = 19 mm (.75")
Precautions when installing:
- Do not damage the groove in the rail. If damaged, rollers will not run smoothly. (When making holes with a drill, fill the groove with a plastic pipe or similar materials to avoid damaging the rail groove. Also be sure to screw straight.)
- Make very sure that chips and dust do not get inside the rail when making holes in it and during installation. If they do, remove them using an air compressor or some other means.
Rails
Suite Rails
White
White
White
| Size | Product Code | ||
| Silver | White | ||
| 1.82 m (72″) | 03220001 | 03220010 | |
| 2.00 m (79″) | 03220002 | 03220011 | |
| 2.73 m (107″) | 03220003 | 03220012 | |
| 3.00 m (118″) | 03220004 | 03220013 | |
| 3.64 m (143″) | 03220005 | 03220014 | |
| 4.00 m (157″) | 03220006 | 03220015 | |
| Curved Rail (180 mmR/7.1″R) | 0.50 m x 0.50 m (19.7″ x 19.7″) | 03220007 | 03220016 |
| 1.00 m x 1.00 m (39.4″ x 39.4″) | 03220008 | 03220017 | |
| Overlap Rail | 0.50 m (19.7″) | 03220009 | 03220018 |
Materials and Finishes
| Parts | Material | Finish | |
| Rail | Silver | Aluminum alloy extrusion material | Alumite finish Special fluorocarbon resin surface treatment |
| White | Alumite white finish Special fluorocarbon resin surface treatment | ||
| Parts | Material | Finish | |
| Slider | Plate | Hard polyethylene | – |
| Wheel | |||
| End Stop | Body | – | |
| Bracket | Body | Steel | Painted finish |

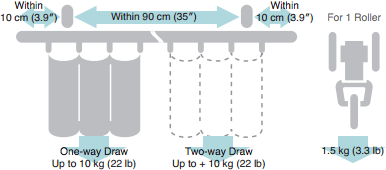

Bracket Installation Interval and Allowable Curtain Load
Parts List
| Product Name | Product Code | ||
| Sliders | Slider | 03220053 | |
MG Carrier | 03220032 | ||
One-way MG Carrier | 03220033 | ||
| End Stops | Winpia End Stop | Natural | 01640020 |
Return Aid for End Stop | 00530063 | ||
| Product Name | Product Code | ||
| Splice | Winpia Splice | 01640022 | |
| Product Name | Product Code | |||
| Brackets | Single Bracket White | Silver | 01640004 | |
| White | 03220034 | |||
Double Bracket White | Silver | 01640007 | ||
| White | 03220035 | |||
Ceiling Single Bracket White | Silver | 01640010 | ||
| White | 03220036 | |||
Ceiling Double Bracket White | Silver | 01640013 | ||
| White | 03220037 | |||
Note: Brackets are common to the Winpia.
